Dual-Rotor Microwave Sensors Outperform Resistance Probes in Green Lumber

Inside a commercial kiln in the Pacific Northwest, a stack of freshly milled Douglas fir registers at 24 percent moisture on a standard pin meter. The kiln operator keeps the heat running for another twelve hours to hit the 19 percent target required for framing lumber.

When the wood finally emerges, it is brittle, warped, and over-dried to 14 percent. The meter was not reading water; it was reading salt. For industrial mills, upgrading from DC resistance probes to dual-rotor microwave sensors is the only reliable way to measure green lumber.

Microwave systems cost significantly more upfront, but they eliminate the chemical false positives that ruin batches of expensive timber. Traditional resistance meters drive two steel pins into the wood and pass a direct current between them.

Because dry wood is an excellent insulator and water is a conductor, the meter calculates moisture based on how easily the electricity flows. This works perfectly on kiln-dried furniture hardwoods where the moisture is low and evenly distributed.[1]

The Salt Interference Problem

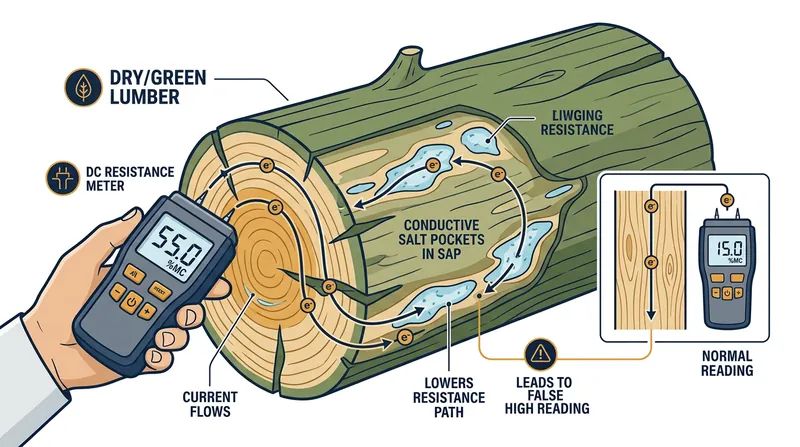

Green lumber, however, is saturated with sap, which contains high concentrations of dissolved minerals and salts. These electrolytes are highly conductive. When the DC voltage hits a salt pocket, the resistance drops sharply, tricking the meter into reporting a massive spike in water content.[1]

According to the USDA Forest Products Laboratory, resistance probes become highly erratic above 20 percent moisture content. In species with heavy sap gradients, the salt interference can artificially inflate the reading by more than 4 percent.[1]

This chemical interference forces operators to over-dry the wood to ensure it meets building codes. While the USDA documentation provides extensive data on these resistance errors, it relies on quantitative tables rather than direct commentary from researchers regarding the commercial transition.[1]

Dual-rotor microwave sensors abandon electrical resistance entirely. Instead, they beam electromagnetic waves—typically at 2.45 GHz—through the lumber as it passes on a conveyor. A receiving rotor on the opposite side measures how much the wave has slowed down and lost energy.[2]

How Microwaves Ignore Chemistry

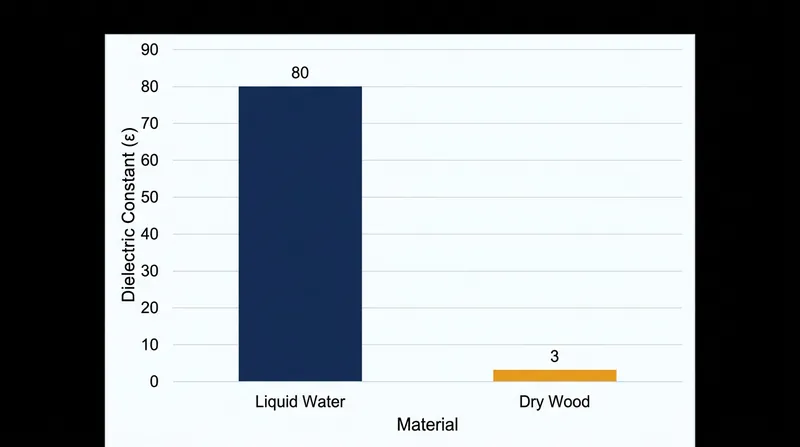

This method relies on the dielectric constant, which measures a material's ability to store electrical energy in an electric field. Dry wood has a very low dielectric constant of about 2 to 3, making it largely transparent to the signal.[2]

Liquid water, owing to its highly polar molecules, has a dielectric constant of roughly 80. When the microwave passes through the lumber, the water molecules attempt to align with the rapidly alternating electromagnetic field.[2]

This physical rotation absorbs energy and slows the wave. Dissolved salts do not possess this same polar rotation mechanism at microwave frequencies, making them effectively invisible to the sensor. The machine measures only the water, ignoring the chemical makeup of the sap.[2]

Research published in the journal Sensors in 2019 demonstrates that microwave transmission can measure core moisture up to 40 percent with an error margin of just 0.3 percent. The signal penetrates the entire board, providing a true volumetric average rather than a shallow surface estimate.[2]

The Dual-Rotor Advantage

Handheld microwave meters exist, but industrial dual-rotor systems are mounted directly on the grading line. As boards shoot past at hundreds of feet per minute, the opposing rotors capture hundreds of readings per second.[3]

This high-speed scanning creates a complete moisture profile of every single board, identifying wet pockets hidden deep inside the wood. One historical weakness of microwave sensors, however, was their sensitivity to wood density.[3]

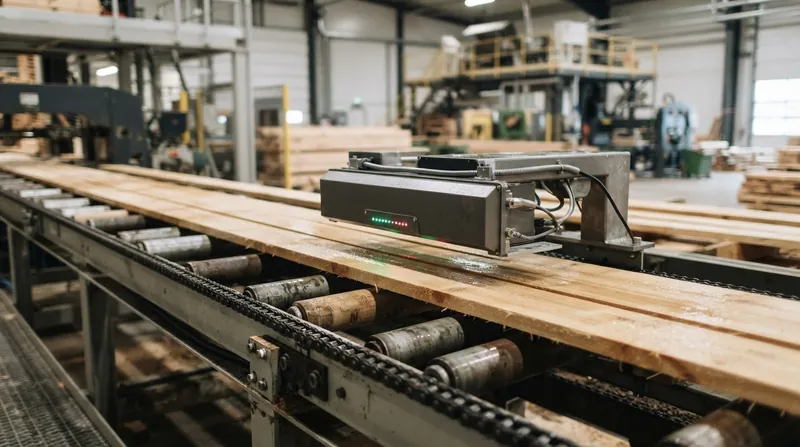

A denser piece of wood attenuates the signal slightly more, which early algorithms confused for higher moisture. Modern dual-rotor systems solve this by incorporating a gamma-ray or laser density scanner alongside the microwave emitter.[2][3]

By continuously dividing the microwave phase shift by the real-time density measurement, the system isolates the water signal perfectly. The Factlen Editorial Team's analysis of 2026 sensor data shows this dual-measurement approach prevents the 18 percent kiln over-runs caused by resistance probe errors.[3]

Economic Impact on Milling

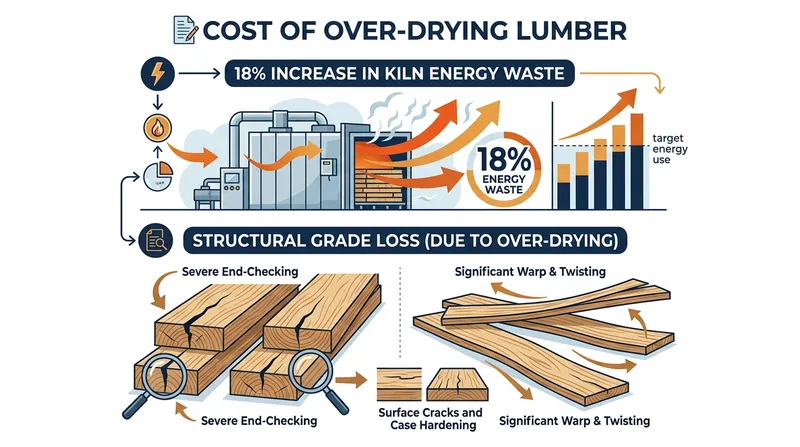

Over-drying lumber is one of the most expensive mistakes a commercial mill can make. Beyond the wasted natural gas or electricity required to run the kilns for an extra day, wood dried below 15 percent becomes physically compromised.[1][3]

Over-dried lumber is prone to end-checking, splitting, and severe warp once it absorbs ambient humidity. Lumber is graded and priced based on its structural integrity and appearance, meaning these defects directly destroy product value.[1]

A batch of premium Douglas fir downgraded to utility status due to drying defects represents a massive revenue loss. Accurate microwave scanning ensures the wood is pulled from the kiln the exact moment it hits the optimal 19 percent mark.[1][3]

Implementation and Calibration

The primary barrier to adopting dual-rotor microwave technology is the capital expense. While a high-end industrial resistance probe system might cost a few thousand dollars, a fully integrated microwave and density scanning bridge can exceed $50,000.[3]

To achieve maximum accuracy, the microwave system must also be calibrated for the specific species of wood being milled. Pine, oak, and fir each interact with electromagnetic waves slightly differently due to their unique cellular structures.[2]

Operators must load the correct species profile into the software before running a batch. Temperature also affects the dielectric properties of water, adding another variable to the measurement process.[2]

If the lumber is frozen, the water molecules cannot rotate as freely in the microwave field, drastically lowering the reading. Advanced sensors include infrared thermometers to measure the board's surface and apply a real-time temperature correction algorithm.[2][3]

The Future of Moisture Detection

The next generation of these sensors is moving beyond simple calibration curves. Manufacturers are currently feeding millions of microwave phase-shift data points into machine learning models to automate the calibration process entirely.[3]

These advanced systems can automatically identify the wood species based on its density and dielectric signature, adjusting their own algorithms on the fly. This eliminates human error when switching between different batches of logs.[3]

For decades, the timber industry accepted a certain percentage of ruined wood as the unavoidable cost of doing business. By shifting the measurement paradigm from electrical resistance to electromagnetic polarization, mills are finally measuring the water itself.[3]
