The 0.1 to 0.6 Hertz Range: How the Frequency of Ship Motion Actually Triggers Motion Sickness in Passengers

When naval architects and marine engineers draft the blueprints for a modern mega-ship, they are not just designing for buoyancy and fuel efficiency—they are actively negotiating with the human inner ear. The engineers who decide the dimensions of the hull and the tuning of the active fin stabilizers have a specific, measurable target to hit before the vessel ever leaves the dry dock. Their primary objective is to manipulate the ship's natural frequency of motion, pushing it safely outside a very narrow, highly nauseogenic window. If they fail, the vessel will naturally heave and roll at the exact rhythm that triggers a sensory mismatch in the human brain, turning a luxury vacation into a physiological ordeal [9].[9]

The feeling of seasickness is not simply a reaction to movement; it is a neurological crisis caused by conflicting data. When a passenger is inside an interior cabin, their visual system reports that the walls and floor are perfectly static. Simultaneously, the vestibular system—the fluid-filled semicircular canals and otolith organs in the inner ear—detects the continuous, rhythmic acceleration of the ocean [6]. This incongruent sensory information tricks the brain into assuming it has ingested a neurotoxin, prompting an involuntary nausea response to purge the stomach. But this response is not triggered by just any movement; it is highly dependent on the exact frequency of the oscillation.[6]

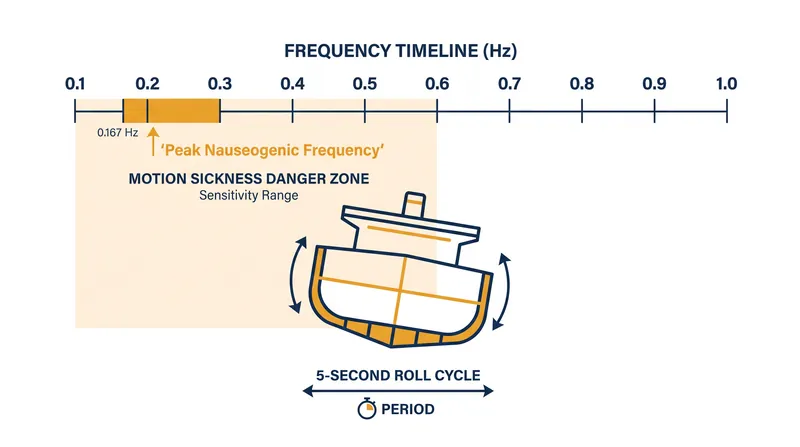

Since foundational aerospace studies in 1974 mapped the precise biological threshold for this sensory conflict, the data has remained remarkably consistent. The human body is uniquely vulnerable to slow, passive motion in the 0.1 to 0.6 Hertz (Hz) frequency range [6]. Within that window, the maximum sensitivity to motion sickness peaks sharply between 0.167 Hz and 0.2 Hz [1][5]. In practical terms, a frequency of 0.2 Hz equates to one full cycle of movement—rising and falling, or tilting side to side—every five seconds.[1][5][6]

This specific 0.2 Hz rhythm is devastating to the human equilibrium because it closely mimics the natural frequency of human walking and postural sway. At higher frequencies, such as the rapid vibration of a train or a jet ski, the brain easily filters out the mechanical noise. At much lower frequencies, like the gradual swaying of a skyscraper in the wind, the body seamlessly adapts. But when a cruise ship heaves or rolls at one cycle every five seconds, it continuously disrupts the brain's postural control centers, causing severe autonomic symptoms ranging from fatigue to massive vomiting [6].[6]

The challenge for marine engineers is that the natural roll frequency of a large ocean vessel often falls exactly into this biological danger zone. As maritime researchers detailing human performance at sea noted in their analysis for the Flanders Marine Institute, "Observing that the principal vertical frequency is approximately 0.2 Hz, one can readily understand why ships are so nauseogenic—this is very near the frequency where motion sickness is at its most sensitive" [8]. A ship's roll period is dictated by its beam (width) and its metacentric height. While a wider ship with a high metacentric height is incredibly stable and resistant to capsizing, it tends to snap back upright quickly, producing a short, stiff roll period of around five to six seconds. This mechanical stability inadvertently maximizes the exact 0.167 to 0.2 Hz frequency that guarantees passenger nausea [1][5].[1][5][8]

To solve this, naval architects rely on active fin stabilizers. Mounted 15 to 20 feet below the waterline on both sides of the hull, these large, retractable, wing-like appendages are controlled by gyroscopic sensors and hydraulic actuators. When the sensors detect a wave inducing a roll, the control unit automatically adjusts the angle of the fins. As water flows over them at cruising speed, the fins generate hydrodynamic lift that opposes the ship's motion. Crucially, these stabilizers do not just dampen the amplitude of the roll; they alter the frequency, stretching the roll period out to 10 or 12 seconds (0.1 Hz or lower), safely below the peak nauseogenic threshold [9].[9]

However, fin stabilizers are only highly effective against roll (side-to-side motion). They do very little to mitigate pitch (the bow-to-stern seesaw motion) or heave (the vertical up-and-down lift). Pitch and heave are primarily dictated by the ship's length relative to the wavelength of the ocean swells. If a 1,000-foot cruise ship encounters a series of massive swells spaced perfectly apart, the vessel will inevitably pitch. Research shows that vertical sinusoidal motion at 0.167 Hz is a primary driver of motion sickness, and even small heave motions can be severely exacerbated by residual pitch and roll [1][3].[1][3]

The physiological impact of this 0.2 Hz motion can linger long after the voyage ends. After spending days or weeks adapting to the continuous rocking of the ship, the brain recalibrates its baseline for equilibrium. When passengers finally step ashore, they often experience Mal de Debarquement Syndrome (MdDS). A 2018 neurological review of the condition found that the vestibular system continues to expect the 0.2 Hz oscillation, creating a phantom sensation of swaying, bobbing, or gravity pulling that can persist for days, and in rare cases, months [7]. This neurological hangover proves just how deeply the ship's mechanical frequency rewires the human balance system.[7]

For travelers planning a voyage, understanding this frequency response offers a practical strategy for avoiding illness. The rotational acceleration that triggers the 0.2 Hz sensory mismatch is most severe at the extreme ends of the ship and on the highest decks. By booking a cabin midship and on a lower deck—as close to the vessel's natural center of gravity and pivot point as possible—passengers can significantly reduce their exposure to the nauseogenic acceleration forces [4]. While the frequency of the ship's motion remains constant throughout the vessel, the amplitude of that motion is minimized at the fulcrum.[4]

The battle against seasickness remains a continuous arms race between marine engineering and human biology. As cruise lines build increasingly massive vessels exceeding 200,000 gross tons, the physics of the hull naturally shift, requiring ever more sophisticated stabilization technology. Until engineers can completely isolate the passenger cabin from the hydrodynamic forces of the ocean, the 0.1 to 0.6 Hertz range will remain the invisible, unavoidable rhythm of the sea [2][9].[2][9]
