The Mechanics of the Flat Deck: How Active Fins and Gyroscopes Eliminate Seasickness on Modern Cruise Ships

Stepping onto a modern cruise ship feels like walking into a luxury resort, complete with martini bars, Broadway theaters, and serene spa retreats. But beneath the plush carpets and infinity pools lies a constant, invisible battle against the physics of the ocean. The sea inherently wants to roll the vessel with every passing swell, and the human vestibular system is notoriously quick to translate that motion into seasickness. Yet, passengers routinely sip their drinks and watch aerial acrobats while traversing 15-foot swells in the open Atlantic. How do these floating cities resolve the tension between a volatile ocean and a fragile human stomach?[1]

The answer isn't magic, nor is it simply a matter of building bigger boats. It is a sophisticated, real-time symphony of hydrodynamic and gyroscopic technologies working deep beneath the waterline. To understand how a 200,000-ton ship maintains a flat deck, you first have to understand the enemy: roll.

A ship experiences several types of motion, but the two most noticeable are pitch and roll. Pitch is the up-and-down seesaw motion of the bow and stern as the ship crests a wave. On modern mega-ships, pitch is largely mitigated by the sheer length of the hull, which spans across multiple wave crests at once. Roll, however—the side-to-side rocking motion—is the primary culprit behind motion sickness, and it requires active intervention to defeat.[1]

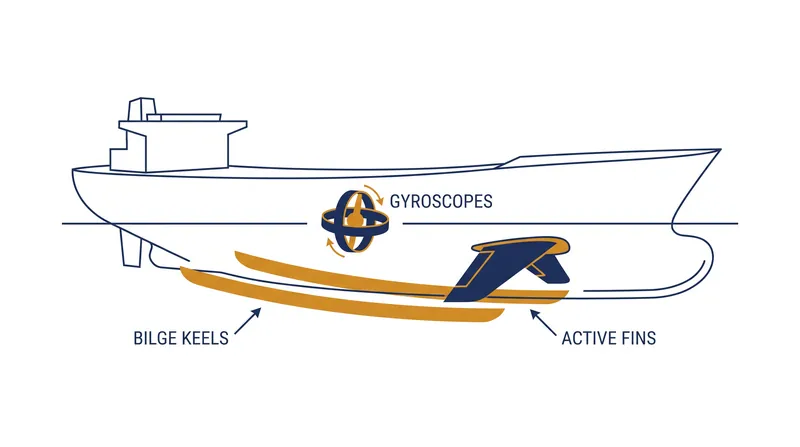

For decades, the maritime industry relied entirely on passive systems to dampen this motion. The most common of these, which are still welded onto virtually every cruise ship today, are bilge keels. These are long, fixed, fin-like steel plates attached along the curve of the hull where the bottom meets the sides.[1]

Bilge keels work by forcing the surrounding water to move with the ship as it rolls, creating turbulence and hydrodynamic drag that naturally slows the rocking motion. They are the ultimate reliable tool: they require no electricity, have no moving parts, and never break down. But passive systems have a hard limit. They can only react to the water, not anticipate it, and they lose significant efficacy in severe weather.[1]

Enter the active fin stabilizer, the undisputed workhorse of modern marine comfort. If you were to look at a cruise ship in dry dock, you would see these retractable, airplane-like wings protruding from the hull, well below the waterline. Unlike fixed keels, these fins are highly dynamic and constantly in motion.

When a wave attempts to tilt the ship to starboard, highly sensitive internal gyroscopic sensors instantly detect the shift in angle and velocity. A central computer calculates the exact counter-force needed and commands hydraulic actuators to pivot the fins in a fraction of a second.[1]

Because the ship is moving forward, water rushes over the tilted fins, generating hydrodynamic lift on one side of the vessel and downforce on the other. This active 'push back' perfectly opposes the energy of the wave. When calibrated correctly, active fins can eliminate up to 90 percent of a ship's roll while underway, transforming a turbulent crossing into a gentle glide.

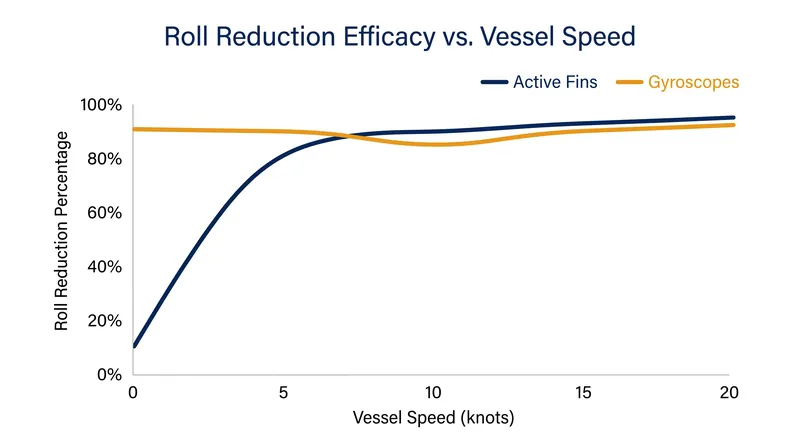

But there is a catch to this hydrodynamic wizardry: lift requires forward momentum. Just as an airplane cannot fly without airspeed, traditional active fin systems become highly ineffective when the ship slows down. Once a vessel drops below roughly six knots, the water flowing over the fins simply doesn't generate enough force to counteract the waves.

This creates what naval architects call a 'zero-speed vulnerability.' When a ship is anchored off a picturesque tender port in the Mediterranean, or slowly maneuvering through a scenic Alaskan fjord, the fins cannot generate lift. Without a secondary system, passengers would be left entirely exposed to the ocean's natural rhythm just as they are trying to enjoy the view.[2]

To close this gap, engineers introduced a new generation of stabilization at rest, utilizing massive internal gyroscopes and active anti-roll tanks. Active tanks use heavy-duty pumps to shift hundreds of tons of water from one side of the ship to the other. By timing this transfer to be perfectly out of phase with the incoming waves, the shifting weight artificially balances the vessel.

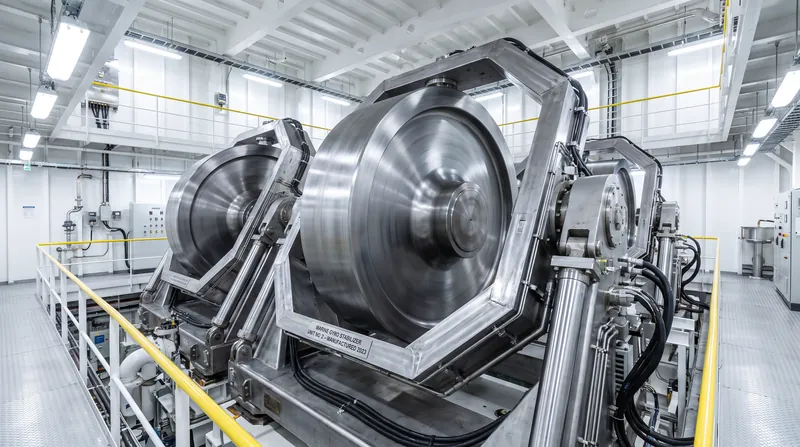

Gyroscopic systems take an entirely different, physics-bending approach. Housed deep within the engineering decks are massive spinning flywheels. When the anchored ship begins to roll, the gyroscope tilts fore and aft on its gimbals. This movement produces a powerful gyroscopic torque that physically resists the side-to-side motion of the hull.[1]

These zero-speed technologies are remarkably effective, capable of eliminating the vast majority of boat roll even when the vessel is completely stationary. The result is a seamless, invisible handoff: hydrodynamic fins smooth the journey across the open sea, while gyroscopes and active tanks flatten the deck once you reach your destination.[2]

Ultimately, the modern cruise experience is built entirely upon this foundation of stability. By conquering the roll, naval architects haven't just cured seasickness—they have unlocked the ability to build floating resorts. Without these hidden fins and spinning flywheels, the ice rinks, roller coasters, and high-wire acts that define today's ocean travel would be entirely impossible.[2]
