Wide Beams Shift the Center of Buoyancy Outward: Why 20-Deck Cruise Ships Do Not Capsize

Naval architects who design modern mega-ships face a strict physical ultimatum before a vessel ever leaves the shipyard. They must manipulate the hull's geometry so that the ocean pushes back harder than the wind pushes over. They prove this during the mandatory inclining test, shifting massive concrete weights across the deck to measure exactly how the hull fights a tilt.[1]

Standing on the twentieth deck of a modern cruise ship, a passenger might reasonably wonder how the towering structure stays upright. The vessel looks like a floating skyscraper, seemingly defying the basic laws of balance. With thousands of balcony cabins stacked high into the sky, the visual intuition screams that the ship is dangerously top-heavy.

That visual intuition is wrong, masking a brilliant exploitation of fluid dynamics. The secret to a mega-ship's stability does not lie in the towering superstructure above the waves. It lives in the extreme width, or beam, of the hull hidden just below the waterline.[3]

To understand why a 220,000-ton ship does not capsize, you have to track two invisible points. The first is the center of gravity, the exact point where all the downward weight of the steel, engines, and passengers concentrates. The second is the center of buoyancy, the point where the upward push of the displaced ocean concentrates.[1]

The Geometry of the Heel

When a ship sits perfectly flat on calm water, these two points align in a perfect vertical column. Gravity pulls straight down through the center, and buoyancy pushes straight up. The vessel rests in a state of static equilibrium, feeling perfectly solid to the guests walking the promenade.[1]

But the ocean is rarely perfectly calm, and ships are subjected to powerful lateral forces. A sudden gust of wind hitting the massive side profile of the superstructure pushes the vessel sideways. As the ship leans, or heels, the underwater geometry of the hull fundamentally changes.[3]

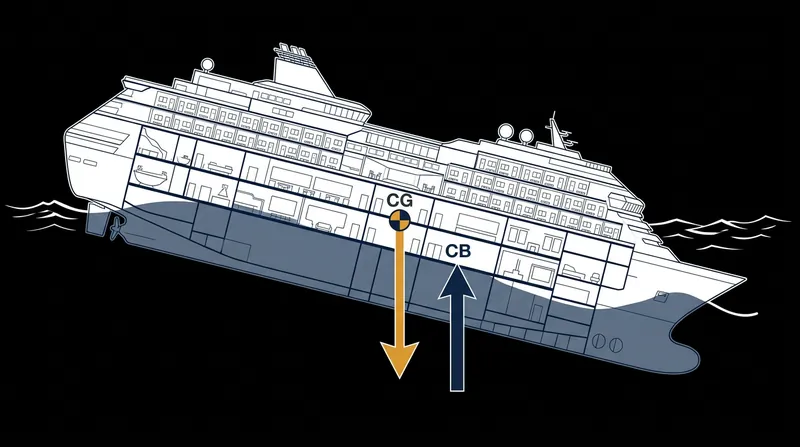

This is where the extreme width of modern cruise ships performs its primary trick. As the ship tilts to starboard, a massive wedge of the flat-bottomed hull on the starboard side is forced underwater. Simultaneously, an equal wedge on the port side lifts out of the sea.[1][3]

Because buoyancy is simply the upward force of displaced water, the center of buoyancy instantly moves to the center of this new underwater shape. It shifts rapidly outward, moving toward the side that is leaning into the water. The wider the ship, the further and faster this upward force moves toward the edge.[1]

The Righting Arm Lever

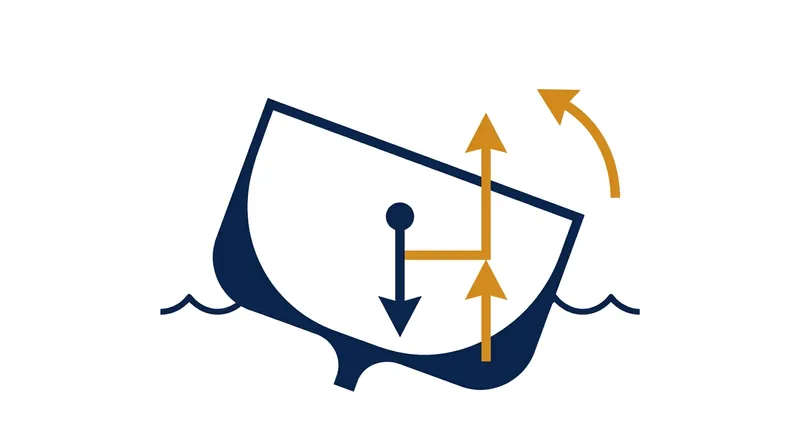

This outward shift creates a mechanical lever called the righting arm, or GZ in naval architecture. Gravity is still pulling straight down through the center of the ship, but buoyancy is now pushing straight up from a point much further out. This offset creates a twisting force that violently opposes the tilt.[1][3]

"The righting lever must be positive over a range of at least 30 degrees," mandates the International Maritime Organization in its Intact Stability Code, the strict regulatory baseline governing all global passenger vessels.[2]

This strict requirement ensures that the ocean's upward push always remains outboard of the ship's downward weight. If the center of buoyancy did not shift far enough outward during a sudden heel, the massive vessel would inevitably roll over.[2]

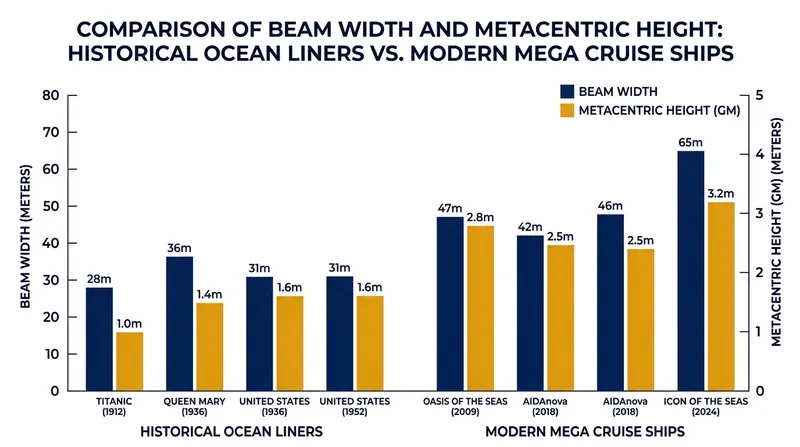

Modern Oasis-class ships feature a beam width of 47 meters, paired with a relatively shallow draft of just 9.3 meters. This extreme beam-to-draft ratio means that even a slight tilt displaces an enormous volume of water on the leaning side. The righting arm generates instantly, snapping the vessel back upright before the heel becomes dangerous.[3]

The heavy machinery placement further amplifies this safety margin. While the passenger decks look massive, they are constructed from lightweight aluminum and thin steel. The truly heavy components—the massive diesel engines, the fuel tanks, the water desalination plants, and the waste management systems—are bolted to the lowest decks.[1][3]

Balancing Comfort and Safety

Keeping the heavy equipment below the waterline drags the center of gravity down. A lower center of gravity means the ship has to tilt much further before its weight swings outside the protective upward push of the buoyancy. This low center of gravity combined with a wide beam creates a massive metacentric height.[1]

Metacentric height is the ultimate metric of a ship's stability, measuring the distance between the center of gravity and the theoretical pivot point of the ship's roll. The International Maritime Organization requires a minimum metacentric height of just 0.15 meters for passenger ships, but modern cruise ships often boast a height of several meters.[1][2]

However, naval architects face a fascinating trade-off when designing this stability. A ship with an extremely wide beam and a massive metacentric height is incredibly safe, but it is also incredibly stiff. When a wave tilts a stiff ship, the massive righting arm snaps it back upright so violently that passengers lose their footing.[1][3]

To prevent this jarring motion, designers intentionally raise the center of gravity slightly by adding weight higher up, softening the righting arm. This elongates the roll period, turning a violent snap into a gentle, sweeping sway. The ship remains mathematically impossible to capsize under normal conditions, but it feels much more comfortable to the human inner ear.[1]

The Role of Active Stabilizers

While the hull's beam provides the ultimate defense against capsizing, active stabilizer fins handle the minor discomforts. These airplane-like wings deploy from the hull below the waterline, pivoting dynamically to counter the motion of the waves. They do not prevent the ship from flipping; they merely smooth the ride.[3]

If the stabilizer fins fail or retract, the ship does not suddenly become unsafe. It simply becomes less comfortable, relying entirely on the passive geometry of its wide beam to fight the ocean. The center of buoyancy continues to shift outward with every tilt, tirelessly pushing the vessel back to equilibrium.[1][3]

This passive physical reality is why cruise lines can confidently build ships with 20 decks and massive water parks on the roof. The visual bulk above the waterline is essentially an illusion of weight. The true battle against the ocean is fought and won by the wide, flat steel hidden beneath the waves.[3]

The Evolution of Hull Design

Older ocean liners were built with narrow, deep V-shaped hulls designed to slice through the Atlantic ice and waves. Their narrow beams meant their center of buoyancy did not shift outward very far during a heel. They relied almost entirely on a deep, heavy draft to stay upright, making them roll deeply in rough seas.[1][4]

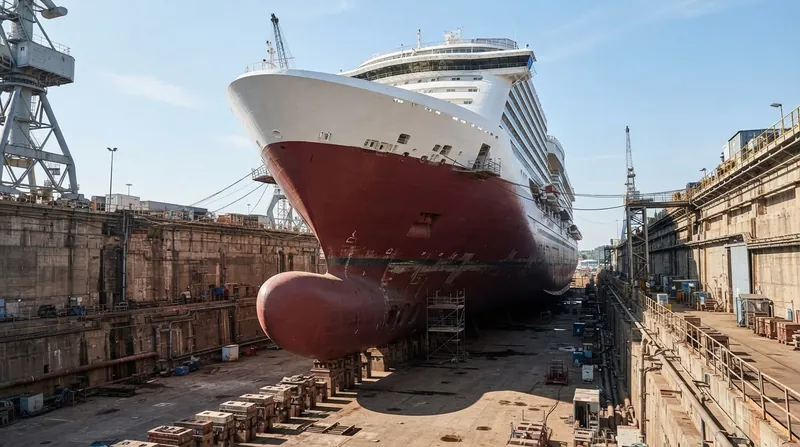

Today's cruise ships are not built to cross oceans at record speeds; they are built to be floating resorts. Their wide, flat-bottomed barge-like hulls are optimized for maximum internal volume and extreme initial stability. When the wind hits their massive side profiles, the ocean simply refuses to let them tip.[3][4]
