How Mediation Separates the Mechanism of an Effect from Moderation's Conditional Boundary

When a peer reviewer sits down to evaluate a new behavioral intervention, they hold the power to decide whether a study's findings enter the clinical literature or get sent back for revision. Their primary tool for making that decision is separating what the researchers actually proved from what they merely marketed in their abstract. Often, a team will claim they have discovered exactly how a treatment works, when the math only proves who it works for.

This distinction rests entirely on two statistical concepts that are routinely conflated: mediation and moderation. While they both require adding a third variable to a standard regression model, they answer fundamentally different questions about reality. The former maps the internal gears of a process, while the latter draws the perimeter around where that process is valid.

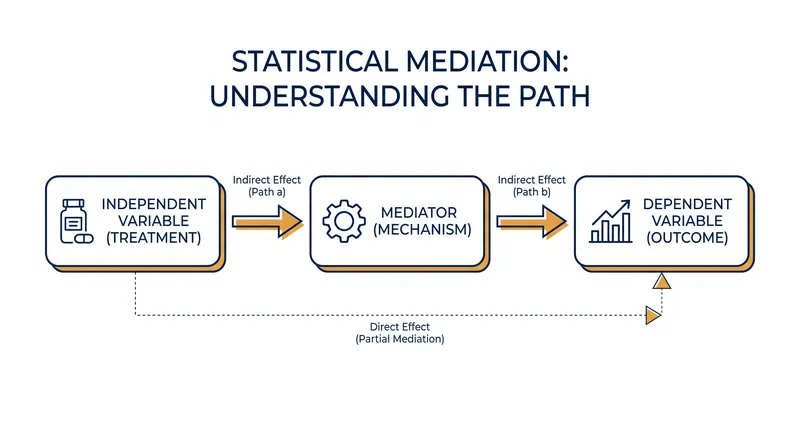

A mediator explains the mechanism of an effect. It is the connective tissue between an input and an output. If a new reading program improves standardized test scores, the mediator might be "vocabulary acquisition." The program changes the student's vocabulary, and the expanded vocabulary subsequently changes the test score. Without the mediator, the causal chain is broken.[3][5]

A moderator, conversely, establishes the conditional boundary of an effect. It dictates when, where, or for whom the relationship holds true. If that same reading program works brilliantly for eight-year-olds but fails entirely for twelve-year-olds, age is the moderator. It does not explain how the program works; it simply maps the demographic limits of its effectiveness.[3][5]

The confusion between the two is not merely an academic footnote. According to methodological reviews, a significant portion of observational research mislabels these variables, leading policymakers to fund interventions based on a fundamental misunderstanding of the causal chain. A 2021 scoping review found widespread inconsistencies in how these models are applied in medical literature.[7]

Andrew Hayes, whose regression-based approaches have become standard in the social sciences, notes that researchers often default to testing for moderation because it is mathematically simpler to prove. You only need to show that an effect size changes across different groups or conditions, which can easily be done with cross-sectional data.[2]

Proving mediation is structurally harder. It requires establishing a strict temporal sequence: the independent variable must change the mediator, which must subsequently change the dependent variable. In cross-sectional data—where everything is measured at a single point in time—claiming mediation is often a leap of faith disguised as a statistical finding.[6]

"The marketing language of academic publishing frequently obscures this gap," notes the Factlen Editorial Team's synthesis of current methodological standards. "A study will find that a drug's efficacy differs by genetic marker—a classic moderator—but the press release will claim they have unlocked the drug's 'underlying mechanism.'"[8]

This skepticism is particularly warranted in observational research. Methodologists warn that while mediation analysis is widely used to unveil causal mechanisms, it is highly susceptible to unmeasured confounding. If a hidden variable influences both the mediator and the outcome, the entire causal house of cards collapses, producing a statistically significant but entirely false mechanism.[4][7]

To combat this, methodologists are increasingly pushing researchers toward experimental designs where the mediator itself is manipulated. If you believe vocabulary acquisition is the true mediator for reading scores, you must design an experiment that specifically isolates and alters vocabulary acquisition, rather than just observing it passively in a classroom.[1]

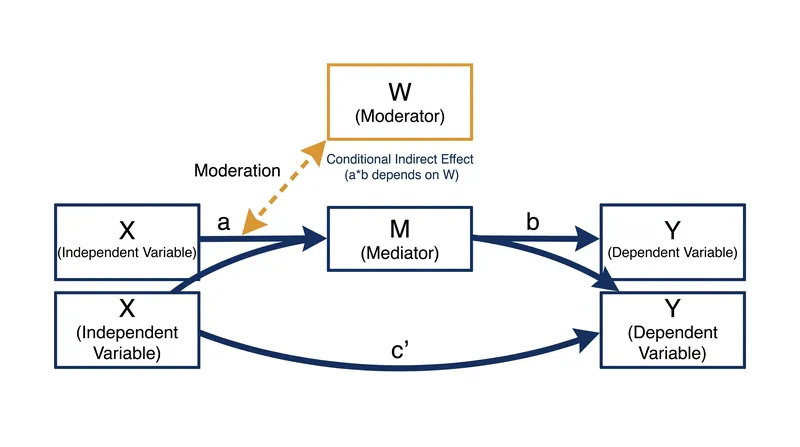

There is also a growing adoption of conditional process analysis, which integrates both concepts into a single, unified model. This approach acknowledges that a mechanism (mediation) might only operate under specific environmental or demographic conditions (moderation).[2]

For example, a public health campaign might successfully increase vaccination rates (the outcome) by increasing risk awareness (the mediator). However, this entire mechanism might only function in communities with high baseline trust in medical institutions (the moderator). If trust is low, the mechanism never activates.[2][4]

Organizations like Evidence for Action emphasize that unveiling these causal mechanisms is critical for scaling interventions. If a public health department does not know exactly why a program worked in one city, they cannot reliably deploy it in another.[4]

Ultimately, the mathematical models are only as robust as the theoretical frameworks supporting them. A regression output will happily calculate a mediation effect even if you input the variables in reverse chronological order. The software does not know how time works; it only knows covariance.[6]

The responsibility therefore returns to the researchers and the reviewers who gatekeep the literature. The next time a major journal publishes a breakthrough intervention, the critical question is not whether the p-value crossed the threshold of significance. The question is whether the researchers actually mapped the mechanism, or merely found its boundary.
