The Goodman Relation: Why a Static Load Mathematically Reduces a Component's Resistance to Cyclic Failure

The Goodman relation explains why materials fail under repeated stress much faster when a constant background load is applied. By mapping the interaction between alternating and mean stress, it provides the mathematical boundary that keeps bridges, aircraft, and engines from catastrophic fatigue.

By Salma Barakat

Conservative Engineering Consensus 40%Lightweighting Advocates 35%Advanced Multiaxial Theorists 25%
Conservative Engineering Consensus
Argues that the linear Goodman relation provides an essential, non-negotiable safety margin for critical infrastructure.
Lightweighting Advocates
Argues that strict adherence to Goodman leads to unacceptable weight penalties and advocates for less conservative models.
Advanced Multiaxial Theorists
Argues that simple linear models fail to capture complex crack propagation under high mean stress, requiring critical plane analysis instead.

Perspectives this story doesn't cover

  • Software developers building modern finite element analysis tools
  • Accident investigators analyzing historical fatigue failures

Key terms

Alternating Stress
The portion of the mechanical load that fluctuates or vibrates over time.
Mean Stress
The constant, average background load applied to a component.
Endurance Limit
The maximum alternating stress a material can withstand for an infinite number of cycles without failing, assuming zero mean stress.
Ultimate Tensile Strength
The maximum static pulling force a material can withstand before breaking.
Ductile Material
A material, like aluminum or mild steel, that can stretch and deform significantly before fracturing.

Key points

  • The Goodman relation mathematically maps how a constant static load reduces a material's ability to survive cyclic vibration.
  • The equation draws a linear boundary on a graph; stress states below the line theoretically survive infinitely, while those above will fracture.
  • While highly effective for safety, the linear model is often overly conservative for ductile materials like steel and aluminum.
  • Strict adherence to the Goodman line can result in a 15% to 20% weight penalty, prompting aerospace engineers to use alternative models.
  • Advanced multiaxial criteria are now replacing simple linear models to better predict complex crack propagation in high-performance components.

Snapping a dry branch over your knee is a straightforward mechanical failure: apply enough force to exceed the wood's ultimate strength, and it breaks. But if you bend that same branch back and forth repeatedly, it snaps at a fraction of the original force. This is pure cyclic fatigue. The Goodman relation addresses the far more dangerous reality where these two forces combine: what happens when you bend that branch back and forth while simultaneously pulling it taut? The single respect in which this differs from pure fatigue is the presence of a constant, static load—and mathematically, that static load drastically reduces the material's ability to survive the cyclic bending.[6]

John Goodman proposed his eponymous relation in 1899 to solve a problem that was tearing apart the industrial revolution. Railway axles, steam engine components, and early industrial machinery were failing catastrophically at stress levels well below their tested limits, causing derailments and factory explosions. Engineers at the time knew about fatigue, but they treated the constant weight of the train and the cyclic rotation of the wheels as entirely separate problems. Goodman recognized they were a single, compounding equation that had to be solved together.[6]

The relation he formulated states that the allowable alternating stress amplitude decreases linearly as the mean stress increases. In plain terms: the harder you pull on a piece of metal constantly, the less vibration it can withstand before it shatters. If a steel cable can survive a million cycles of being shaken with a force of 500 pounds, applying a constant hanging weight of 2,000 pounds to that same cable will cause it to snap after only a few thousand shakes. The static load consumes the material's internal resistance.[2][4]

We visualize this interaction using a Goodman-Haigh diagram, a standard tool in every mechanical engineering curriculum. The vertical axis represents the alternating stress—the vibration or cyclic load—capped at the material's endurance limit, which is the maximum vibration it can handle infinitely with zero static load. The horizontal axis represents the mean stress—the constant static load—capped at the ultimate tensile strength, where the material would snap from pure pulling force. The space between these axes maps the survival zone.[2]

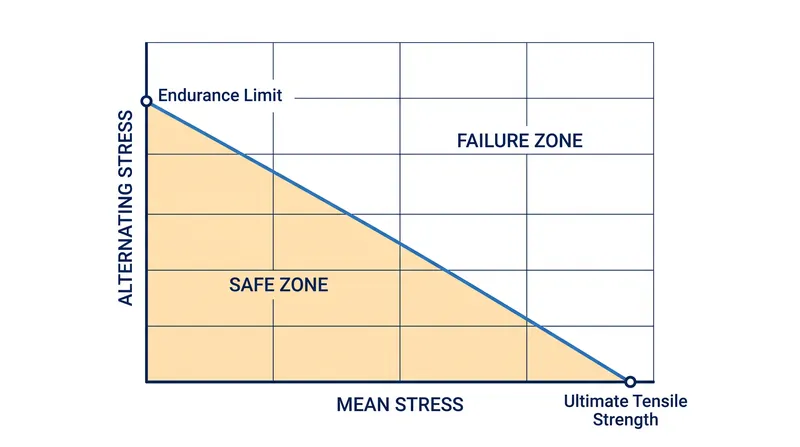

The Goodman line maps the mathematical boundary between infinite cyclic life and guaranteed fatigue failure.

The Goodman line connects these two maximums, drawing a straight diagonal boundary across the graph. If the combined stress state of a component—its specific mix of constant pulling and cyclic vibration—plots as a point below this line, the component has an infinite life. It will theoretically never fail from fatigue. If the point falls above the line, microscopic cracks will inevitably form, grow, and cause a catastrophic fracture. The line represents the mathematical cliff edge of structural integrity.[2][4]

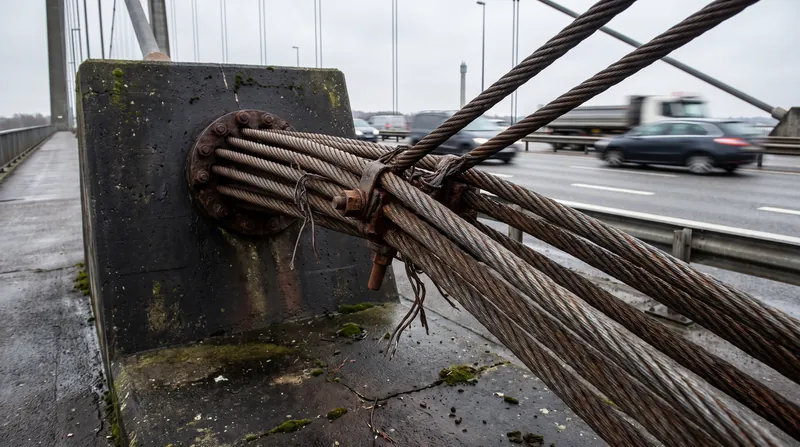

This mathematical boundary dictates the design of almost everything around us, from consumer electronics to heavy infrastructure. A bridge suspension cable holding a heavy, constant load of concrete and traffic has a severely diminished capacity to withstand the cyclic stress of wind-induced vibration. The static load eats into the structural budget available for cyclic loads. Engineers must calculate this interaction precisely to ensure that a winter storm doesn't push the bridge's cables over the Goodman line and into the failure zone.[4]

The mathematical elegance of the Goodman relation lies in its simplicity: the ratio of alternating stress to endurance limit, plus the ratio of mean stress to ultimate strength, equals one. However, this simplicity is also its primary vulnerability, and the source of intense debate in modern materials science. The linear Goodman line is often overly conservative for ductile materials like structural steel and aluminum, which behave differently under stress than the brittle cast iron of the 19th century.[2][6]

However, this simplicity is also its primary vulnerability, and the source of intense debate in modern materials science.

Because ductile materials can stretch and yield internally before they break, they often survive stress combinations that the Goodman line predicts will cause immediate failure. This prompted engineers to develop alternative mathematical models, such as the Gerber parabola, which curves outward to allow for higher combined stresses, or the Soderberg line, which is even more conservative and uses the yield strength instead of the ultimate strength. Choosing the right model determines the final weight and cost of the component.[4][6]

A 2024 SAE Mobilus study on simulation-based fatigue life predictions demonstrated the real-world cost of this conservatism. The study found that while the Goodman relation provides an unimpeachable safety baseline, it routinely leads to significant over-engineering. Components designed strictly by the Goodman line might be 15% to 20% heavier than necessary, because engineers are forced to add extra material to keep the theoretical stress state below the artificially low linear boundary. This excess mass cascades through the entire design, requiring heavier supports and larger engines.[3]

Strict adherence to the linear Goodman boundary can result in a 15% to 20% weight penalty in ductile materials.

In industries like civil engineering, a 20% weight penalty is an acceptable trade-off for absolute safety; concrete and steel are relatively cheap. But in aerospace and automotive design, where every gram translates directly to fuel consumption, battery range, and carbon emissions, that penalty is a massive economic and environmental burden. Engineers are forced to argue over just how closely they dare to approach the mathematical edge, relying on advanced software to justify stepping past the traditional Goodman boundary.[3]

Conversely, for brittle materials or components with severe stress concentrations—like sharp corners, bolt holes, or weld seams—the Goodman relation can sometimes be dangerously non-conservative. Recent multiaxial fatigue criteria, such as those published in MDPI, incorporate critical plane approaches that account for the specific orientation of microscopic cracks. These models prove that stress is rarely a simple push-and-pull; it twists and shears the material simultaneously, creating complex failure modes that a straight line cannot predict.[1][5]

These advanced models reveal that high mean stresses can accelerate crack propagation in complex ways that a simple linear equation fails to capture entirely. When a component is twisted and pulled simultaneously, the static load doesn't just reduce the cyclic capacity; it actively wedges open microscopic flaws, changing the geometry of the failure itself. The critical plane approach calculates the stress on the exact microscopic angle where the crack is most likely to form, providing a much more accurate prediction of failure.[1]

Modern mechanical design requires balancing the absolute safety guaranteed by conservative models against the efficiency demanded by modern economics. The Goodman relation remains the foundational teaching tool and the first-pass check for engineers worldwide, precisely because it refuses to hide the ball: static loads kill cyclic endurance. It forces every designer to acknowledge that a component at rest is not experiencing the same reality as a component under tension. This fundamental truth governs everything from the axles of electric vehicles to the turbine blades of jet engines.[7]

Yet, as we push materials to their absolute limits in reusable rockets, high-efficiency wind turbines, and lightweight electric vehicles, the static-cyclic interaction requires more nuanced mathematics. The next frontier in fatigue analysis isn't discarding Goodman, but integrating his fundamental insight with real-time sensor data and high-fidelity finite element analysis. Engineers are now feeding live stress data into digital twins, allowing them to monitor exactly how the combined loads are affecting the physical hardware in the field.[3][7]

We are moving toward a paradigm where we map exactly how a static load is eating away at a component's cyclic lifespan in real-time, rather than relying on a static graph drawn in 1899. Until that technology is ubiquitous, the Goodman relation stands as the mathematical floor. It remains the undeniable proof that in the physical world, constant pressure and repeated stress are a deadly combination that must be respected. Ignoring it guarantees that the material will eventually make the calculation for you, usually with catastrophic results.[7]

Frequently asked

What is the difference between static load and cyclic load?

A static load is a constant, unchanging force, like the weight of a bridge deck. A cyclic load is a fluctuating force, like wind vibration or the rotating stress on a vehicle axle.

What does the Goodman relation actually calculate?

It calculates the maximum allowable cyclic vibration a material can withstand when a specific constant static load is also applied, defining the boundary of failure.

Why don't engineers just use the ultimate tensile strength?

Because materials fail at much lower forces when the stress is repeated. A paperclip breaks easily if you bend it back and forth, even if you can't pull it apart with pure static force.

Is the Goodman relation still used today?

Yes, it remains the standard first-pass safety check in mechanical engineering, though advanced finite element analysis software is increasingly used for final aerospace and automotive designs.
