The Blue or Green Light Pulse: How Optically Stimulated Luminescence Measures the Accumulated Radiation Dose in Quartz Grains

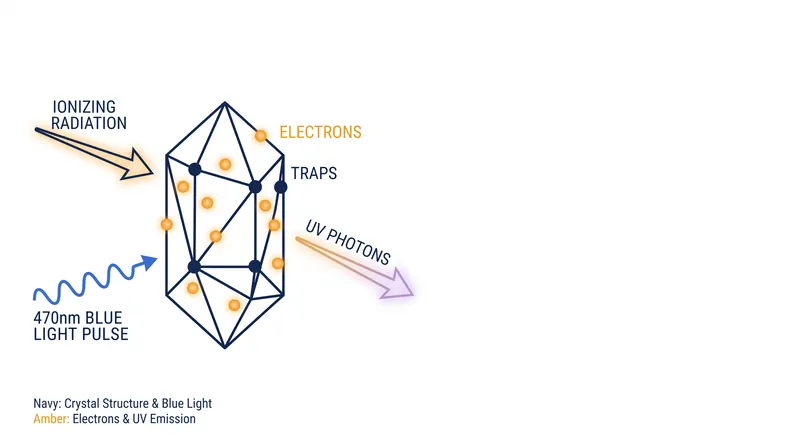

Optically stimulated luminescence (OSL) measures the accumulated radiation dose in quartz grains by exposing them to a controlled pulse of blue or green light, which evicts electrons trapped in the crystal's structural defects. As these electrons recombine with the lattice, they emit ultraviolet photons; the intensity of this flash reveals exactly how much ionizing radiation the grain absorbed since it was last exposed to sunlight.[3][6]

When a quartz grain is buried in soil or sediment, it is continuously bombarded by natural background radiation from the decay of trace radioactive isotopes—specifically uranium-238, thorium-232, and potassium-40—as well as incoming cosmic rays. This ionizing radiation knocks electrons loose from their parent atoms within the silicon dioxide lattice.[4][6]

These freed electrons diffuse through the crystal until a fraction of them fall into positively charged structural defects, where they remain trapped in a metastable state. The longer the grain remains buried in the dark, the more electrons accumulate in these traps, effectively turning every grain of sand into a microscopic dosimeter that records the passage of time.[4][5]

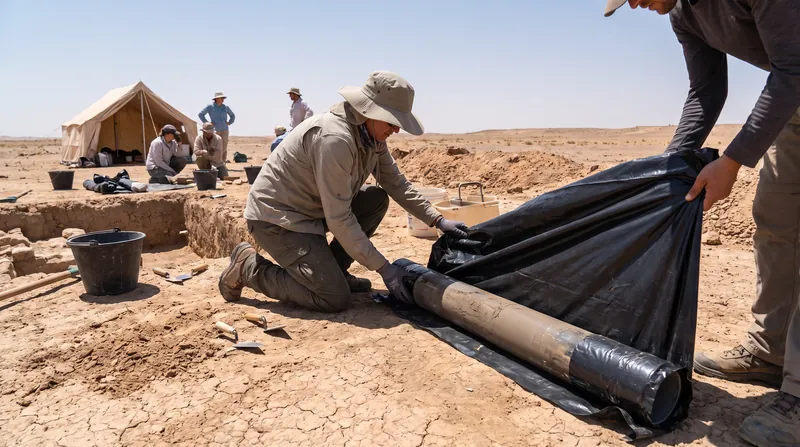

To read this accumulated record, researchers extract the quartz under strict safe-light conditions and place it in a luminescence reader. The sample is heated to 125 degrees Celsius and exposed to a highly controlled pulse of light, typically utilizing blue light-emitting diodes (LEDs) with a peak emission wavelength of 470 nanometers, or green lasers operating at 532 nanometers.[3][5]

The energy from these 470-nanometer photons is precisely enough to eject the trapped electrons from their defects. Once evicted, the electrons migrate through the lattice until they recombine with luminescence centers. During this recombination, the electrons shed their excess energy by emitting ultraviolet light, which is captured by a photomultiplier tube through a glass filter designed to block the blue stimulation light.[3][4]

The ultraviolet emission decays rapidly—often within a few seconds—as the traps are systematically emptied by the blue light pulse. The total area under this decay curve represents the "equivalent dose" (De), which is the total absorbed radiation dose measured in Grays, where one Gray equals one Joule of absorbed energy per kilogram of mass.[2][4]

"Luminescence dating provides an age estimate of the last time minerals, such as quartz and feldspar, were last exposed to sufficient light or heat to reset a prior luminescence signal," write Michelle S. Nelson and colleagues in a 2015 methodology guide published in Advances in Archaeological Practice. To convert the equivalent dose into a chronological age, geochronologists must also determine the environmental dose rate.[8]

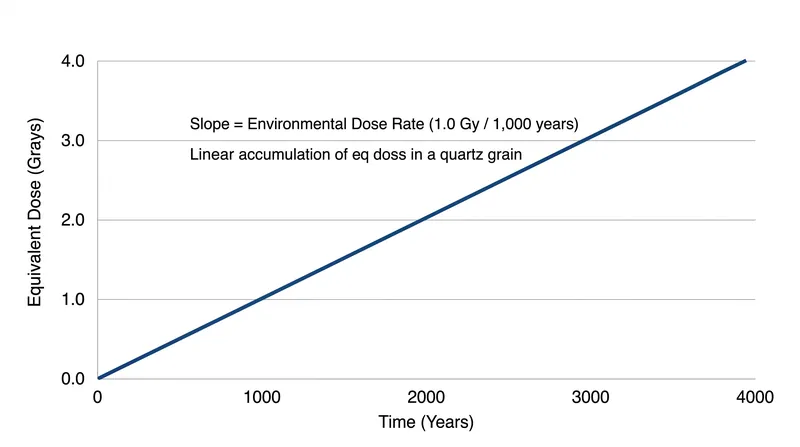

The environmental dose rate is the amount of radiation the grain absorbed per year from its specific surroundings, typically ranging between 0.5 and 5.0 Grays per 1,000 years. The age of the sample is calculated by dividing the equivalent dose by this environmental dose rate. For example, if a quartz grain absorbed a total of 3.0 Grays, and the local sediment delivers 1.0 Gray per 1,000 years, the grain has been buried for 3,000 years.[4][6]

For this chronological clock to be accurate, it must have been fully reset to zero prior to burial. In quartz, exposure to direct sunlight for as little as 1 to 100 seconds is sufficient to bleach the mineral, emptying all electron traps and resetting the dosimeter. This rapid bleaching makes quartz highly suitable for dating aeolian deposits like sand dunes and wind-blown loess.[1][6]

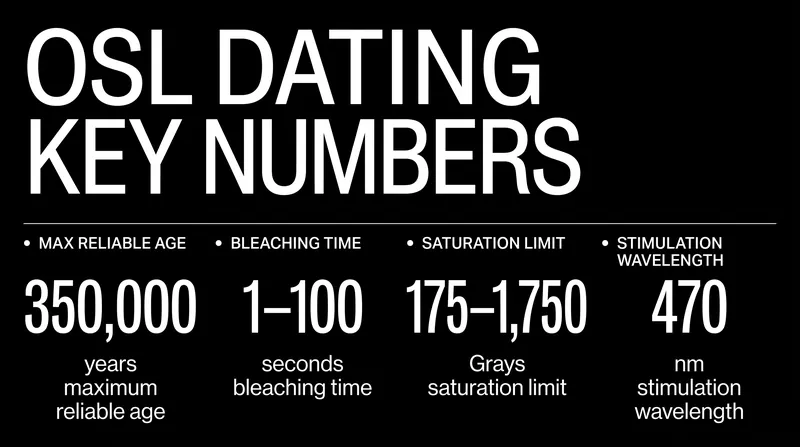

The technique is strictly bounded by the physical capacity of the quartz crystal lattice. Once all available structural defects are filled with electrons, the luminescence signal saturates, and additional radiation exposure generates a non-linear response. This saturation point typically limits single-aliquot regenerative-dose (SAR) quartz OSL dating to a maximum reliable age of approximately 350,000 years.[6][8]

By multiplying this maximum reliable age of 350,000 years by typical environmental dose rates, Factlen analysis indicates that the quartz crystal lattice reaches electron-trap saturation between 175 and 1,750 Grays of total absorbed ionizing radiation. Beyond this threshold, the traps are exhausted, preventing accurate age calculation for older Pleistocene sediments.[6][7]

To ensure precision within that 350,000-year window, modern laboratories rely on the single-aliquot regenerative-dose (SAR) protocol. Because individual quartz grains vary wildly in their luminescence sensitivity—the amount of light they emit per unit of radiation—the SAR protocol measures the response of the exact same grain to both its natural burial dose and a series of artificial laboratory doses, creating a custom calibration curve for every sample.[3][6]

When researchers need to date sediments older than the quartz saturation limit, they frequently turn to potassium feldspar. Feldspar possesses significantly higher dose saturation levels, potentially extending the datable range out to one million years. However, feldspar requires stimulation with infrared light at 870 nanometers and suffers from "anomalous fading," a quantum mechanical tunneling effect where electrons spontaneously leak from traps over time, requiring complex mathematical corrections.[1][6]

The development of OSL has revolutionized geochronology by allowing researchers to date the actual burial event of inorganic clastic sediments. While radiocarbon dating is limited to organic materials and reaches its maximum threshold at roughly 50,000 years, OSL can directly date the sand and silt in river terraces, glacial deposits, and archaeological hearths far deeper into human history.[1]

Despite its utility, OSL dates typically carry an uncertainty margin of 5 to 10 percent of the calculated age. This error stems primarily from the difficulty of precisely modeling the environmental dose rate over hundreds of millennia. Moisture content in the soil heavily influences the dose rate, as water absorbs ionizing radiation; if a site was significantly wetter in the past, assuming a constant dry dose rate will result in an underestimated age.[6][8]

Researchers also continue to struggle with partially bleached sediments—grains that were buried before sunlight could fully reset their traps, such as those transported in turbid fluvial environments or rapid mudslides. These residual signals lead to age overestimations, and identifying the fully bleached grains within a mixed sample remains one of the primary methodological challenges in modern luminescence dating.[8]

The ability to read the trapped light in a grain of sand has fundamentally altered how earth scientists reconstruct past environments. As long as the quartz remains shielded from the sun, the electrons hold the physical record of its burial, waiting for a 470-nanometer pulse of blue light to release their accumulated time.[3][5]
