How Lower Unsprung Mass Improves Tire Grip But Worsens High-Frequency Ride Comfort

Reducing a vehicle's unsprung mass—the weight of its wheels, tires, and brakes—improves grip because a lighter wheel assembly can react faster to road contours, keeping the tire contact patch firmly pressed against the pavement. However, this same rapid response worsens high-frequency ride comfort, as the lighter mass offers less inertial resistance to small, sharp impacts, transmitting those rapid vibrations directly into the cabin.[4]

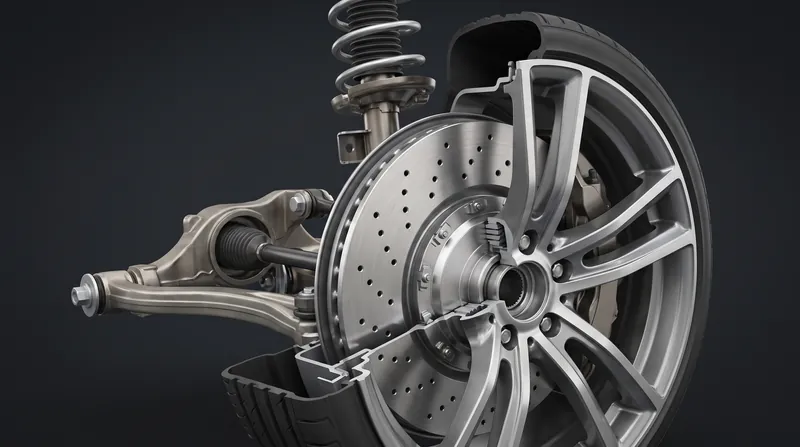

The physics of vehicle suspension operate as a mechanical filter, designed to isolate the passenger cabin from the road while maintaining directional control. Engineers divide a car into two distinct categories: sprung mass and unsprung mass. According to Wikipedia's 2003 foundational entry on the topic, unsprung mass includes "the mass of the suspension, wheels or tracks (as applicable), and other directly connected components." Everything resting on top of the suspension springs—the chassis, engine, passengers, and cargo—constitutes the sprung mass.[4]

The relationship between these two masses dictates a vehicle's dynamic behavior. When a car encounters a bump, the wheel is forced upward. A lighter wheel assembly accelerates upward more easily, allowing the suspension spring to absorb the impact without transferring as much upward force to the heavy chassis. This rapid response ensures the tire returns to the pavement quickly, maximizing the contact patch and improving grip during cornering and braking.[3][4]

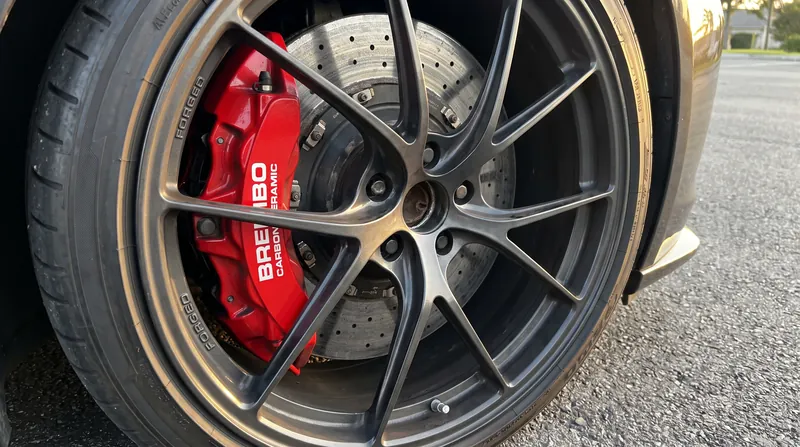

"Heavy wheels hurt handling," notes AUTODOC UK in its technical breakdown of electric vehicle dynamics. Because a heavier wheel requires more force to change its direction of motion, it is slower to track the depressions and peaks of an uneven road. If the wheel spends even a fraction of a second airborne after striking a bump, the vehicle loses traction. Consequently, performance vehicles utilize forged aluminum or carbon fiber wheels, alongside carbon-ceramic brakes, to shave every possible kilogram from the unsprung mass.

Yet, this pursuit of mechanical grip introduces a severe penalty in high-frequency ride comfort. Inertia acts as a natural damper against rapid, low-amplitude vibrations—the kind generated by coarse asphalt, expansion joints, or small gravel. A heavy cast-iron brake rotor and a dense alloy wheel possess enough mass to resist being moved by these minor imperfections. The tire absorbs the micro-impacts, and the heavy wheel assembly remains largely undisturbed.[2]

When that mass is removed, the wheel assembly becomes highly reactive to those same micro-impacts. Without the damping effect of heavy inertia, high-frequency vibrations travel straight through the wheel, up the suspension linkages, and into the chassis. Passengers perceive this as a busy, jittery, or harsh ride, even on seemingly smooth highways.[1][2]

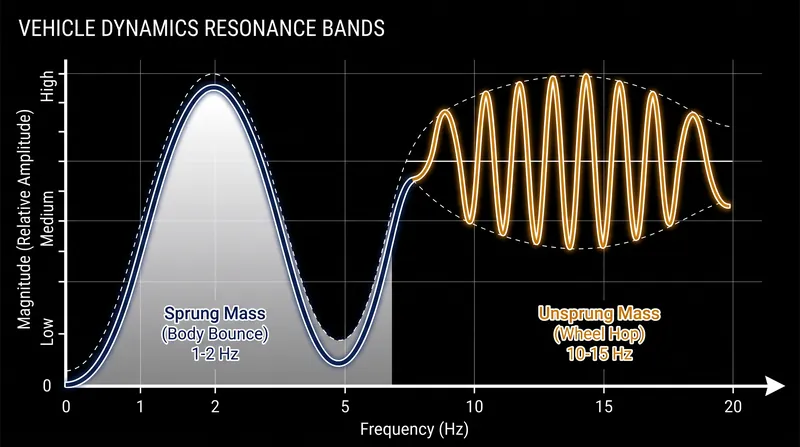

The mathematical reality of this trade-off lies in resonant frequencies. A standard passenger car's sprung mass (the body) typically bounces at a low frequency of 1 to 2 Hertz (Hz), which human bodies perceive as a gentle, boat-like heave. The unsprung mass (the wheels), however, typically resonates at 10 to 15 Hz, a phenomenon known as wheel hop.[4]

Reducing the unsprung mass shifts its resonant frequency higher. A 15 percent reduction in wheel weight can push the wheel hop frequency toward 15 to 20 Hz. This higher frequency band aligns more closely with human tactile and auditory sensitivity, making the vibrations more noticeable and irritating to occupants. The suspension system, optimized for lower frequencies, struggles to filter out these rapid oscillations.[2][5]

The transition to electric vehicles has complicated this delicate balance. EVs are inherently heavy due to their large lithium-ion battery packs, which significantly increases the sprung mass. To support this weight and manage the immense instant torque of electric motors, EVs require reinforced suspension components, larger brakes, and heavier tires with higher load ratings.

This necessity drives up the unsprung mass. Furthermore, some EV architectures experiment with in-wheel hub motors, which place the electric motor directly inside the wheel. While this frees up cabin space and allows for precise torque vectoring, it adds massive unsprung weight. ResearchGate's analysis of ride blending control for electric vehicles highlights that managing the dynamic response of these heavy wheel assemblies requires sophisticated active suspension systems to prevent severe degradation in ride quality.[1]

To mitigate the harshness of lightweight wheels or the sluggishness of heavy ones, engineers manipulate tire vertical stiffness. The tire acts as the first, undamped spring in the suspension system. An ASME study on optimizing tire vertical stiffness notes that the process requires balancing "ride, handling, performance, and fuel consumption criteria." A stiffer tire sidewall improves steering response and reduces rolling resistance but transmits more high-frequency energy to the wheel.[3]

Conversely, a softer tire sidewall can absorb the high-frequency chatter that a lightweight wheel fails to damp, restoring ride comfort. However, this introduces sidewall flex during cornering, negating the precise handling benefits that the lightweight wheel was intended to provide. The tire and the wheel must be tuned as a single, coupled system.[3]

AI

Modern automakers increasingly rely on adaptive dampers to bridge this physical divide. By using magnetorheological fluid or electronically controlled valves, these shock absorbers can change their damping rates in milliseconds. They can provide soft damping to isolate high-frequency vibrations on straight roads, then instantly stiffen to control wheel movement during aggressive cornering.[2]

Despite these electronic interventions, the fundamental physics remain absolute. A suspension system cannot simultaneously possess high inertia to block micro-vibrations and low inertia to track macro-bumps perfectly. Every vehicle on the road represents a specific compromise between the tire's grip on the pavement and the passenger's isolation from it.[5]
