Bode's Integral Theorem: Why Reducing System Sensitivity in One Frequency Range Must Mathematically Increase It in Another

The moment an engineer finalizes the physical design of an unstable system—a fighter jet's airframe, a satellite's reaction wheels, or a chemical reactor's thermal dynamics—the system's open-loop poles are permanently set. This is the exact step where the ultimate limits of its control software are mathematically locked into place. Before a single line of code is written to stabilize the system, the total amount of error and noise it will experience across all frequencies is already determined. The software can move this sensitivity around, but it can never reduce the total sum.[4]

This inescapable trade-off is governed by Bode's Integral Theorem, a foundational law of control theory formulated by Hendrik Wade Bode in 1945. Often referred to as the "waterbed effect," the theorem dictates that if a feedback controller suppresses disturbances in one frequency range, it must mathematically amplify disturbances in another.[1]

To understand why this happens, one must look at the sensitivity function, which measures how a system's output responds to external disturbances. In a perfect world, an engineer would design a controller that makes this sensitivity zero across all frequencies, completely isolating the system from wind gusts, sensor noise, or mechanical vibrations.[1]

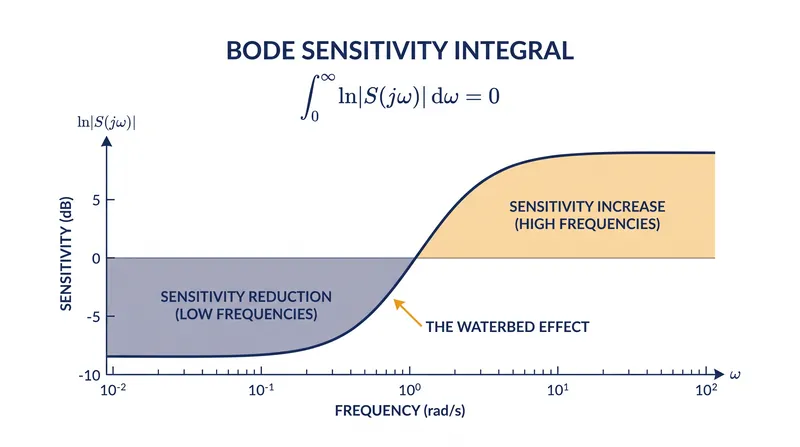

Bode's theorem proves that such perfection is impossible. For any linear time-invariant system, the integral of the logarithm of the sensitivity function over all frequencies equals a constant. For a stable open-loop system, that constant is exactly zero. For an unstable system, the constant is a positive number strictly determined by the sum of the system's unstable open-loop poles, multiplied by pi.[1]

Because the total area under the sensitivity curve is conserved, pushing the curve down in one place forces it to bulge upward somewhere else. If an engineer tunes a flight controller to aggressively reject low-frequency wind gusts (pushing the sensitivity below zero on a logarithmic scale), the mathematics of the Cauchy integral theorem demand that the sensitivity must rise above zero at higher frequencies.

The consequences of this conservation law are profound in aerospace engineering. Consider the X-29A, a highly unstable experimental aircraft with forward-swept wings. The physical airframe was designed to be aerodynamically unstable to increase maneuverability, which placed its open-loop poles deep into the right half of the complex plane.[3]

According to research published by the American Institute of Aeronautics and Astronautics, this physical instability meant the X-29A's control system had a massive positive Bode integral constant. As the authors note, "Making the system sensitivity small via feedback in a selected frequency band forces large sensitivity values outside of the band since the total integral must remain constant."[3]

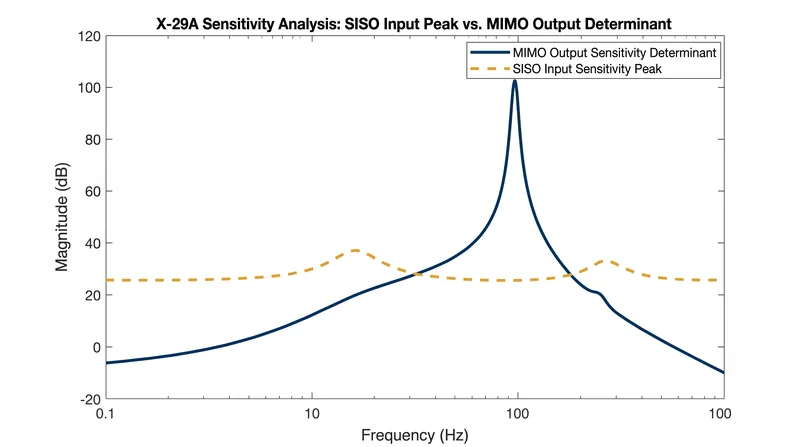

The high-frequency peaking in the multi-input multi-output (MIMO) sensitivity determinant for the X-29A was significantly higher than the low-frequency suppression. This was not a flaw in the software design; it was a mathematical inevitability dictated solely by the airframe's unstable poles. No amount of algorithmic cleverness could bypass it.[3]

The same constraints apply to discrete-time digital controllers, though the mathematics shift slightly. In discrete-time systems, the sensitivity integral constraint is tied to the locations of the transmission zeros outside the unit circle, rather than the right-half plane poles.[2]

As detailed in a 2019 analysis of discrete-time Bode constraints, the fundamental rule remains identical: all performance limitations are inherently related to the system's open-loop characteristics. If a digital controller samples data at 100 Hz and aggressively filters out a 10 Hz mechanical vibration, it will inevitably amplify noise at 30 Hz or 40 Hz.[2][4]

This dynamic creates a perilous balancing act for engineers. The frequency range where sensitivity is amplified is often called the "penalty region." If the penalty region happens to align with a frequency where the system's sensors are particularly noisy, or where the mechanical structure has a natural resonance, the amplified disturbances can tear the system apart.[5]

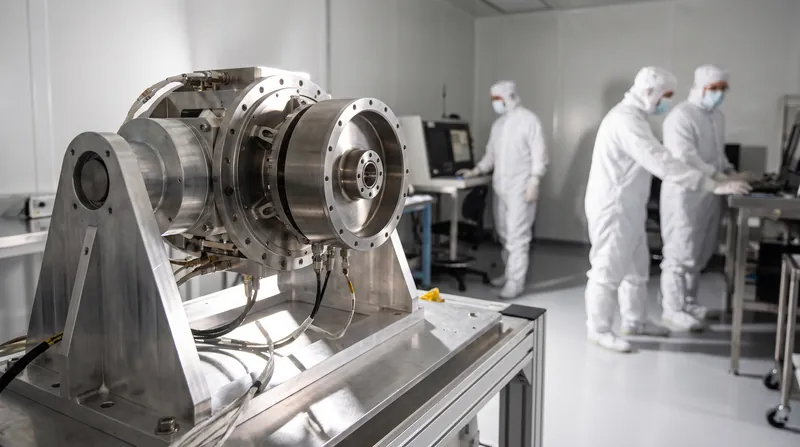

NASA engineers face this exact problem when designing attitude control systems for satellites using reaction wheels. A 2003 NASA study on Bode's integral highlighted the strong trade-off between rejecting low-frequency disturbances and amplifying high-frequency noise. The report states plainly: "The integrated value of the log of the magnitude of the sensitivity function is conserved under the action of feedback. The total amount of this quantity is always the same."[5]

To mitigate the waterbed effect, engineers must ensure that the penalty region is pushed into a frequency band where the system naturally lacks energy or where the physical hardware cannot respond fast enough to be damaged. The control software is essentially hiding the amplified noise in a spectral blind spot.[4]

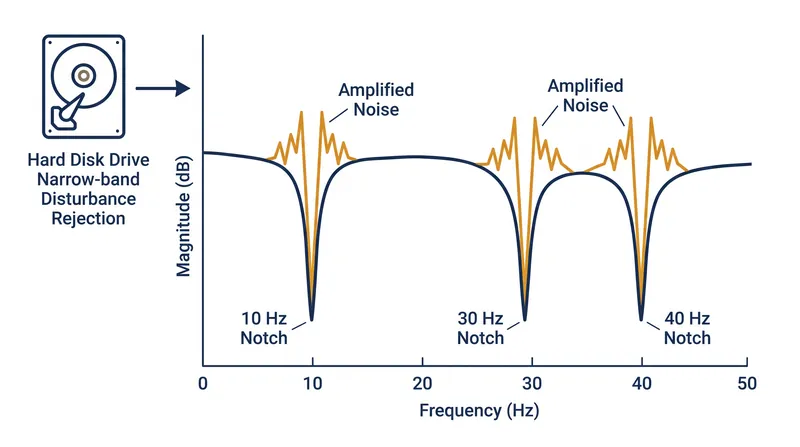

However, this strategy is becoming harder to execute as modern systems become more complex. In hard disk drives, for example, the read/write heads must maintain positioning accuracy within 10 nanometers while rejecting multiple narrow-band disturbances from aerodynamic flutter and mechanical runout.[4]

Attempting to suppress these multiple narrow bands simultaneously using traditional linear feedback creates a chaotic waterbed effect, where the sensitivity curve spikes violently between the suppressed frequencies. This has driven researchers to explore non-linear or batch-update repetitive control methods, which can sometimes bypass the strictest interpretations of Bode's integral.[4]

Yet, for the vast majority of industrial, aerospace, and robotic applications, linear feedback remains the standard, and Bode's theorem remains the absolute floor on performance. The theorem serves as a permanent reminder that in control theory, there are no free lunches.[4]

The push for ever-more agile, unstable physical designs—whether in fighter jets, walking robots, or magnetic levitation trains—will always exact a toll in the frequency domain. The more inherently unstable the physical hardware is, the larger the Bode constant becomes, and the more severe the waterbed effect will be.[3]

The solution to control system instability is therefore not always better software, but better physical design. If the open-loop poles are kept stable, the Bode integral remains zero, allowing the sensitivity to be balanced evenly without massive penalty spikes. When engineers respect the mathematics of the waterbed effect, they realize that the most important control decisions are made before the software is even considered.[4]
