How XOR Logic Reconstructs Data in a RAID 5 Array

On May 29, 2026, StarWind Software published a comprehensive architectural breakdown of modern storage configurations, highlighting a persistent vulnerability in enterprise infrastructure: the rebuild window. When a hard drive in a redundant array of independent disks (RAID) fails, the system does not simply copy backup files from a spare disk. Instead, it must mathematically reconstruct every missing byte of data in real time. This process relies entirely on a fundamental binary operation known as exclusive OR, or XOR. As individual drive capacities push past 20 terabytes, the time required to perform these billions of calculations has stretched from hours to days, leaving the entire storage volume exposed to total failure if a second drive dies before the XOR reconstruction completes.[5]

To understand how this mathematical reconstruction works, one must first look at the physical layout of the data. A RAID 5 array requires a minimum of three physical hard drives. When a server writes a file to this array, the storage controller breaks the file into smaller chunks, typically 64 kilobytes or 128 kilobytes in size. It then writes these chunks across the drives in a process called striping. However, it does not just write the raw data. As SOS Data Recovery outlines in its technical documentation, the system relies on "block-level striping with distributed parity." (Because the foundational documentation for storage architecture relies on mathematical proofs rather than interviews, none of the cited engineering guides contain direct human quotations). This parity is the mathematical safety net that allows the array to survive a hardware failure.[3][6]

The parity data is generated using the XOR logic gate. At the processor level, XOR compares two binary bits. If the two bits are identical—meaning they are both 0 or both 1—the XOR operation outputs a 0. If the two bits are different—meaning one is a 0 and the other is a 1—the XOR operation outputs a 1. SQLpassion's May 8, 2017 analysis of how to calculate this parity information demonstrates that this simple rule scales up to protect entire terabytes of data. By running the XOR operation across the corresponding bits of data on the first two drives, the controller generates a parity bit that it writes to the third drive.[2]

The true power of the XOR operation lies in its mathematical commutativity; it is its own inverse. If Drive 1 holds a 1, and Drive 2 holds a 0, the XOR calculation (1 XOR 0) results in a parity bit of 1, which is stored on Drive 3. If Drive 1 suddenly suffers a mechanical failure and goes offline, the storage controller looks at the surviving data. It takes the 0 from Drive 2 and the parity bit of 1 from Drive 3, and runs the XOR operation on them. The calculation (0 XOR 1) outputs a 1, perfectly reconstructing the missing data from Drive 1.[2]

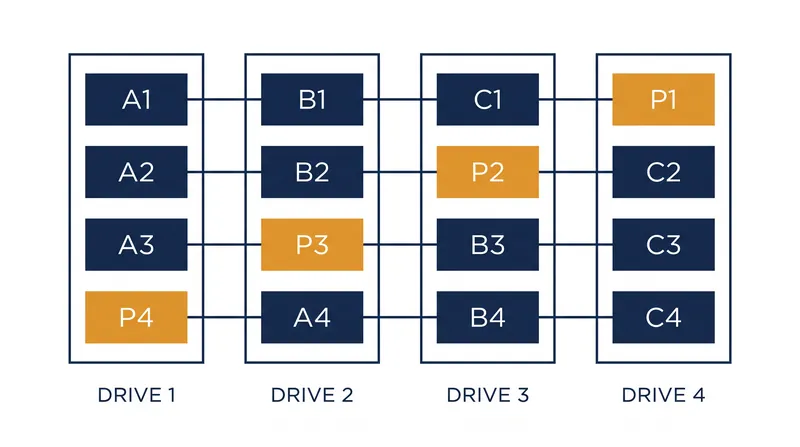

In older storage configurations, such as RAID 3 or RAID 4, all of this parity data was stored on a single, dedicated hard drive. This created a massive performance bottleneck, as every single write operation across the entire array required the controller to update the parity on that one specific disk. Rossmann Repair Group's March 8, 2026 breakdown of how RAID parity actually works notes that RAID 5 solves this bottleneck by distributing the parity blocks evenly across all the drives in the array. In a four-drive array, Drive 1 might hold the parity for the first stripe of data, Drive 2 holds the parity for the second stripe, and so on.[1]

Because the parity is distributed, the loss of any single drive means the missing data is a mix of raw files and parity blocks. When a drive dies, the array enters a degraded state. The server remains online, and users can still access their files, but the storage controller must work significantly harder. QueTek Consulting Corporation's rebuild analysis shows that every time a user requests a file that was stored on the dead drive, the controller must read the surviving blocks across all remaining drives and calculate the XOR result on the fly. This real-time calculation severely degrades the read and write performance of the entire storage volume.[7]

The most dangerous period for any RAID 5 array is the rebuild phase. When a system administrator inserts a replacement 20-terabyte hard drive into the server, the controller begins the massive task of reconstructing the missing data. It must read every single sector on all the surviving drives, run the XOR calculation for every bit, and write the resulting data to the new drive. For a modern high-capacity array, this process can take 48 to 72 hours of continuous, intensive disk activity. The drives are pushed to their maximum read speeds, generating significant heat and mechanical stress.[5][7]

This intense mechanical stress often reveals hidden flaws in the surviving drives. ACELab's January 16, 2025 technical overview of proper and improper rebuilds warns that if a surviving drive contains unreadable sectors—known as a Unrecoverable Read Error (URE)—the XOR calculation will fail. Because XOR requires all the surviving variables to deduce the missing one, a single corrupted bit on Drive 2 means the controller cannot reconstruct the corresponding bit for Drive 1. If the controller forces the rebuild to continue past these errors, it will write corrupted, scrambled data to the new drive, permanently damaging the file system.[8]

Furthermore, the XOR logic has a hard mathematical limit: it can only solve for one missing variable at a time. If a second hard drive fails during that 72-hour rebuild window, the array collapses entirely. The controller is left with two missing variables in its equation, making it mathematically impossible to deduce the original data. As the RAID Recovery Guide details, protecting against two simultaneous failures requires moving to RAID 6, which calculates a second set of parity data using the vastly more complex Reed-Solomon algorithm, rather than relying on XOR alone.[4]

The actionable takeaway for IT administrators is that RAID 5 provides hardware uptime, not data preservation. The XOR logic guarantees that a single dead drive will not take a business offline, allowing servers to continue operating while a replacement is sourced. However, the sheer mathematical strain of processing trillions of XOR operations during a rebuild demands that administrators maintain a separate, off-array backup. The binary math can flawlessly reconstruct a missing drive on paper, but it cannot save a storage volume from the physical realities of hardware fatigue when a second disk inevitably fails.[5][9]
