How the Efficient Frontier and the Capital Allocation Line Optimize Portfolio Risk and Return

When an institutional allocator balances a portfolio between a broad equity index and a corporate bond fund, they are optimizing along a curved boundary of risk and return known as the Efficient Frontier. But the introduction of a guaranteed yield—such as a 5.0% return on a 3-month Treasury bill—fundamentally alters this geometry. By plotting a straight Capital Allocation Line (CAL) from that risk-free rate to the exact tangency point on the frontier, an investor can mathematically construct a portfolio that delivers a higher return per unit of volatility than any combination of purely risky assets.

This mechanism dictates how modern wealth management operates. Rather than guessing which individual stocks will outperform in a given quarter, contemporary portfolio construction relies on these two intersecting models to structure asset allocation. The framework separates the mechanical process of finding the most efficient basket of risky assets from the personal choice of how aggressively to invest.

The foundation of this framework dates to 1952, when Harry Markowitz published "Portfolio Selection" in The Journal of Finance. Markowitz demonstrated that because assets do not move in perfect lockstep—a property measured by their correlation coefficient—combining them reduces the total standard deviation of the portfolio. Diversification mathematically eliminates idiosyncratic risk, leaving only the systematic risk of the broader market.[1]

Plotting every possible combination of these assets creates a hyperbola on a graph where the x-axis represents risk and the y-axis represents expected return. The upper, outward-bowing edge of this curve is the Efficient Frontier. "The efficient frontier is the set of optimal portfolios that offer the highest expected return for a defined level of risk or the lowest risk for a given level of expected return," according to the Corporate Finance Institute.[2]

However, the Efficient Frontier alone only considers risky assets. It assumes the investor cannot hold cash or borrow money at a guaranteed rate. In reality, investors have access to risk-free assets, typically proxied by short-term government debt backed by the taxing authority of a sovereign nation.

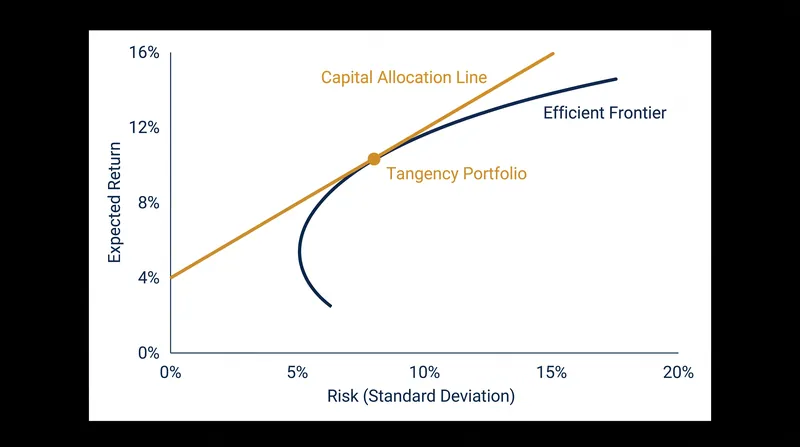

This is where the Capital Allocation Line enters the equation. The CAL is a straight line drawn from the risk-free rate on the y-axis—where standard deviation is exactly zero—to intersect with the Efficient Frontier. The slope of this line represents the Sharpe ratio, which measures the amount of excess return generated per unit of risk taken.

There is only one optimal point where the CAL touches the Efficient Frontier: the tangency point. Financial Edge Training notes that this specific combination of risky assets is the "Optimal Risky Portfolio." It offers the steepest possible slope from the risk-free rate, meaning it provides the highest risk-adjusted return available in the market. Any other portfolio on the frontier would result in a flatter CAL and a lower Sharpe ratio.

This intersection creates what economists call the Separation Theorem. The first step of investing is entirely objective: finding the tangency portfolio. Every rational investor, regardless of their personal risk tolerance, should hold their risky assets in this exact proportion, because it represents the mathematical peak of market efficiency.

The second step is subjective. An investor adjusts their total risk not by changing the mix of stocks and bonds within the tangency portfolio, but by moving up and down the straight Capital Allocation Line. A conservative investor might place 70% of their capital in the 5.0% risk-free asset and allocate only 30% to the tangency portfolio, sliding down the CAL toward the y-axis.

Conversely, an aggressive investor can move past the tangency point by borrowing money at the risk-free rate to buy more of the optimal risky portfolio. If the tangency portfolio offers an expected return of 10.0% with a standard deviation of 15.0%, leveraging the position by 50% pushes the expected return to 12.5%, while scaling the volatility proportionally to 22.5%.

Wealth management platforms increasingly automate this process to prevent behavioral errors. InvestGlass highlights that visualizing the Efficient Frontier graph allows advisors to guide clients toward "smarter investing" by clearly demonstrating how sub-optimal, hand-picked portfolios fall below the CAL, leaving potential returns on the table for a given risk budget.[3]

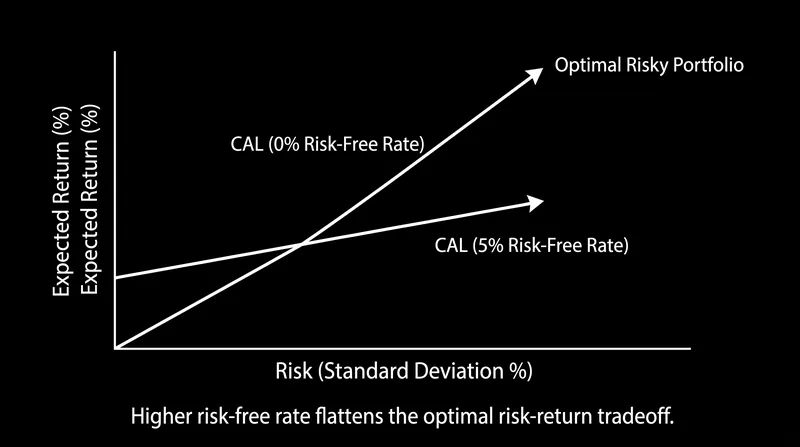

The geometry of this model is highly sensitive to macroeconomic shifts. When the Federal Reserve held interest rates near 0.0% between 2020 and 2021, the y-intercept of the CAL was anchored at the absolute bottom of the chart. This steepened the line, making the risk premium of equities highly attractive and pushing the tangency portfolio toward higher-volatility assets.[5]

With risk-free rates now hovering around 5.0% in 2026, the origin point of the CAL has shifted upward. This flattens the slope of the line. To achieve the same risk premium over the baseline that they enjoyed five years ago, investors must now accept a tangency portfolio with a standard deviation roughly 14% higher, fundamentally altering capital allocation strategies across the industry.[5]

Despite its mathematical elegance, the framework relies on inputs that are notoriously difficult to predict. The model requires precise estimates of expected returns, variances, and covariances for every asset. A study published on ResearchGate illustrating the CAL and Efficient Frontier underscores that these inputs are derived from historical data, which frequently fails to predict future market behavior.[4]

Consequently, while the Capital Allocation Line provides the definitive theoretical roadmap for maximizing risk-adjusted returns, its practical application requires constant recalibration. The exact coordinates of the tangency portfolio remain a moving target, dictated as much by the shifting yield on a Treasury bill as by the underlying performance of the global equity market.
