Single vs. Dual Evaporator Refrigerators: How Cooling Hardware Dictates Humidity and Freezer Burn

A homeowner replacing a kitchen appliance chooses not just a metal box, but the specific thermodynamic engine that will govern their food budget for the next decade. The decision between a single and dual evaporator refrigerator dictates exactly how long produce survives and whether frozen goods succumb to freezer burn. Buyers can select a shared-air system that compromises both compartments to save money upfront, or an isolated-air system that preserves optimal conditions in each.[7]

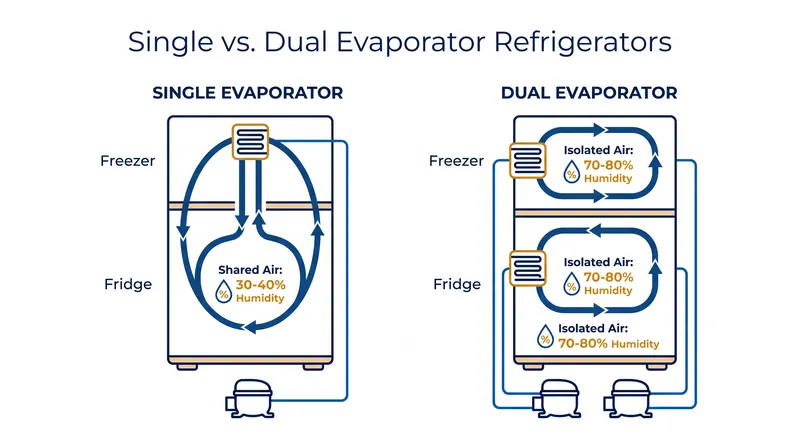

The standard single evaporator system relies on one cooling coil, typically located in the freezer, to manage the entire appliance. According to RTINGS' technical breakdown of refrigerator mechanics, this single coil "absorbs heat" from the air, chilling it to sub-zero temperatures. A fan then pushes a portion of this freezing, bone-dry air up into the fresh food compartment to maintain a target temperature of 37 degrees Fahrenheit. Because the air originates in the freezer, it carries almost zero moisture.[3]

This shared airflow creates a structural humidity deficit. Fresh produce requires ambient humidity levels between 70% and 80% to prevent wilting. However, the air pumped from a single evaporator freezer actively strips moisture from lettuce, berries, and vegetables. The resulting fresh food compartment humidity often hovers around 30% to 40%. Furthermore, this shared loop means that odors from the refrigerator—like leftover fish or pungent cheeses—are circulated directly into the freezer, where they are absorbed by ice cubes and frozen goods.[1][5]

Dual evaporator systems solve this thermodynamic conflict by physically separating the cooling loops. As detailed in Sub-Zero's engineering documentation, dual refrigeration ensures that the moist air in the fresh food section "does not mix" with the dry air in the freezer. The refrigerator compartment gets its own dedicated evaporator coil, which operates at a much milder temperature. Because this coil does not need to drop below 32 degrees Fahrenheit, it does not condense and freeze the ambient moisture out of the air.[2]

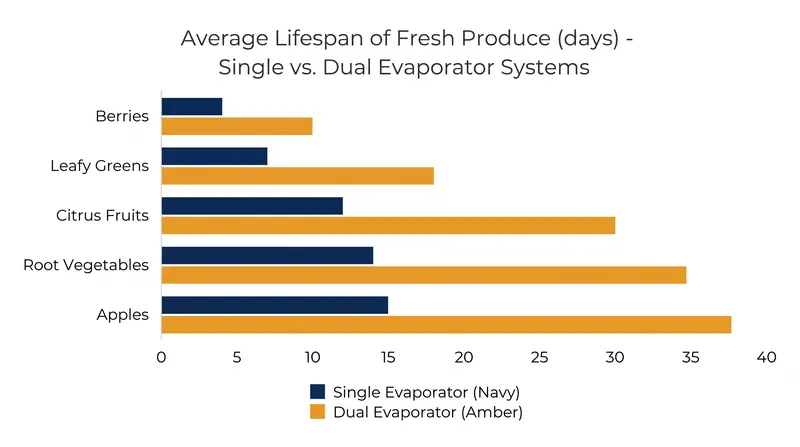

By keeping the fresh food coil above freezing, the refrigerator compartment retains its natural moisture. Produce stored in a dual evaporator system can last two to three times longer than in a single evaporator model, directly reducing household food waste. Meanwhile, the freezer compartment operates its own isolated coil, maintaining the ultra-dry, sub-zero environment required to prevent ice crystals from forming on frozen foods—the primary cause of freezer burn.[4][5]

The engineering behind these systems has evolved to balance performance with power consumption. A 2024 analysis by LabRepCo highlights that independent cooling loops allow each compartment to respond only to its specific thermal load, rather than forcing the entire system to run when only one door is opened. Advanced sequential dual evaporator designs, as modeled in system energy optimization research from Politecnico di Milano, can route refrigerant dynamically to whichever compartment requires cooling, maximizing thermodynamic efficiency.[4][6]

The hardware difference carries a distinct price premium. Single evaporator refrigerators dominate the entry-level and mid-tier markets, typically priced between $600 and $1,500. Dual evaporator models, pioneered by premium brands like Sub-Zero and now integrated into high-end lines from GE Appliances, generally start around $2,000 and scale upward. The upfront cost difference is substantial, but the return on investment is measured in extended grocery lifespans and reduced energy waste over the appliance's 10-to-15-year lifecycle.[1][2]

The hardware architecture inside the chassis determines the daily utility of the appliance. A single evaporator forces a compromise between two incompatible environments, while a dual evaporator respects the distinct physics of freezing and cooling. When the next grocery haul goes into the crisper drawer, the number of cooling coils operating behind the plastic panels will dictate whether those greens are served next week or thrown in the compost.[7]
