The Sensor Inside the Probe: How Bi-Metallic, Thermistor, and Thermocouple Thermometers Change Cooking Accuracy

Inside the USDA's Food Safety and Inspection Service testing kitchens in Washington, D.C., a technician inserts a stainless steel probe into the center of a roasted chicken breast. The digital readout flashes 165 degrees Fahrenheit in exactly three seconds. If that same technician had used a standard dial thermometer from a grocery store aisle, the needle would have taken up to two full minutes to settle on a final number. That 117-second discrepancy is not a matter of brand quality or battery life; it is dictated entirely by the physics of the sensor hidden inside the metal shaft.[1]

For home cooks and professional chefs in 2026, the market offers hundreds of food thermometers ranging in price from $5 to $150. Yet, beneath the plastic housings and digital displays, nearly all of them rely on one of three fundamental temperature-sensing technologies: bi-metallic coils, thermistors, or thermocouples. Each mechanism interacts with heat differently, fundamentally altering how fast the device responds and how deep it must be inserted to capture an accurate reading.[9]

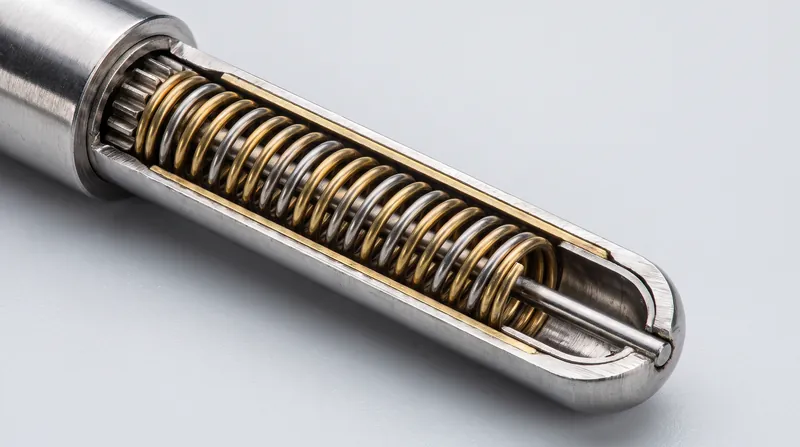

The most ubiquitous and inexpensive option is the bi-metallic stemmed thermometer. According to the USDA Food Safety and Inspection Service guidelines, these analog devices contain a coil made of two different metals bonded together. As heat transfers through the probe, the two metals expand at different rates, causing the coil to physically twist and move the indicator needle on the dial.[1]

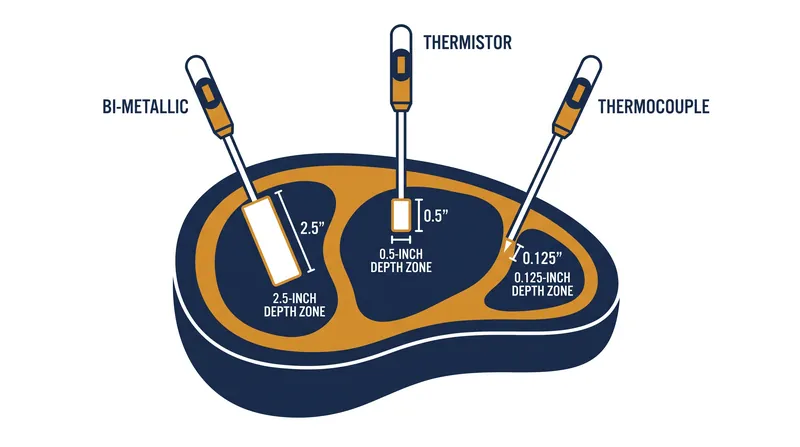

Because this mechanical twisting requires a significant transfer of thermal energy, bi-metallic sensors are inherently slow. The USDA notes that a cook must wait one to two minutes for the needle to stop moving. Furthermore, the bimetallic coil is not located just at the tip; it stretches from the tip up to a small dimple located two to three inches up the stem.[1]

"The bi-metallic thermometer measures the average temperature along the entire active area of the stem," the USDA documentation states. This structural reality means that if the probe is inserted into a half-inch hamburger patty, the upper portion of the coil will measure the ambient air of the grill rather than the meat, resulting in a falsely low reading and an overcooked burger.[1]

To solve the speed and depth limitations of mechanical coils, the industry shifted toward digital thermistors. A thermistor is a ceramic semiconductor resistor whose electrical resistance changes predictably with temperature. As the meat heats the probe, the resistance drops, and a microprocessor translates that electrical current into a temperature reading on an LCD screen.[6]

"Thermistors are the most common sensors used in digital food thermometers today," notes a 2017 technical breakdown published by Science World. Because the semiconductor bead is small, it can be positioned much closer to the tip of the probe, usually requiring only a half-inch of insertion to register an accurate temperature.[5]

This localized reading zone makes thermistors highly effective for thinner cuts of meat like chicken breasts or pork chops. They are also significantly faster than their bi-metallic counterparts, typically delivering a final reading in 10 to 15 seconds. However, as Apogee Instruments points out in its sensor comparison data, thermistors have a non-linear resistance curve, meaning their accuracy can drift at extreme high or low temperatures unless heavily calibrated by the manufacturer's software.[8]

At the apex of kitchen temperature measurement sits the thermocouple. Originally developed for industrial applications and scientific laboratories, thermocouples operate on the Seebeck effect. Omega Engineering, a manufacturer of industrial sensors, explains that a thermocouple consists of two dissimilar metal wires—typically chromel and alumel in a Type K sensor—welded together at a single microscopic junction.[4]

When this welded junction is exposed to a temperature gradient, it generates a tiny voltage in the millivolt range. The thermometer's circuit board measures this voltage and calculates the temperature instantly. Because the junction is no larger than a grain of sand, it sits at the absolute very tip of the probe.[4]

"Thermocouples are the Ferraris of thermometers," writes Meathead Goldwyn, founder of the barbecue science site AmazingRibs.com. "They are fast, accurate, and expensive." A high-quality Type K thermocouple can register a temperature change in two to five seconds, requiring an insertion depth of only one-eighth of an inch.[7]

This microscopic reading zone allows a cook to slowly push the probe through a piece of meat and watch the temperature change in real-time, locating the absolute coolest thermal center with millimeter precision. It is a capability that neither a bi-metallic coil nor a thermistor can replicate, making thermocouples the standard for commercial kitchens and competitive barbecue teams.[7]

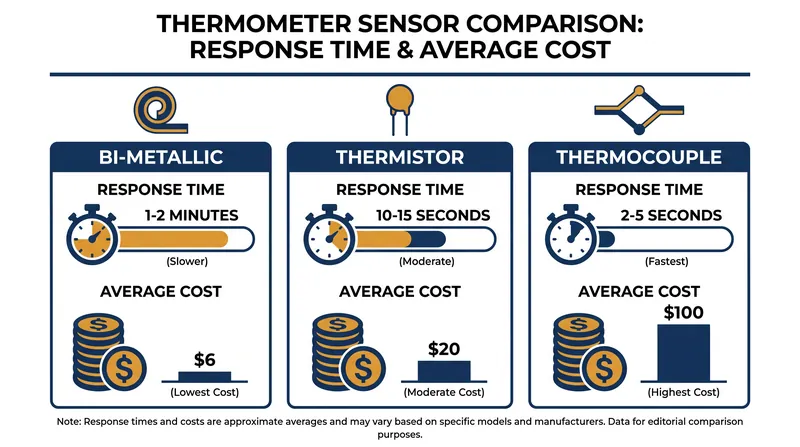

The trade-off for this speed and precision is cost and fragility. While a bi-metallic dial thermometer might cost $6 and a thermistor $20, a professional-grade thermocouple often exceeds $100. The fine wires inside the probe are susceptible to breaking if the thermometer is dropped or bent, and the sophisticated microprocessors required to read millivolt changes consume battery power faster than simpler digital models.[9]

The choice of sensor also dictates calibration requirements. Bi-metallic thermometers feature a calibration nut under the dial, allowing cooks to manually adjust the needle using a glass of ice water. The USDA explicitly recommends calibrating these analog devices regularly, as the mechanical coil can easily be knocked out of alignment by a simple drop on the kitchen floor.[1]

Conversely, thermistors and thermocouples rely on solid-state electronics. While some high-end models offer a digital calibration offset feature, most consumer digital thermometers are factory-calibrated and cannot be adjusted by the user. If the semiconductor degrades or the thermocouple wires corrode over years of use, the entire unit must typically be replaced.[3]

Understanding these three technologies fundamentally changes how a cook approaches food safety. A $100 thermocouple is not merely a luxury item; it is a specialized tool designed for rapid, shallow readings. A $6 bi-metallic thermometer is not inherently defective; it is simply engineered for large, slow-roasting cuts of meat like a Thanksgiving turkey or a prime rib, where a three-inch insertion depth is easily achieved.[9]

The North Carolina State Extension emphasizes that the most critical factor in preventing foodborne illness is not the speed of the thermometer, but the correct application of the tool at hand. Inserting a bi-metallic probe one inch into a chicken thigh will yield a dangerous misreading, just as using a delicate thermocouple to monitor the ambient temperature of a 500-degree grill will likely destroy the sensor.[2]

As digital manufacturing costs continue to fall in 2026, thermistors are rapidly replacing bi-metallic dials as the baseline standard in home kitchens. Yet, the underlying physics of heat transfer and electrical resistance remain unchanged. The accuracy of the final number on the screen will always depend on matching the right sensor to the physical dimensions of the food being cooked.[9]
