Beyond the Joule Rating: How Clamping Voltage and UL 1449 Standards Actually Determine Surge Protector Survival

Underwriters Laboratories (UL) and the Institute of Electrical and Electronics Engineers (IEEE) dictate exactly how much excess electrical energy a power strip can let through before it destroys a connected device. When a consumer evaluates a surge protector, they are choosing between the marketing metrics printed on the box and the certified testing thresholds established by these organizations. The actionable takeaway is straightforward: a high Joule rating cannot save a television or computer if the device's clamping voltage is too high.[8]

The standard North American electrical outlet delivers power at 120 volts. When a grid fluctuation, lightning strike, or heavy appliance motor cycles on, that voltage can spike to thousands of volts for a fraction of a second. To prevent that transient energy from reaching sensitive microprocessors, a surge protector relies on internal components called Metal Oxide Varistors (MOVs).

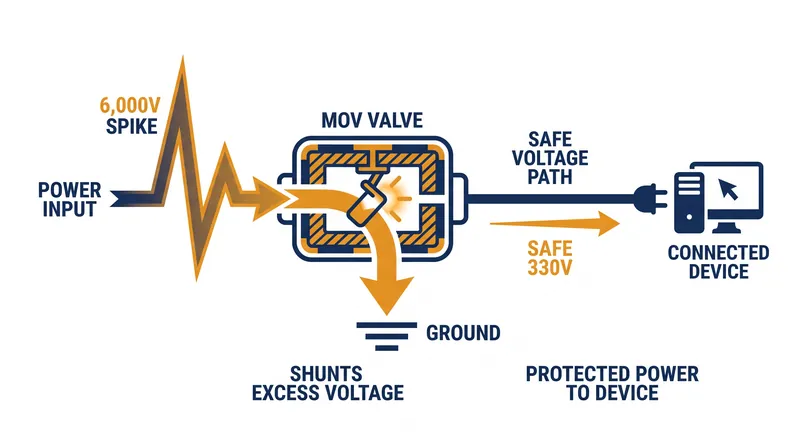

"Surge protective devices are designed to limit transient overvoltages and divert surge currents," states the NEMA Surge Protection Institute. The MOV acts as a pressure relief valve. Under normal 120-volt conditions, it does nothing. When the voltage spikes, the MOV becomes highly conductive, shunting the excess electrical pressure into the ground wire before it can travel down the line to a plugged-in device.[7]

How well that valve works is defined by the UL 1449 standard, currently in its fourth edition. According to nVent, a manufacturer of electrical enclosures, UL 1449 serves as the primary safety and performance benchmark for these devices. The most critical metric generated by this testing is the Voltage Protection Rating, or VPR.[4]

VPR, commonly referred to as clamping voltage, is the exact threshold at which the surge protector wakes up and begins diverting power. Transtector notes that the VPR is a standardized rating assigned after subjecting the device to a specific 6,000-volt, 3,000-amp combination wave surge.[3]

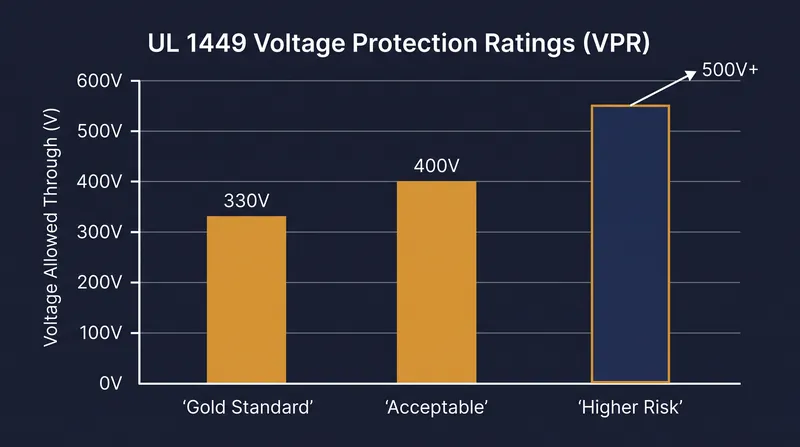

For household electronics, a VPR of 330 volts is the gold standard. This means that if a 6,000-volt spike hits the line, the surge protector will clamp down and only allow 330 volts to pass through to the connected equipment. Ratings of 400 volts or 500 volts are also common, but every additional volt allowed through increases the thermal stress on the power supplies of connected computers and televisions.[3][8]

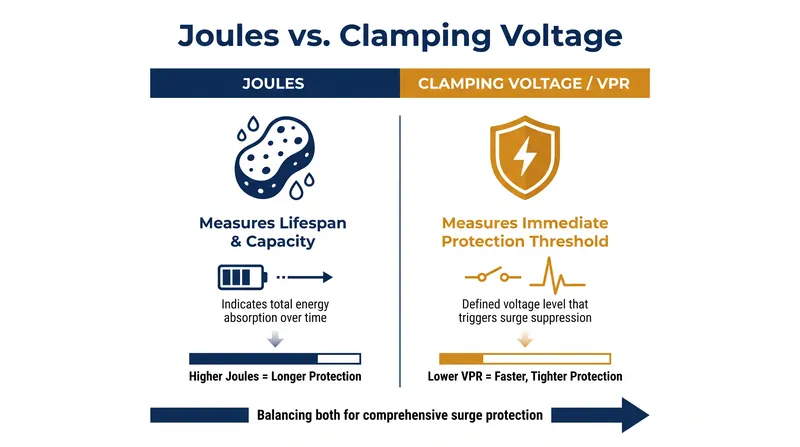

Despite the engineering consensus around VPR, retail packaging overwhelmingly highlights a different number: the Joule rating. As outlined by The Hearthful Home in early 2026, Joules measure cumulative energy absorption. If VPR is the pressure relief valve, the Joule rating is the size of the sponge catching the overflow.[5]

A device rated for 1,000 Joules can absorb a single massive 1,000-Joule hit, or ten smaller 100-Joule hits over its lifespan, before the internal MOVs degrade and fail. LSP Global highlights that higher Joule ratings generally correlate with a longer operational lifespan for the surge protector itself, as the device can endure more grid fluctuations before requiring replacement.[6]

However, a high Joule rating with a poor clamping voltage is a fatal combination for electronics. A 4,000-Joule surge protector with a VPR of 800 volts will survive a massive power spike, but it will allow 800 volts to pass through to a connected laptop, likely destroying the laptop's motherboard. The surge protector lives, but the equipment it was bought to protect dies.[8]

The IEEE C62.42.2 guidelines provide the engineering framework for how these components should be applied in low-voltage circuits of 1,000 volts or less. These standards emphasize coordination between the surge protector and the equipment's own internal power supply tolerances.[2]

Furthermore, the IEEE C62.72a amendment details the application of disconnectors within these devices. Because MOVs degrade over time with every surge they absorb, they can eventually become a fire hazard if they fail catastrophically. The UL 1449 standard requires modern surge protectors to include thermal disconnects that sever the circuit when the MOV overheats.[1][4]

This degradation means surge protectors are consumable items, not permanent infrastructure. A unit installed in 2019 in an area with frequent thunderstorms may have exhausted its Joule capacity by 2026, even if the indicator light remains on.[8]

The actionable metric for buyers is a VPR of 330V or 400V, paired with a UL 1449 certification label. A Joule rating of 1,000 to 2,000 provides adequate lifespan for most residential applications, but it remains a secondary consideration to the clamping voltage.[8]

Evaluating a surge protector requires looking past the largest number printed on the cardboard. By prioritizing the UL 1449 Voltage Protection Rating, consumers align their purchasing decisions with the actual physics of electrical transients, ensuring the pressure valve opens long before the hardware fails.[8]
