IEC 60958 Protocol Constraints Cap HDMI ARC at 1 Mbps: Why Soundbars Compress Surround Sound Without an eARC Differential Pair

The moment a television attempts to route audio back down an HDMI cable to a soundbar, the signal hits a hard physical bottleneck. Standard Audio Return Channel (ARC) connections cap data transfer at a strict 1 Mbps limit. This narrow pipeline forces the television to compress high-resolution surround sound into lossy formats before the audio ever reaches the speakers.

To understand why this limitation exists, consumers must look at the underlying protocol that governs standard ARC. The technology is based entirely on the IEC 60958-1 specification. This is the exact same digital audio standard that powers legacy optical cables, commonly known as S/PDIF.[1]

When the HDMI consortium introduced ARC in 2009 with the HDMI 1.4 standard, they designed it to run over a single spare pin within the 19-pin connector. By adopting the existing IEC 60958-1 framework, manufacturers ensured easy integration with existing audio receivers. However, they also inherited the strict bandwidth ceiling of that older specification.[2]

At roughly 1 Mbps, the standard ARC channel can only handle two channels of uncompressed 16-bit/48kHz PCM audio. If a user wants surround sound, the 1 Mbps limit restricts the system to heavily compressed formats. The pipeline simply lacks the capacity to move raw, uncompressed multichannel audio from the television to the soundbar.[1]

The mathematics of uncompressed audio

"HDMI ARC is based on the IEC 60958-1 specification, which is basically S/PDIF that is also used as the foundation for optical audio," notes FlatpanelsHD in their technical breakdown. The outlet explains that while ARC offers flexibility, its base bandwidth remains fundamentally restricted to 1 Mbps, making lossless audio impossible.

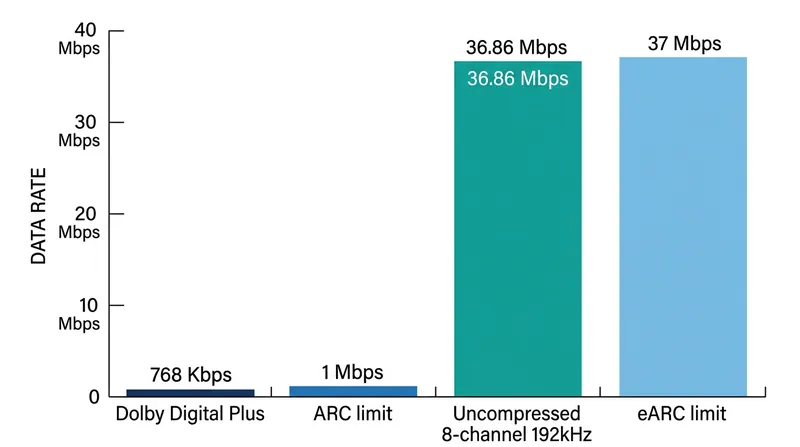

Modern object-based surround sound formats require data rates that shatter the 1 Mbps ceiling. An eight-channel audio stream, operating at a 24-bit depth and a 192kHz sample rate, demands exactly 36.86 Mbps of continuous throughput. Standard ARC falls short of this requirement by a factor of 36.[4]

Because of this massive deficit, televisions connected via standard ARC must aggressively compress advanced formats like Dolby Atmos. The system relies on the lossy Dolby Digital Plus codec to squeeze the spatial audio metadata into a stream that typically peaks at just 768 Kbps. While the soundbar still receives a surround signal, it discards a significant percentage of the original acoustic data.[4]

This compression alters the listening experience for home theater enthusiasts. The dynamic range compresses, subtle overhead effects lose their clarity, and the overall soundstage narrows. The television's audio processor must throw away complex frequency data just to fit the signal through the single-wire ARC bottleneck.

To deliver the bit-for-bit master audio found on 4K Blu-ray discs and high-end gaming consoles, the physical connection between the television and the soundbar required a fundamental redesign. The industry needed a way to move 37 Mbps of audio data upstream without interfering with the massive downstream video signal.[2][3]

The power of a differential pair

The solution arrived with the HDMI 2.1 specification and the introduction of the Enhanced Audio Return Channel (eARC). Rather than relying on a single pin and the legacy IEC 60958-1 protocol, eARC fundamentally changes how the cable transmits data. It utilizes a dedicated differential pair to move the audio signal.[2][3]

A differential pair uses two separate wires to transmit inverted versions of the same signal. When the receiving device compares the two wires, it can easily identify and cancel out any electromagnetic interference picked up along the cable. This noise-canceling property allows the hardware to operate at vastly higher clock speeds.[4]

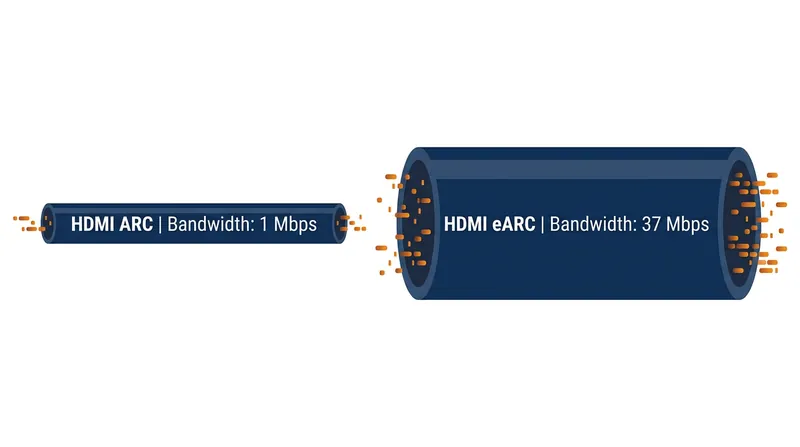

By repurposing the two pins originally assigned to the HDMI Ethernet Channel, eARC creates a high-speed data lane specifically for audio. This physical hardware shift raises the return channel's bandwidth capacity from 1 Mbps to a massive 37 Mbps. The new ceiling perfectly accommodates the 36.86 Mbps required for uncompressed 8-channel audio.[3][4]

"eARC has higher bandwidth (37 Mbps) and adds support for uncompressed (PCM) 5.1 or 7.1 surround sound, Dolby TrueHD and DTS-HD Master Audio passthrough," details the Wikipedia technical documentation on HDMI. The upgraded protocol supports up to 32 discrete audio channels without requiring any lossy compression.[2]

With a 37 Mbps pipeline, soundbars can finally decode lossless Dolby Atmos and DTS:X streams exactly as the studio mixed them. The television no longer acts as a bottleneck, passing the heavy data payload straight through to the audio equipment. This ensures that high-end soundbars receive the acoustic detail they were engineered to reproduce.[3]

Mandatory synchronization and setup

Beyond raw bandwidth, the eARC specification introduces mandatory Lip Sync Correction. Because uncompressed audio packets are so large, processing them can introduce slight delays between the picture and the sound. The eARC protocol forces the television and the soundbar to continuously communicate, ensuring the 37 Mbps audio stream remains perfectly timed with the video on screen.[3]

The upgraded standard also abandons the notoriously unreliable HDMI-CEC protocol for device discovery. Instead, eARC uses its own dedicated data channel to negotiate audio formats. When a user plugs in an eARC soundbar, the devices instantly exchange a precise list of supported codecs, eliminating the need for manual configuration in the television's settings menu.[3]

Cable selection also plays a crucial role in maintaining this 37 Mbps differential pair. While standard ARC can function over older HDMI cables, eARC requires cables with the necessary twisted pairs intact. Consumers must look for cables labeled High Speed with Ethernet or Ultra High Speed to ensure the physical wires for the differential pair actually exist inside the jacket.[2]

If a user attempts to run an eARC signal over a legacy cable lacking the Ethernet pins, the connection will automatically fall back to the standard ARC protocol. The system will instantly revert to the IEC 60958-1 specification, capping the bandwidth at 1 Mbps and forcing the audio back into lossy compression.[4]

Verifying the hardware chain

For consumers, the actionable takeaway is strictly hardware-based. Buying a premium soundbar capable of lossless Dolby Atmos is only half the equation. If the television only features a standard HDMI ARC port, the audio will inevitably be compressed down to the 1 Mbps limit, regardless of the soundbar's capabilities.

To unlock uncompressed surround sound, both the television and the soundbar must explicitly feature the eARC label above their HDMI ports. Only when both devices support the differential pair can the system bypass the legacy bottleneck and deliver the full 37 Mbps audio experience.
