Why Shooting at ISO 800 Produces Cleaner Shadows Than ISO 400 on Modern Cameras

Photographers who underexpose their images at ISO 400 to protect bright highlights routinely ruin their own shadow detail. Pushing those dark areas brighter in editing software reveals a heavy layer of grain that vanishes entirely if the exact same scene is shot at ISO 800.[1][4]

This counterintuitive result stems from a physical hardware switch embedded inside the pixels of nearly every modern digital camera. Rather than simply amplifying a weak signal, the sensor alters its own electrical architecture when it crosses a specific sensitivity threshold.[3]

The mechanism responsible for this shift is called dual conversion gain, a technology that fundamentally changed how complementary metal-oxide-semiconductor image sensors operate. It solves a physics problem that previously forced engineers to choose between capturing bright highlights or clean shadows.[3]

Before this architecture became standard, raising the ISO simply multiplied the voltage coming off the sensor, amplifying both the image data and the baseline electrical interference. Today, crossing that threshold triggers a mechanical change that prevents the interference from being recorded in the first place.[6]

The Role of Floating Diffusion

Every pixel on a modern camera sensor contains a photodiode that collects incoming photons and converts them into an electrical charge. That raw charge must then be converted into a measurable voltage before the camera can process it into digital data.[3][6]

This conversion happens in a microscopic component called the floating diffusion node. The node acts as a temporary holding tank for the electrons, and its physical size—measured as electrical capacitance—dictates how efficiently the charge becomes voltage.[3]

A high-capacitance floating diffusion node acts like a wide, shallow bucket. It can hold a massive number of electrons without overflowing, which allows the camera to record extremely bright highlights at base ISO without clipping the data into pure white.[4]

However, that large capacity comes with a severe penalty in low light. Because the node is so large, a small number of electrons generates only a tiny voltage, which struggles to overcome the baseline electrical noise generated by the camera's own circuitry.[3][6]

Sensor engineers measure this baseline interference as read noise, typically quantified in electrons. At a low ISO setting, the read noise on a modern full-frame sensor hovers around 2.2 electrons, which easily obscures the faint signals captured in the darkest shadows.[2][6]

Disconnecting the Capacitor

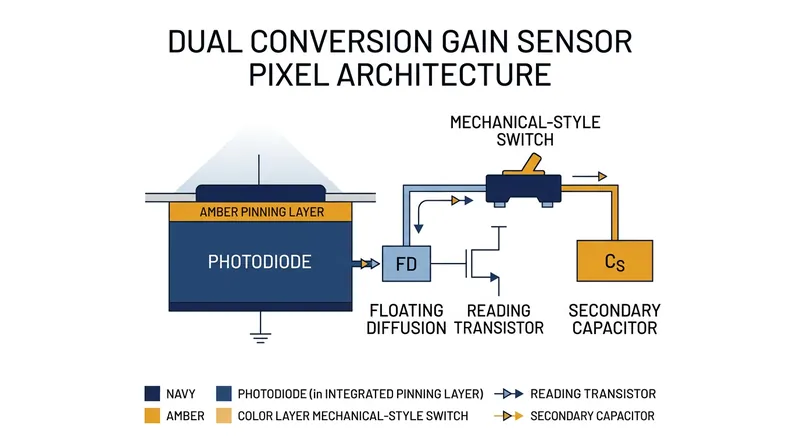

To solve this low-light penalty, engineers split the floating diffusion node into two separate circuits connected by a microscopic switch. At low ISO settings, the switch remains closed, linking the node to an extra capacitor that maximizes the total charge capacity.[3]

When the photographer dials the camera up to a specific sensitivity—often ISO 400 or ISO 800, depending on the model—the camera physically opens the switch. This action disconnects the extra capacitance, instantly shrinking the size of the holding tank.[4]

With the extra capacitor removed, the sensor enters its high conversion gain state. The same small number of captured electrons now generates a much higher voltage, pushing the actual image signal far above the baseline electrical interference of the circuit.[3]

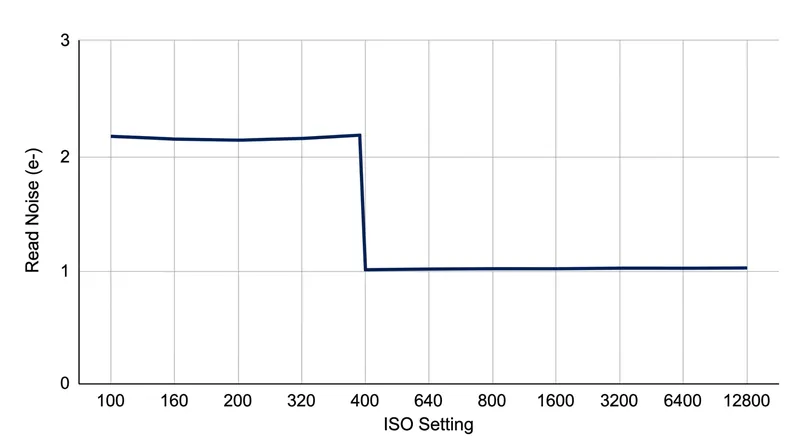

This hardware change causes the read noise to plummet instantly. On a popular sensor like the 24-megapixel Sony IMX410, the read noise drops from 2.14 electrons at ISO 320 down to just 1.02 electrons the moment the camera clicks over to ISO 400.[2]

The result is a massive, immediate improvement in shadow clarity. The electrical interference that would normally speckle the dark areas of the image is cut by more than half, producing a cleaner file at the higher sensitivity setting.[1][2]

The Post-Production Trap

This physical architecture creates a trap for photographers who rely on editing software to fix underexposed images. Many shooters intentionally keep their ISO low in dark environments, assuming that a lower number always guarantees a cleaner final image.[4][5]

If a photographer shoots a dark scene at ISO 400 on a camera where the dual-gain switch activates at ISO 800, the sensor remains in its low-gain, high-noise state. The extra capacitor stays connected, and the read noise remains high.[2][4]

When that photographer opens the raw file in software and pushes the exposure slider up by one stop, the program amplifies everything recorded by the sensor. It multiplies the image data, but it also multiplies the 2.2 electrons of baseline read noise.[1][5]

If the photographer had simply changed the camera setting to ISO 800 in the field, the hardware switch would have disconnected the capacitor. The resulting file would require no software amplification, and the shadows would contain only 1.0 electron of read noise.[1][2]

The software push introduces exactly 110 percent more shadow noise than capturing the scene natively at the higher ISO. The digital amplification cannot bypass the physical state of the sensor at the moment the shutter curtain opened.[1][2]

Mapping the Threshold

Because the dual-gain threshold is a physical hardware feature, it does not change, but its exact location varies wildly between different camera models. High-resolution sensors often trigger the switch earlier than lower-resolution models designed specifically for low-light video.[2]

On the 45-megapixel Canon EOS R5, the high conversion gain circuit engages at ISO 400, dropping the read noise from 2.8 to 1.4 electrons. On the video-centric 12-megapixel Sony A7S III, the switch does not activate until ISO 1600 in still photography mode.[2]

Camera manufacturers rarely advertise these exact thresholds in their marketing materials or user manuals. Independent testing databases, such as Photons to Photos, map these transition points by measuring the input-referred read noise of raw files across the entire ISO range.[2][4]

"The dual conversion gain architecture forces us to rethink the traditional exposure triangle," notes Dr. Eric Fossum, inventor of the CMOS image sensor, in a 2026 IEEE retrospective. "The sensor is no longer a static piece of film; it is a dynamic circuit that changes its physical properties mid-flight."[3]

Identifying this threshold allows photographers to optimize their exposure strategy for their specific hardware. When shooting in challenging light, pushing the ISO exactly to the dual-gain trigger point guarantees the cleanest possible shadows without needlessly sacrificing highlight retention.[1][5]
