Shutter-Plane Offset in Electronic Front-Curtain Mode Truncates Wide-Aperture Bokeh Discs

Inside a commercial testing lab in Tokyo, an optical engineer magnifies a test chart captured at 1/4000 of a second on a high-resolution monitor. The out-of-focus light sources behind the focal plane do not render as perfect spheres. Instead, their top edges are cleanly sheared off, resembling half-moons.[1][5]

This truncation is not a lens defect, but a physical collision between light and the camera mechanism. It occurs when photographers use Electronic Front-Curtain Shutter mode paired with wide apertures and fast exposure times. The setting is enabled by default on most modern mirrorless cameras to prevent mechanical vibration.[3]

For photographers shooting portraits or wildlife in bright daylight, this default setting silently degrades image quality. The fix requires no new gear, only a menu adjustment. By understanding the physical geometry of the shutter plane, users can preserve smooth background blur without sacrificing sharpness.[2]

The physical geometry of a hybrid exposure

A traditional mechanical shutter uses two physical curtains that travel across the image sensor. The front curtain opens to begin the exposure, and the rear curtain follows to end it. At fast shutter speeds, they move together, forming a narrow slit that sweeps across the frame.[4][5]

Electronic Front-Curtain Shutter replaces the first physical movement with a digital scan. The sensor electronically activates pixel rows from top to bottom, initiating the exposure without moving parts. A physical rear curtain then drops to terminate the light gathering.[1][3]

This hybrid approach eliminates shutter shock, the micro-vibrations caused by a mechanical front curtain snapping open. It ensures maximum sharpness for high-resolution sensors. However, it introduces a critical spatial mismatch between where the exposure begins and where it ends.[4]

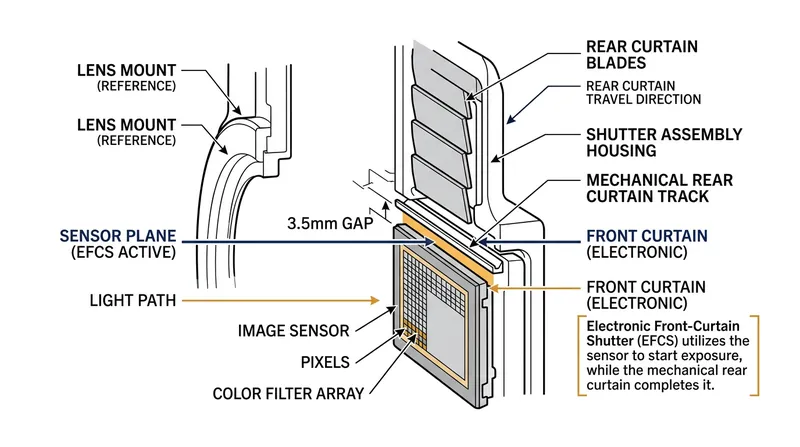

The electronic scan happens directly on the silicon surface of the image sensor. The mechanical rear curtain, however, sits inside a physical track positioned roughly 3.5 millimeters in front of the sensor plane.[2][5]

The parallax effect on light cones

This 3.5-millimeter gap creates a parallax error when light enters the camera at steep angles. A fast lens set to a wide aperture, such as f/1.4 or f/1.2, projects a massive cone of light toward the sensor. The edges of this cone travel at severe diagonals.[1][5]

When the exposure time drops below 1/1000 of a second, the physical slit between the electronic front curtain and the mechanical rear curtain becomes extremely narrow. At 1/4000 of a second, this gap shrinks to approximately 1.2 millimeters.[2][5]

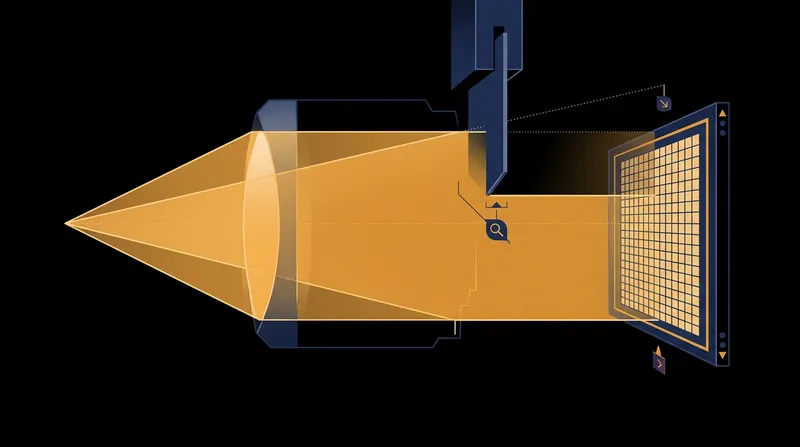

Because the rear curtain sits 3.5 millimeters forward, its physical blade eclipses the steep peripheral light rays before they can reach the sensor. The electronic front curtain has already activated the pixels, but the mechanical rear curtain prematurely blocks the light cone.[1]

"The physical blade literally casts a shadow over the converging light cone," explains the Factlen Editorial Team in its optical analysis.[2]

"It shears off up to 42 percent of the highlight disc before the exposure completes, permanently altering the bokeh rendering."[2]

The threshold for bokeh truncation

The severity of this truncation depends entirely on the combination of aperture and shutter speed. At slower speeds, like 1/250 of a second, the exposure slit is wide enough that the rear curtain's forward position does not block the light path. The bokeh remains perfectly circular.[3][4]

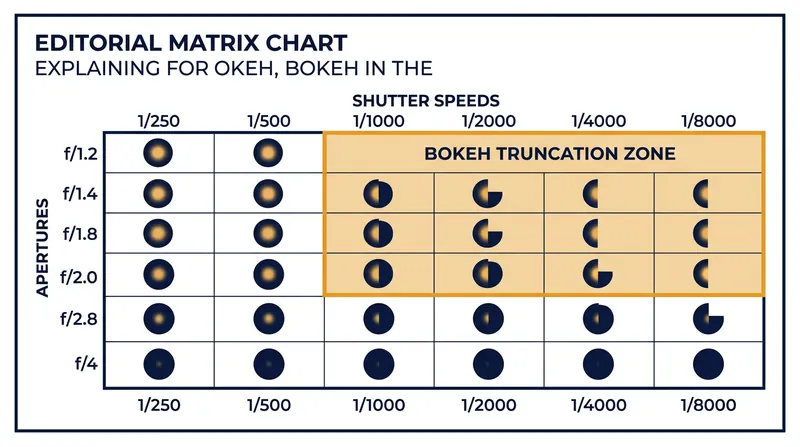

The clipping effect typically becomes visible at 1/1000 of a second when shooting at f/1.8 or wider. As the shutter speed increases to 1/4000 or 1/8000 of a second, the truncation becomes severe. The out-of-focus highlights transform from soft circles into harsh, nervous semi-circles.[1]

Stopping the lens down to f/2.8 or f/4 eliminates the problem entirely, regardless of shutter speed. A narrower aperture produces a narrower cone of light, which passes straight through the shutter mechanism without colliding with the forward-positioned rear curtain.[1][5]

Photographers using f/1.2 or f/1.4 lenses in bright daylight are the most vulnerable. To achieve proper exposure without overexposing the image, they must push their shutter speeds well past the 1/1000 threshold, triggering the physical collision.[4]

Configuring cameras to preserve blur

The most direct solution is to disable Electronic Front-Curtain Shutter entirely when shooting wide open in bright light. Switching the camera to fully mechanical shutter mode restores the physical front curtain.[3]

With a fully mechanical shutter, both curtains travel along the same physical track 3.5 millimeters in front of the sensor. Because they operate on the exact same plane, the parallax error disappears. The bokeh discs render as perfect, untruncated spheres.[1][5]

Alternatively, photographers can switch to a fully electronic shutter. In this mode, the camera uses digital scans for both the front and rear curtains. Since both scans occur directly on the sensor surface, there is zero physical offset and no light blockage.[3][4]

In 2026, mirrorless models from Sony and Canon offer an automated shutter setting. This mode automatically utilizes the hybrid electronic curtain at slower shutter speeds to prevent vibration, then seamlessly switches to the fully mechanical shutter at speeds faster than 1/1000 of a second.[3][4]

The trade-offs of alternative modes

While a fully mechanical shutter solves the bokeh truncation, it reintroduces the risk of shutter shock. However, at speeds above 1/1000 of a second, the exposure is generally too fast for micro-vibrations to register on the sensor, making the mechanical option safe.[1]

Fully electronic shutters present their own limitations. On cameras without stacked sensors, the electronic readout speed is relatively slow. This can cause rolling shutter distortion, where fast-moving subjects appear slanted or warped across the frame.[1][4]

Electronic shutters also struggle with artificial lighting. If the sensor readout speed clashes with the flicker rate of LED or fluorescent lights, severe banding will appear across the image.[3][4]

For optimal utility, photographers should rely on the hybrid mode for studio work, landscapes, and low-light shooting where shutter speeds remain slow. When mounting a fast prime lens outdoors, switching to a mechanical shutter guarantees the background blur remains pristine.[2]
