The MTF Chart's 10 lp/mm and 30 lp/mm Lines: How Lens Contrast and Resolution Dictate Perceived Sharpness

For an MTF chart to be useful, the manufacturer must publish it, and the photographer must know how to read it. A Modulation Transfer Function (MTF) chart is the standard method for quantifying the optical performance of a camera lens. It plots the lens's ability to transfer contrast from the subject to the image sensor, measured from the center of the frame to the extreme corners. The chart achieves this by measuring how well the lens reproduces a test pattern of alternating black and white lines, expressed as a percentage from 0 to 1.0 (or 0% to 100%). A score of 1.0 indicates perfect contrast transfer, a theoretical impossibility for any physical lens due to diffraction and optical aberrations.[1][2]

The test patterns are measured at specific spatial frequencies, defined in line pairs per millimeter (lp/mm). One line pair consists of one black line and one white line. The two most common frequencies used by manufacturers like Canon and Nikon are 10 lp/mm and 30 lp/mm. The 10 lp/mm measurement uses thicker, more widely spaced lines to evaluate the lens's overall contrast. The 30 lp/mm measurement uses finer, more closely spaced lines to evaluate the lens's resolution, or its ability to render fine detail.[1][2]

The 10 lp/mm line on an MTF chart dictates the perceived "punch" or macro-contrast of the resulting image. A high value at 10 lp/mm, typically above 0.8, indicates that the lens can clearly distinguish between broad areas of light and dark. This is the characteristic that makes an image appear sharp at a glance, even when viewed at smaller sizes or printed at standard dimensions. According to Canon, "a lens with a 10 lines/mm curve higher than 0.8 is generally considered to have excellent image quality." If the 10 lp/mm line drops significantly, the image will appear flat, washed out, or hazy, regardless of how much fine detail the lens can resolve.[1][3]

Conversely, the 30 lp/mm line dictates the lens's micro-contrast, or its ability to resolve fine textures like hair, fabric weaves, or distant foliage. A high value at 30 lp/mm, generally above 0.6, indicates excellent resolving power. This metric becomes critical when making large prints or heavily cropping an image. A lens might have excellent macro-contrast (a high 10 lp/mm score) but poor resolution (a low 30 lp/mm score). In this scenario, the image will look punchy at a distance but will lack detail when examined closely. Nikon notes that "the higher the 30 lines/mm curve, the higher the resolution of the lens."[2][3]

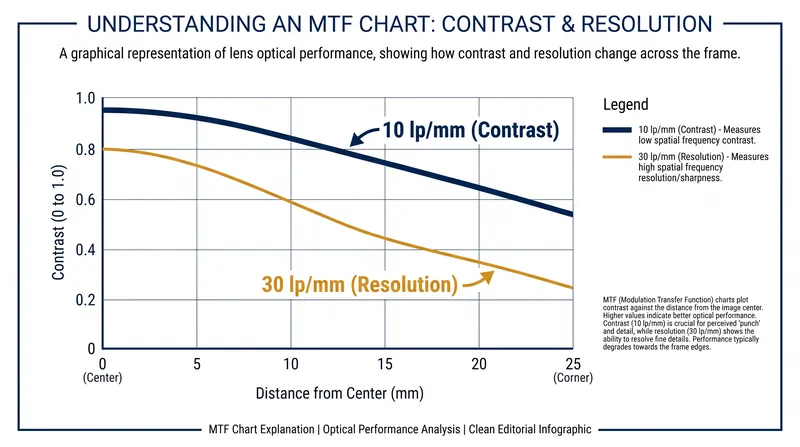

The MTF chart plots these values along the y-axis (contrast transfer from 0 to 1.0) against the distance from the center of the image sensor along the x-axis (measured in millimeters). For a full-frame 35mm sensor, the center is 0mm, and the extreme corner is approximately 21.6mm away. A perfect lens would draw a straight horizontal line at 1.0 across the entire graph. In reality, all lenses exhibit a drop in performance toward the edges of the frame. The rate and severity of this drop indicate the lens's corner sharpness. A curve that remains relatively flat and high across the entire x-axis represents a lens with consistent edge-to-edge sharpness.[1][2]

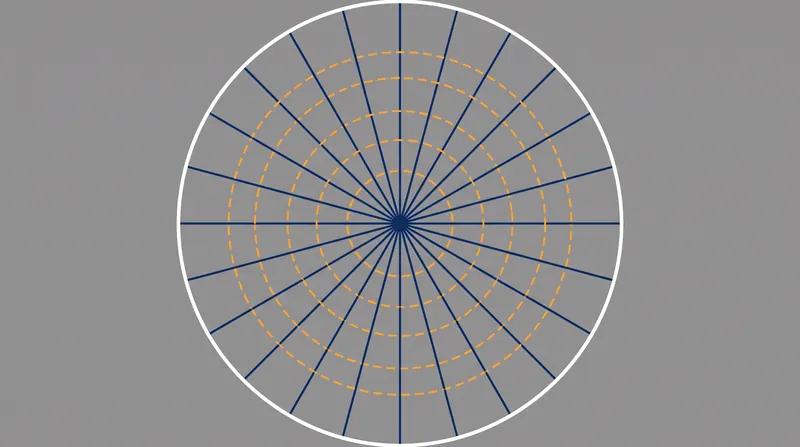

Further complicating the chart, the test patterns are measured in two orientations: sagittal (lines radiating outward from the center, like spokes on a wheel) and meridional (lines running concentric to the center, like a target). These are often plotted as solid lines (sagittal) and dashed lines (meridional). The divergence between the sagittal and meridional lines at a given point on the x-axis indicates the presence of astigmatism, an optical aberration that causes point light sources to smear or blur in a specific direction. A lens with well-controlled astigmatism will have sagittal and meridional lines that track closely together.[1][3]

Manufacturers typically provide MTF charts for a lens at its maximum (widest) aperture and often at a stopped-down aperture, such as f/8. The wide-open performance reveals the lens's optical flaws, as aberrations are most pronounced when the aperture is fully open. Stopping the lens down to f/8 generally improves both contrast and resolution, causing the MTF curves to rise and flatten out. Comparing the wide-open and stopped-down charts illustrates how much the lens benefits from being stopped down. For zoom lenses, manufacturers usually provide charts for both the widest and longest focal lengths.[1][2]

While MTF charts provide objective data, they have limitations. They are calculated based on theoretical designs or measured using flat test targets at specific distances, which may not perfectly reflect real-world performance at infinity or close focus. Furthermore, MTF charts do not measure other critical optical characteristics, such as color rendition, distortion, chromatic aberration, or the aesthetic quality of out-of-focus areas (bokeh). As Cambridge in Colour points out, "MTF charts are a very useful tool, but they are not the only factor to consider when evaluating a lens."[3][4]

The interpretation of an MTF chart also depends on the intended application. A portrait photographer might prioritize a high 10 lp/mm score in the center of the frame for punchy contrast, while accepting a rapid drop-off toward the edges, as the corners are often out of focus anyway. Conversely, a landscape or architectural photographer requires high 30 lp/mm scores that remain consistent across the entire frame to ensure fine detail is captured from edge to edge. Understanding the relationship between the 10 lp/mm and 30 lp/mm lines allows photographers to match the lens's optical profile to their specific needs.[1][5]

Independent testing organizations, such as Lensrentals, often publish their own MTF data based on testing multiple copies of a physical lens, rather than relying on the manufacturer's theoretical calculations. This approach accounts for sample variation and manufacturing tolerances, providing a more realistic picture of the lens's average performance. When comparing MTF charts from different sources, it is crucial to ensure that the testing methodologies and spatial frequencies (lp/mm) are identical, as comparing a 10 lp/mm chart to a 20 lp/mm chart will yield misleading conclusions.[4][5]
