Advertised 300 MB/s Speeds Measure Burst Read Transfers: Why Mirrorless Cameras Abort Video Recording Without a V90 Write Floor

A videographer hits record on a crucial 4K 60fps take, only to watch the camera freeze and display a "Recording Interrupted" error seconds later. The SD card inside the slot boasts a massive "300 MB/s" label printed across its front, yet it still failed to capture the moment.[1][2]

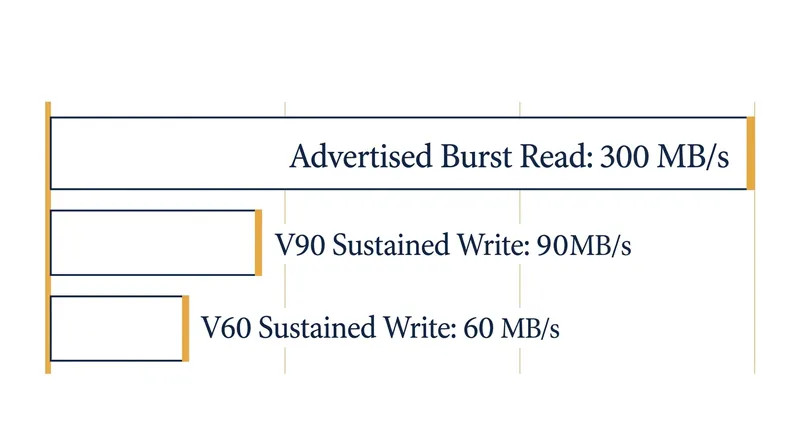

That failure stems from a fundamental mismatch between how memory card manufacturers market their products and how mirrorless cameras actually write video files. The prominent 300 MB/s figure measures burst read transfers, which dictate how fast files move from the card to a computer.[2][7]

Burst read speeds represent a best-case scenario that lasts for only a few seconds at a time. They have absolutely nothing to do with how consistently the memory card can ingest an incoming, continuous stream of heavy video data from a camera's image processor.[2][7]

The Buffer Overflow Mechanism

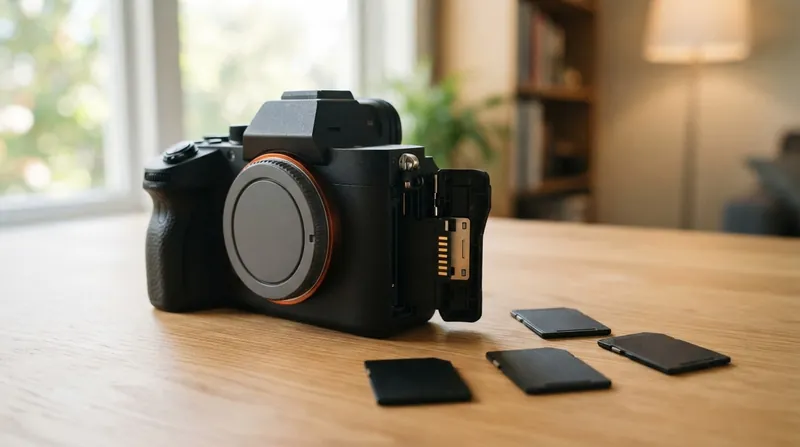

When a mirrorless camera records high-resolution video, it pushes a relentless stream of data into a temporary internal memory buffer. The SD card must pull data from this buffer exactly as fast as the camera fills it to keep the pipeline moving.[1][6]

If the card's sustained write speed drops even momentarily, the incoming data begins to pile up. Once the camera's internal buffer reaches its maximum capacity, the system abruptly aborts the recording to prevent catastrophic file corruption and save the clip's header.[1][6]

To solve this discrepancy and give consumers a reliable metric, the SD Association created the Video Speed Class system. Denoted by a stylized "V" logo on the card, this rating guarantees a minimum sustained write floor that the hardware will never drop below during continuous operation.[3][6]

Unlike peak burst numbers, which fluctuate based on thermal conditions and file sizes, a V-rating represents an absolute baseline. A V30 card guarantees a sustained write speed of 30 megabytes per second, while a V60 card guarantees 60 megabytes per second.[2][3]

The SD Association's V-Class Standard

At the top of the consumer standard sits the V90 classification, which guarantees a continuous write speed of at least 90 megabytes per second. This 50 percent increase over the V60 standard provides the necessary headroom for cameras recording 8K video, high-bitrate 4K, and intense RAW photo bursts.[2][3]

The confusion deepens when buyers attempt to match these card ratings to their camera's specifications, because the two industries use different units of measurement. Camera manufacturers list their video recording bitrates in megabits per second, while SD cards are rated in megabytes per second.[4][5]

Because there are eight bits in a byte, a videographer must divide the camera's advertised bitrate by eight to find the required SD card speed. A standard 4K video codec running at 100 megabits per second only requires 12.5 megabytes per second of sustained write speed, making a V30 card perfectly adequate.[4][5]

However, modern mirrorless cameras feature advanced All-Intra compression formats that capture vastly more data to make post-production editing smoother. Unlike Long GOP codecs that only record the changes between frames, All-Intra codecs compress and save every single frame individually, drastically inflating the file size.[4][5]

Megabits Versus Megabytes

The Sony a7S III, for example, records its highest-quality XAVC S-I 4K format at a massive 600 megabits per second. Other cinema-focused mirrorless bodies feature similar high-bitrate recording modes that push well past the 400 megabits per second threshold.[4][5]

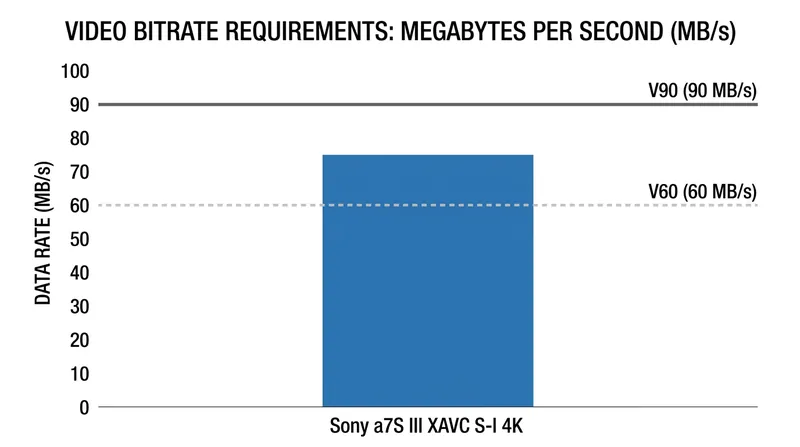

Dividing the Sony's 600 megabits per second bitrate by eight reveals a sustained data stream of 75 megabytes per second. A V60 card, which only guarantees 60 megabytes per second, falls short of this requirement, prompting the camera to either lock out the recording mode entirely or abort the clip mid-take.[4][5]

To capture that 75 megabytes per second stream safely, the user must install a V90 card. The 90 megabytes per second guaranteed floor provides a 15 megabytes per second safety margin, ensuring that the buffer never overflows even if the camera's processor spikes during a highly detailed, fast-moving scene.[3][4]

Some cameras are programmed to be overly cautious, actively reading the SD card's V-rating upon insertion. If a videographer selects a 600 megabits per second codec while a V60 card is loaded, the camera firmware will simply display a warning that the memory card does not support the required movie write speed and refuse to roll.[1][5]

Real-World Camera Requirements

When bitrates exceed even the V90 standard's 90 megabytes per second floor, videographers must abandon the SD format entirely. Recording 4K video at 120 frames per second on the Sony a7S III requires a CFexpress Type A card, which utilizes a PCIe interface to deliver sustained write speeds above 400 megabytes per second.[4][5]

However, for the vast majority of 4K and 8K workflows running at standard frame rates, a V90 SD card remains the most cost-effective professional solution. Maintaining that 90 megabytes per second floor requires sophisticated internal hardware, which explains the steep price premium attached to V90 media.[2][3]

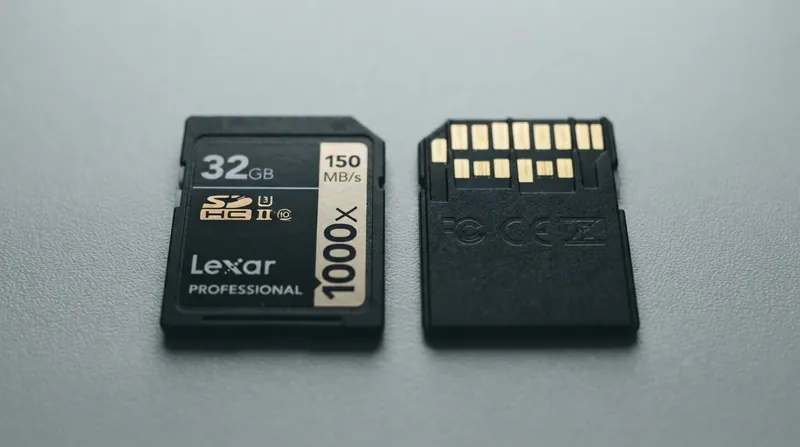

These cards utilize advanced MLC NAND flash memory and specialized controllers designed to manage heat and prevent thermal throttling during long recording sessions. Furthermore, V60 and V90 cards rely on the UHS-II bus interface, which adds a second row of metal contact pins to the back of the SD card.[2][3]

This physical hardware change allows the card to run in Full Duplex mode, processing read and write commands simultaneously. Standard UHS-I cards, which only feature a single row of pins, are physically limited to Half Duplex mode and cap out at the V30 speed class.[3][6]

The Cost of Hardware Reliability

Some budget memory card brands attempt to obscure their lack of a V90 rating by printing aggressive "up to 250 MB/s write" claims on their packaging. Without the official V90 certification from the SD Association, that number remains a peak burst claim with no sustained guarantee.[2][7]

In real-world testing, uncertified cards boasting high peak write speeds often plummet to 15 or 20 megabytes per second once their internal cache fills up after a few seconds of continuous use. This sudden drop in performance is exactly what triggers the dreaded buffer overflow error.[2][7]

For professional videographers, the cost of a failed take far outweighs the price difference between a V60 and a V90 card. The premium buys the certainty that the camera will not stop recording an interview or a live event until the storage capacity is genuinely full.[2][7]

When purchasing media for video production, buyers must ignore the largest number printed on the packaging entirely. The only metric that dictates video reliability is the small V-class logo, and matching that rating to the camera manual's bitrate chart is the only way to secure uninterrupted capture.[1][3]
