4:2:2 vs. 4:2:0 Chroma Subsampling: How Two Numbers Dictate Video Color Grading Flexibility

For independent filmmakers building a camera rig in 2026, the spec sheet presents a hard line: pay a premium for a body that shoots 4:2:2 video, or save thousands by accepting 4:2:0.

The professional consensus insists that 4:2:2 is the absolute baseline for commercial work, arguing that anything less falls apart the moment a colorist applies a heavy grade or attempts to pull a clean green screen key. Conversely, streaming engineers and budget-conscious creators argue that 4:2:0 is visually indistinguishable to the human eye upon final delivery, making the massive storage penalty of 4:2:2 an unnecessary tax on production.[2][3]

This debate hinges on a biological quirk of human vision rather than pure mathematics. The human eye contains significantly more rod cells, which detect brightness, than cone cells, which detect color. Video engineers recognized decades ago that transmitting a full-resolution color image was a waste of bandwidth if the viewer could not perceive the extra data.[1]

To exploit this, digital video separates the image into two distinct channels: luma, representing the brightness or black-and-white foundation of the image, and chroma, representing the color information. Chroma subsampling is the process of discarding a significant portion of that color data while keeping the brightness data entirely intact.[4]

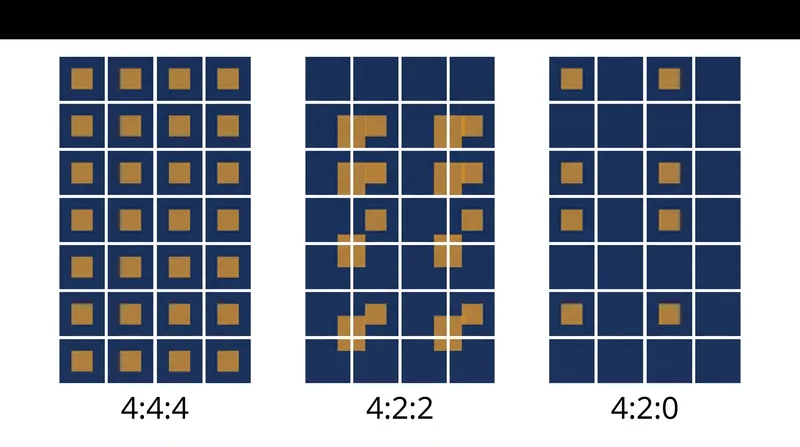

The three-number system—such as 4:2:2 or 4:2:0—describes exactly how much color data is retained in a given block of pixels. The first number, usually a 4, represents the width of the pixel sample block. The second number indicates how many pixels in the top row of that block receive unique color data, and the third number indicates how many pixels in the bottom row receive unique color data.[5]

In a 4:4:4 signal, every single pixel receives its own unique luma and chroma data. This is the uncompressed ideal, used in high-end cinema cameras and high-end visual effects workflows, but it generates file sizes so massive that it remains impractical for standard consumer or prosumer cameras.[4]

Moving down to 4:2:2, the camera retains full luma resolution but cuts the horizontal color resolution in half. In a four-pixel-wide block, the top row gets two color samples, and the bottom row gets two color samples. According to Digital Camera World, this means "4:2:2 video retains twice as much color data as 4:2:0," providing a robust file that can withstand heavy manipulation in post-production.[2]

The 4:2:0 specification takes the compression a step further. It cuts the color resolution in half both horizontally and vertically. In that same four-by-two pixel block, only the top row receives two color samples, and the bottom row simply copies them. The result is that 4:2:0 retains only 25 percent of the original color data compared to a 4:4:4 signal, and half as much as a 4:2:2 signal.[1]

Despite this massive data loss, 4:2:0 is the undisputed standard for final delivery. Every video streamed on YouTube, every movie watched on Netflix, and every Blu-ray disc sold relies on 4:2:0 subsampling. LiveAPI notes that for live streaming, 4:2:0 is the default because it drastically reduces the required bitrate without degrading the perceived image quality for the end viewer.[5]

The critical distinction arises not during playback, but during post-production. When a video editor attempts to push the colors of a 4:2:0 file—perhaps to warm up a poorly lit scene or recover detail in a shadow—the lack of underlying color data becomes immediately apparent. The image will often break, exhibiting blocky artifacts, banding in smooth gradients like skies, and unnatural color shifts.[2]

This fragility is why 4:2:2 is heavily favored for color grading. The additional color data provides a buffer, allowing the editor to stretch and manipulate the image without exposing the compression. Inverity's 2026 analysis highlights that for tasks requiring precise edge detection, such as isolating a subject against a green screen, the halved vertical color resolution of 4:2:0 creates jagged, imprecise edges that are notoriously difficult to mask cleanly.[4]

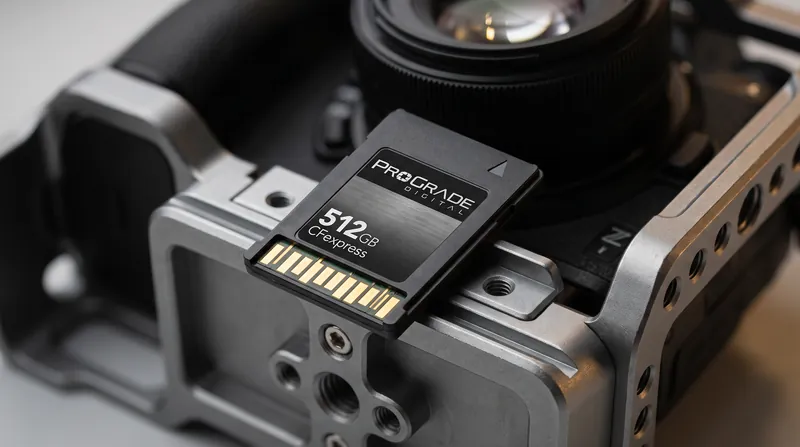

However, the flexibility of 4:2:2 comes at a steep cost in storage and processing power. Because it retains twice the chroma data of 4:2:0, the resulting video files are significantly larger. A creator shooting a multi-hour documentary in 4K 4:2:2 will fill terabytes of expensive CFexpress cards and require a substantially more powerful editing workstation to scrub through the footage smoothly.[3]

The conversation around subsampling is also inextricably linked to color depth, specifically the jump from 8-bit to 10-bit color. While subsampling dictates the spatial resolution of the color, bit depth dictates the total number of possible colors. An 8-bit file can display roughly 16.7 million colors, whereas a 10-bit file can display over 1.07 billion.[1]

In recent years, camera manufacturers have begun offering 10-bit 4:2:0 recording as a middle ground. This combination provides the smooth gradients and massive color palette of 10-bit, preventing the dreaded banding in skies, while maintaining the manageable file sizes of 4:2:0 subsampling. For many creators, this hits the sweet spot between flexibility and efficiency.[2]

The choice between 4:2:2 and 4:2:0 dictates the entire post-production pipeline. Buyers investing in a camera strictly for capturing family events, recording long-form interviews with controlled lighting, or streaming directly to the web will find 4:2:0 perfectly adequate, saving money on both the camera body and the required storage.[5]

Conversely, professionals shooting commercial work, music videos, or any project destined for heavy color grading and visual effects must treat 4:2:2 as a non-negotiable requirement. The initial investment in storage and processing power is the necessary price for an image that will not fall apart when pushed to its limits in the editing suite.[6]
