The Physical Geometry of Inner Groove Distortion on Vinyl Records

Listeners who notice their vinyl records sounding harsh or muddy during the final tracks are hearing a physical geometry failure, not a damaged pressing. As the tonearm moves toward the center label, the physical space available to store high-frequency audio shrinks by nearly 60 percent.

Since the standardization of the microgroove LP in 1948, a 33 1/3 RPM record spins at a constant angular velocity. However, the outer edge covers much more physical distance per rotation than the inner edge near the label.

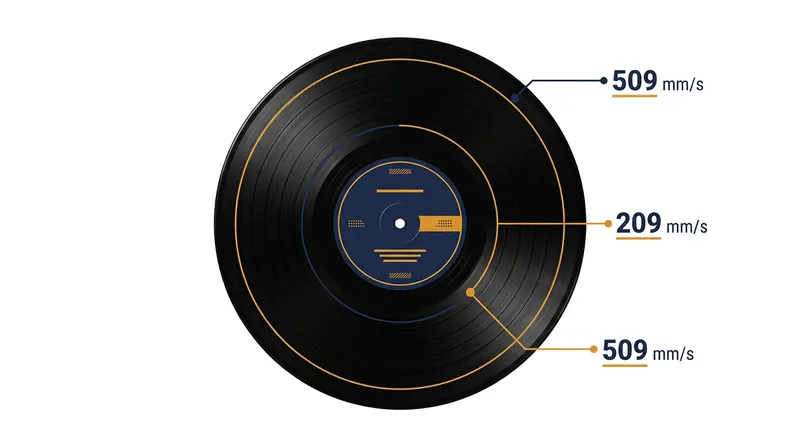

At the outer groove, the vinyl moves under the needle at about 509 millimeters per second. Near the label, that linear speed drops drastically to just 209 millimeters per second.[1][3]

The Wavelength Compression Problem

Because the inner groove moves slower, the exact same amount of audio information must be packed into a much shorter physical distance. The waveforms become tightly compressed, creating steep, narrow curves in the vinyl.

A 15-kilohertz high-frequency tone at the outer edge stretches across a comfortable 34 microns of vinyl. At the inner groove, that exact same tone compresses to a microscopic 13.9 microns.[4]

This physical compression creates incredibly dense groove walls. Instead of a gentle, sweeping wave, the high-frequency information resembles a tight, jagged zigzag that challenges the physical limits of playback equipment.

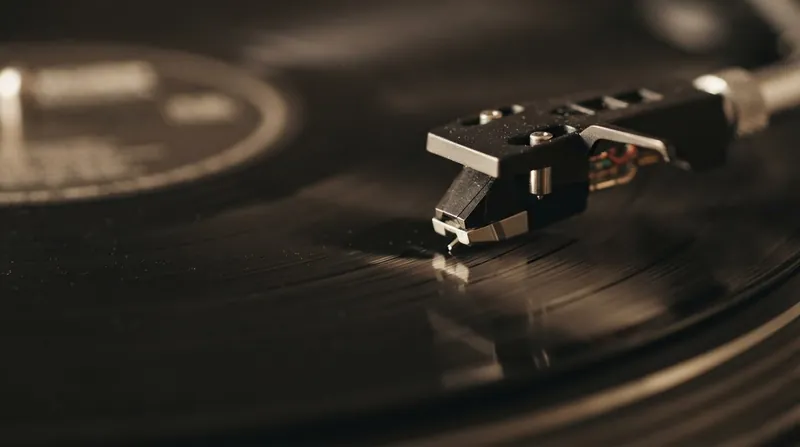

The cutting lathe that originally creates the record has no problem carving these tiny shapes. The cutting stylus is shaped like a sharp chisel, slicing precise high-frequency details into the lacquer regardless of the groove radius.[1]

The Conical Stylus Bottleneck

Playback is where the geometry fails. Most entry-level turntables ship with a conical stylus, which features a spherical tip with a standard tracing radius of 18 microns, or 0.7 mil.

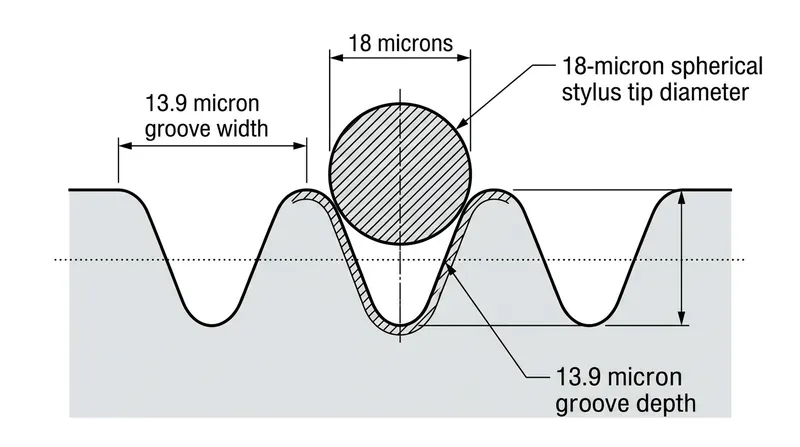

When an 18-micron spherical tip encounters a 13.9-micron waveform at the inner groove, it cannot physically fit inside the curve. The needle is literally wider than the wave it is trying to read.[4]

Instead of tracing the intricate path, the conical tip bridges the gap between the peaks of the groove wall. It rides up and down over the compressed waves, a phenomenon known as the "pinch effect."[3]

"The spherical tip is unable to trace the finer high-frequency modulations of the inner grooves, resulting in a loss of high-frequency response and an increase in distortion," states Audio-Technica's technical documentation.

This physical inability to track the groove translates directly into inner groove distortion. Cymbals sound like static, vocal sibilance becomes harsh, and the overall soundstage collapses into a muddy blur.[2]

Upgrading the Contact Area

Fixing this distortion requires changing the shape of the needle, not adjusting the turntable's tracking force or alignment. A sharper profile is necessary to read the compressed inner grooves without bridging the peaks.

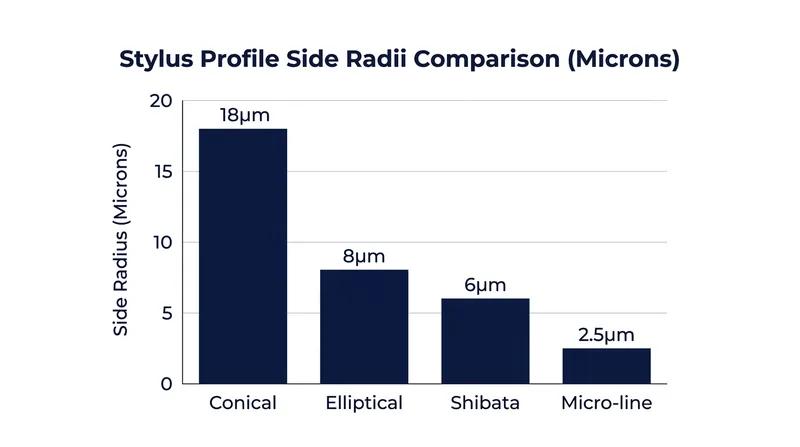

Elliptical styli solve the immediate geometry problem by using a dual-radius design. While the front of the needle remains wide to sit properly in the groove, the side radius is shaved down to as little as 5 microns.

This narrower side profile allows the elliptical tip to slip into the tight, 13.9-micron high-frequency waveforms near the record label, tracing the complex modulations that a spherical tip would simply skip over.[4]

Advanced shapes like micro-line or Shibata styli take this further, featuring side radii as narrow as 2.5 microns. These profiles mimic the shape of the original cutting lathe, retrieving high-frequency detail flawlessly.[2]

Trade-offs in Advanced Profiles

While advanced stylus shapes eliminate inner groove distortion, they require precise mechanical alignment. A conical stylus is a perfect sphere, meaning its orientation in the groove is highly forgiving of user error.

A micro-line or Shibata stylus must sit perfectly parallel to the groove walls. If the cartridge is slightly twisted, the sharp edge of the diamond will carve into the vinyl, permanently damaging the high-frequency information.[2]

These advanced profiles also dig deeper into the groove, bypassing surface scratches but potentially unearthing settled dust and debris that a wider conical needle would simply glide over.

Consequently, listeners upgrading to eliminate inner groove distortion must commit to rigorous record cleaning and precise tonearm geometry calibration using an alignment protractor.[1]

The Mastering Compromise

Record producers have understood this physical limitation for decades. To mitigate inner groove distortion for listeners with basic equipment, mastering engineers sequence albums strategically based on linear velocity.

High-energy, treble-heavy tracks are placed at the beginning of a side, where the 509 millimeters per second linear speed provides ample physical space for complex waveforms.[3]

Ballads, acoustic tracks, or quieter songs are sequenced at the end of the side. Lower frequencies and quieter volumes require less physical groove modulation, making them easier for a conical stylus to trace.[1]

When an artist demands a loud, complex track at the end of a side, the mastering engineer must often reduce the overall volume or roll off the extreme high frequencies to prevent the cutting lathe from creating untraceable geometry.[4]
