The Output Bottleneck: How THD, THD+N, and SNR Dictate Audio Equipment Fidelity

The moment an analog audio signal passes through an amplifier's output stage, its fidelity is permanently locked. The silicon transistors or vacuum tubes inside the chassis either preserve the original waveform exactly, or they add harmonic artifacts and thermal noise that no downstream speaker can ever remove. For consumers buying high-fidelity equipment in 2026, the difference between a pristine listening experience and a muddy one is dictated entirely at this bottleneck.[9]

Navigating the specifications of modern audio gear requires decoding three specific metrics that manufacturers use to quantify this degradation: Total Harmonic Distortion (THD), THD plus Noise (THD+N), and Signal-to-Noise Ratio (SNR). These numbers determine whether an amplifier actually delivers the clean power it advertises, or if it masks an underlying hiss beneath a high wattage rating.[2][6]

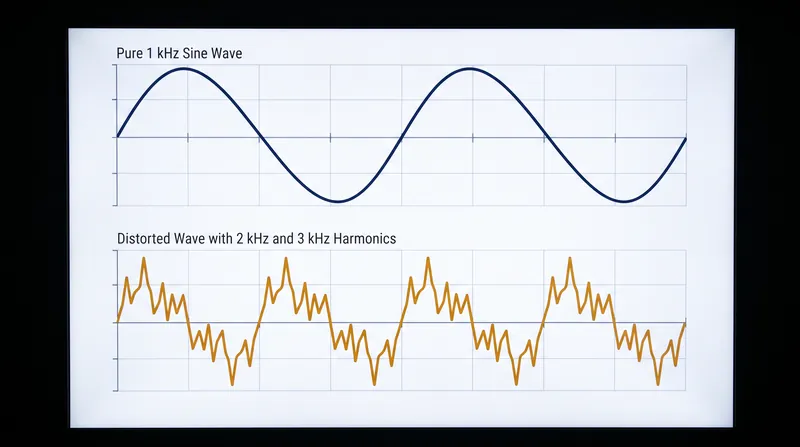

Total Harmonic Distortion measures the spurious signals created by the equipment itself. When a pure 1 kHz test tone enters an amplifier, a perfect device outputs only that 1 kHz tone. Real-world devices, however, generate additional tones at multiples of the original frequency—2 kHz, 3 kHz, and 4 kHz. THD is the mathematical ratio of the sum of the powers of all these harmonic frequencies to the power of the fundamental frequency.[1][6]

As Bandwidth Audio noted in their 2021 technical guide, "Not all distortion is created equal." The human ear processes different harmonics in vastly different ways. Even-order harmonics, like the second harmonic at 2 kHz, are musically related to the fundamental tone by an exact octave. They often sound warm or pleasing, which is why vintage tube amplifiers remain highly sought after despite measuring poorly on paper.[1]

Odd-order harmonics, conversely, introduce harsh, dissonant sounds that fatigue the listener. Solid-state amplifiers tend to produce these odd-order artifacts when pushed to their limits. Therefore, a raw THD number of 0.5% does not tell the buyer whether the distortion will sound like a pleasant vintage coloration or a grating metallic edge.[1][9]

Because THD alone ignores the underlying hiss of the electronics, the industry standard shifted to THD+N. This metric captures both the harmonic artifacts and the broadband thermal noise generated by the circuitry. According to the AES17 standard published by the Audio Engineering Society in 1998 and reaffirmed in 2004, standard THD+N measurements should employ a 20 kHz low-pass filter to ensure that ultrasonic noise does not skew the results for equipment operating in the human hearing range.[7]

"THD+N is the most common measurement of distortion in audio equipment," explains the engineering documentation from MathWorks. By tracking a sweeping tone and measuring everything else that appears at the output, engineers can plot exactly how an amplifier behaves across the entire 20 Hz to 20 kHz audible spectrum.[3]

The distinction between THD and THD+N becomes critical when evaluating manufacturer claims. A company might advertise a remarkably low THD of 0.005%, but if the amplifier has a poorly isolated power supply, the 60 Hz mains hum will ruin the listening experience. THD+N forces the manufacturer to account for that hum, providing a much more honest assessment of the device's transparency.[4][8]

Signal-to-Noise Ratio (SNR) isolates the noise floor entirely, measuring the gap between the maximum undistorted signal the device can produce and the residual noise it makes when sitting idle. A high-fidelity Digital-to-Analog Converter (DAC) in 2026 typically boasts an SNR exceeding 115 decibels (dB), meaning the background hiss is 115 dB quieter than the loudest peak.[4][6]

Texas Instruments provides a clear example of how these metrics interact in real-world silicon. Their TAS5630B Class-D amplifier datasheet specifies a pristine THD+N of just 0.03% when delivering 1 watt of power into a 4-ohm load. At this level, the distortion is entirely inaudible to human ears, providing a transparent window into the recording.[5]

However, the same datasheet reveals the marketing trick used across the audio industry. The chip is sold as a "300-W Stereo" amplifier, but it only achieves that 300-watt output at a THD of 10%. At 10% distortion, the audio is severely clipped and unlistenable for high-fidelity purposes. The actual clean power limit—where THD+N remains below 1%—is significantly lower.[5][9]

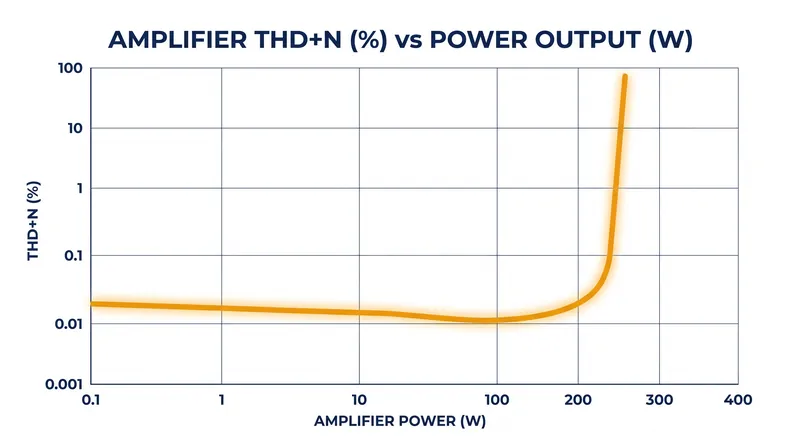

Understanding this curve is the single most actionable takeaway for audio consumers. As audio engineer Tomi Nihtilä wrote in 2017, "THD+N vs. amplitude is probably the most important single graph to understand how an audio device performs." The graph typically shows noise dominating at very low power levels, followed by a wide valley of pristine performance, before hitting a steep "knee" where distortion skyrockets as the amplifier runs out of voltage headroom.[8]

To guarantee a transparent listening experience, buyers must look past the headline wattage. If a speaker setup requires 50 watts for dynamic orchestral peaks, purchasing an amplifier rated for 50 watts at 10% THD guarantees a distorted climax. The equipment must be capable of delivering those 50 watts while remaining firmly in the valley of the THD+N curve, typically requiring an amplifier rated for 100 watts or more.[8][9]
