How Red LED Bandwidth Limits Cap Optical Toslink Audio at 96 kHz

Audio enthusiasts configuring their home theater receivers can easily select 192 kHz high-resolution output in their streaming apps, but the hardware standard they rely on often fails to deliver it. When users connect their devices using a standard optical Toslink cable, the audio frequently clips, stutters, or drops out entirely.[1][2]

The culprit is not the plastic fiber optic cable itself, but the physical light-emitting diode inside the transmitter port. While the Sony/Philips Digital Interface (S/PDIF) protocol supports 192 kHz audio, the cheap red LEDs used in most consumer optical ports cannot blink fast enough to transmit it.[1][2]

The Origins of Toshiba Link

The Toslink standard, originally developed by Toshiba in 1983, was never designed for high-resolution audio. It was created to connect CD players to receivers, transmitting a 44.1 kHz, 16-bit stereo signal.[2][4]

At the time, using light to transmit audio was a revelation. It provided complete electrical isolation between components, eliminating the ground loops and 60 Hz hum that plagued analog RCA connections.[2][4]

To keep costs low for consumer electronics, Toshiba opted for inexpensive 650-nanometer red LEDs and 1-millimeter plastic optical fiber. This combination was perfectly adequate for the 2.8 Mbps data rate required by early compact discs.[2][4]

As digital audio evolved to support 48 kHz DVD audio and eventually 96 kHz studio masters, manufacturers pushed the original red LEDs to their absolute physical limits. The hardware was stretched far beyond its initial design parameters.[2][4]

The S/PDIF Protocol and Biphase Mark Code

To understand why optical ports choke on 192 kHz audio, one must look at how S/PDIF packages digital sound. The protocol sends two channels of uncompressed audio, along with clock timing and status bits, in a continuous stream.[1]

Every audio sample is packaged into a 64-bit frame, containing 32 bits for the left channel and 32 bits for the right. Because the clock signal travels inside the data stream, the receiver recovers the timing directly from the incoming pulses.[1]

S/PDIF uses a transmission scheme called biphase mark code. In this system, every bit interval starts with a voltage or light transition. A digital "0" has no further changes, while a digital "1" includes a second transition right in the middle of the interval.[1]

This means the transmitter must be capable of switching on and off twice as fast as the base data rate. If the light source cannot transition cleanly, the receiver cannot distinguish a "1" from a "0," and the audio stream collapses.[1][4]

The Math Behind the 96 kHz Ceiling

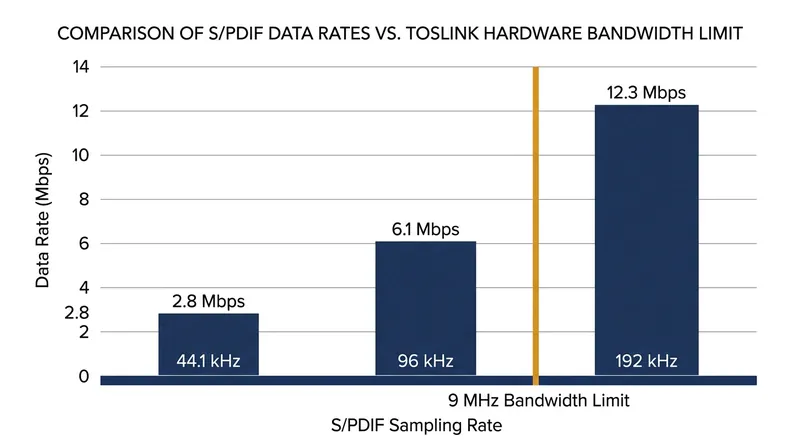

When the sample rate increases to 96 kHz, the S/PDIF data bit rate scales up to exactly 6.144 Mbps. At this speed, each bit interval lasts approximately 163 nanoseconds.[1][4]

To clearly transmit the mid-interval transition of a "1" bit, the optical transmitter needs a rise time of about 40 nanoseconds. This 40-nanosecond requirement corresponds to a circuit bandwidth of roughly 6 to 9 MHz.[2][4]

Standard consumer Toslink ports use red LEDs that naturally top out at exactly this 9 MHz bandwidth limit. They can successfully transmit 96 kHz audio, but they operate at the very edge of their physical capabilities.[2][4]

When users attempt to push a 192 kHz stream through that same port, the required data rate doubles to 12.288 Mbps. The bit intervals shrink to just 81 nanoseconds, demanding a rise time of 20 nanoseconds and a bandwidth of at least 12 to 18 MHz.[2][4]

Why Red LEDs Fail at 192 kHz

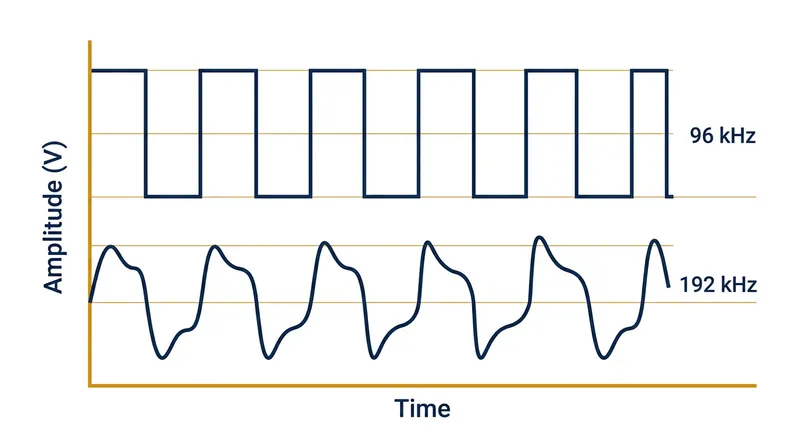

Standard red LEDs simply do not have the physical slew rate to handle 12.288 Mbps. When forced to blink that quickly, the LED cannot reach full brightness or turn off completely before the next transition occurs.[2][4]

Instead of sending crisp, square pulses of light down the fiber, the overtaxed LED produces a smeared, undulating wave. The optical receiver at the other end of the cable sees this blurred signal and struggles to identify the bit boundaries.[2][4]

Some high-end audio manufacturers bypass this limitation by installing premium optical transceivers with faster rise times. However, the vast majority of consumer televisions, soundbars, and budget digital-to-analog converters use inexpensive transmitter blocks that strictly cap out at 96 kHz.[2][4]

Even if a premium transmitter is used, the plastic optical fiber itself can become a bottleneck over long distances. While glass fiber can maintain the sharp pulse edges required for 192 kHz, standard plastic cables disperse the light, further smearing the signal.[2][4]

The Illusion of 192 kHz Support

Many consumers believe their optical connections are successfully transmitting 192 kHz audio because their streaming app or operating system displays that sample rate. However, the software interface only reflects what is being sent to the audio driver, not what physically exits the port.[4]

In many cases, the operating system's audio mixer silently downsamples the 192 kHz stream to 96 kHz or 48 kHz before it ever reaches the optical transmitter. The user sees a high-resolution badge on their screen, but the hardware is transmitting a standard-resolution signal.[4]

Because this bandwidth bottleneck is a physical hardware limitation rather than a corporate policy decision, no engineers or standards bodies are directly quoted in the reference material. The constraints are instead documented entirely through component datasheets and protocol specifications.[4]

The Receiver's Phase-Locked Loop

When a smeared 192 kHz optical signal reaches the DAC, the burden falls on the receiver's phase-locked loop. This control system is responsible for locking onto the incoming biphase mark code and extracting the audio clock.[3][4]

If the light pulses are too blurred, the phase-locked loop cannot maintain a stable lock. This instability manifests as severe timing errors, known as jitter, which degrade the audio quality before the signal drops entirely.[3][4]

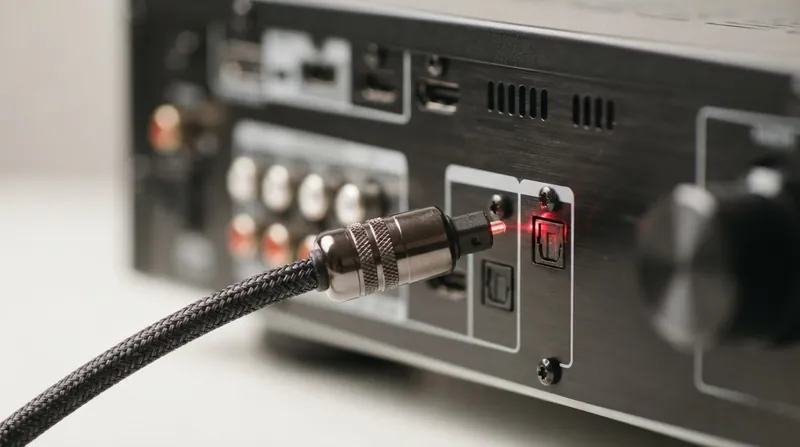

Many dedicated digital audio receiver chips, such as the Texas Instruments DIR9001, are explicitly rated for a maximum sampling frequency of 108 kHz. If a 192 kHz signal hits one of these receivers, the chip simply rejects the data, resulting in total silence.[3]

Users often mistakenly blame their fiber optic cables for these dropouts. While a severely kinked or damaged plastic fiber can attenuate the light, the 96 kHz bottleneck is almost always dictated by the LED transmitter and the receiver chip, not the cable medium.[2][4]

Coaxial and USB Alternatives

Audio enthusiasts who require 192 kHz playback must abandon standard optical connections in favor of higher-bandwidth alternatives. Coaxial S/PDIF, which transmits the exact same data stream over a 75-ohm electrical cable, easily handles 192 kHz.[1][4]

Because coaxial connections use electrical voltage rather than light, they do not suffer from the rise-time limitations of cheap red LEDs. A standard RCA digital cable can cleanly transmit the 12.288 Mbps square waves required for high-resolution audio.[1][4]

However, coaxial cables lack the electrical isolation provided by optical fiber, making them susceptible to ground loops and electromagnetic interference. For users connecting a computer to a DAC, asynchronous USB is generally the superior choice.[4]

USB connections bypass the S/PDIF protocol entirely, allowing the DAC to control the timing clock. This eliminates transmission jitter and easily supports sample rates of 192 kHz, 384 kHz, and beyond, delivering high-resolution audio without the optical bottleneck.[4]
