Near-Infrared Absorption by Dark Dyes Mimics Open Voids: Why Robot Vacuum Cliff Sensors Strand on Black Rugs

The user sees a flat, decorative rug; the robot vacuum sees a bottomless pit. When a high-end autonomous cleaner approaches a dark carpet, it often stops dead, refusing to cross the threshold. This standoff pits the machine's hard-coded safety protocols against the homeowner's interior design choices.[4][5]

Instead of cleaning the surface, the robot reverses frantically, spins in place, and eventually halts. It then sends a "cliff sensor error" notification to the user's smartphone, despite sitting in the middle of a perfectly level room. The machine is not broken; it is functioning exactly as engineered.[4]

The root cause is not a software glitch or a mapping failure. It is a fundamental collision between the physics of light and the chemistry of textile dyes. To understand why a sophisticated appliance is defeated by a standard rug, we have to examine how the robot perceives the floor.[7]

Robot vacuums are designed to operate unsupervised in multi-level homes. To prevent a heavy machine from tumbling down a flight of stairs and causing damage, robotics engineers equip them with downward-facing cliff sensors. These components act as the vacuum's primary safety mechanism.[6]

How Cliff Sensors See the Floor

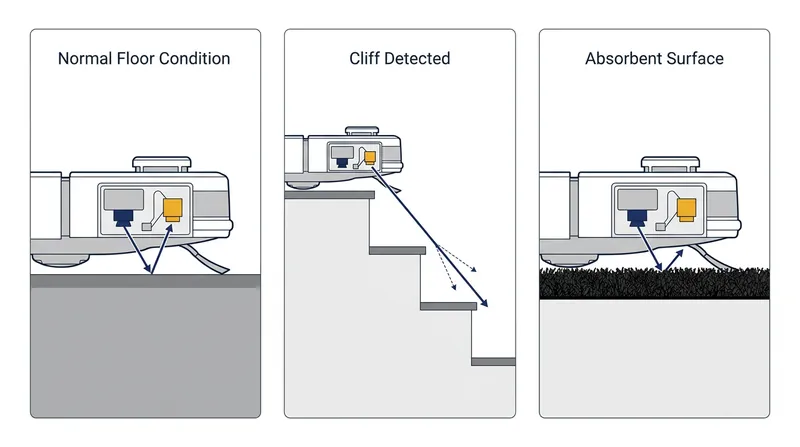

These sensors sit on the underside of the chassis, typically positioned near the front bumper. Each unit consists of two paired components: an infrared emitter and a photon detector. Together, they continuously measure the distance between the robot's undercarriage and the ground.[6]

The emitter fires a concentrated beam of near-infrared light downward. If a solid floor is present, the light strikes the surface and bounces back up into the detector within a fraction of a second. This continuous return signal tells the processor that the ground is safe.[6]

If the robot drives over a staircase, the distance to the floor suddenly increases. The emitted light scatters into the open space, and the return signal drops below a hard-coded threshold. The detector registers a sudden absence of reflected photons.[6]

When the detector registers this signal void, the robot's processor instantly cuts power to the drive wheels. This safety halt overrides all other navigation commands, forcing the machine to back away from the perceived ledge before its center of gravity crosses the drop-off.[6]

The Chemistry of Black Dyes

The problem arises from how textile manufacturers dye rugs black. The most common and cost-effective pigment used in the industry is carbon black. This chemical compound is exceptionally efficient at absorbing visible light, which spans wavelengths from 400 to 700 nanometers.[2]

That total absorption of visible light is what makes the rug look deeply black to the human eye. However, carbon black's absorption profile does not stop at the edge of human vision. It continues deep into the near-infrared spectrum, absorbing wavelengths up to 2,500 nanometers.[2]

This invisible optical property is entirely irrelevant for interior design, but it becomes a critical failure point for robotics. When a vacuum attempts to navigate the surface, the rug's chemical composition actively works against the machine's primary safety hardware.[7]

The Wavelength Collision

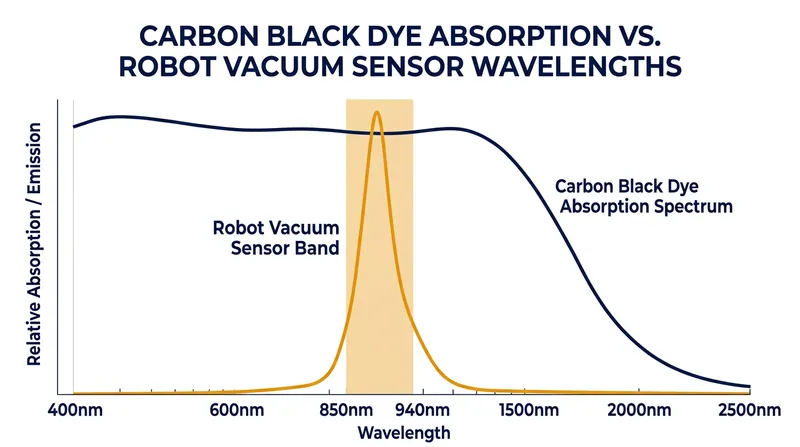

Most commercial robot vacuum cliff sensors operate at specific near-infrared wavelengths, typically calibrated between 850 and 940 nanometers. This range is invisible to humans but perfectly suited for bouncing off standard wood, tile, and light-colored carpets.[3][6]

When the robot drives onto a carbon-black rug, the emitter fires its 940-nanometer beam downward. Instead of bouncing back to the detector, the near-infrared light is entirely absorbed by the dark dye. The physical surface is there, but the optical reflection is gone.[2][4]

The detector waits for a reflection that never arrives. "A very dark or black surface absorbs that light instead of reflecting it, so the sensor reads no floor at all and the robot treats a rug as a drop-off," explains Robotin.[4]

The machine executes its hard-wired safety protocol, reversing away from what it calculates is a dangerous drop-off. It strands itself on the edge of the carpet, trapped by a false positive generated by the rug's specific light-absorbing chemistry.[4]

Why Software Cannot Fix It

Frustrated owners frequently ask manufacturers to release a software update that allows them to disable the cliff sensors via the companion app. They argue that single-story homes have no stairs, making the safety feature entirely redundant and highly disruptive.[5]

Robotics companies universally refuse this request. The liability of a heavy vacuum tumbling down a flight of stairs, potentially injuring a pet or damaging property, is simply too high. The sensors remain permanently active to shield the manufacturer from negligence claims.[7]

Because the sensors are wired directly to the motor controllers as a fail-safe, the navigation algorithm cannot selectively ignore them. Even if the robot's internal LiDAR map shows a flat room, the hardware override takes precedence over the software's spatial awareness.[7]

If the sensor reads a void, the robot stops. The machine cannot cross-reference the cliff alert with its internal map to verify if a staircase actually exists there. The immediate physical sensor data always wins the argument against the stored digital map.[7]

The Tape Workaround and Its Risks

To bypass the restriction, owners often resort to a physical workaround: taping white paper or aluminum foil over the cliff sensors. This modification forces a continuous reflection, bouncing the emitted infrared beam directly back into the detector before it ever leaves the chassis.[5]

This tricks the robot into believing it is always resting on a solid, highly reflective floor. While this allows the vacuum to clean dark rugs without interruption, it completely blinds the machine to actual physical hazards in the environment.[5]

A taped robot will drive straight off a balcony, down a staircase, or into a sunken living room. By defeating the hardware safety mechanism, the user assumes total responsibility for the machine's navigation and any resulting damage from a fall.[5]

This modification also explicitly voids the manufacturer's warranty. If the blinded robot destroys itself in a fall, the owner bears the full replacement cost. Customer support teams routinely check for tape residue on the sensors when processing damage claims.[7]

Engineering a Permanent Solution

A permanent fix requires changing the underlying hardware. Some newer autonomous robots are replacing infrared emitters with ultrasonic sensors. Texas Instruments notes that ultrasonic technology determines distance using high-frequency sound waves, which bounce off the physical density of the rug.[1]

"Ultrasonic technology is able to determine the hardness of a target, based on the strength of the received echo amplitude," the company explains. Because sound waves are immune to optical absorption, black dyes do not trigger false alarms on ultrasonic platforms.[1]

Alternatively, the chemical industry has developed near-infrared transparent black pigments. Companies like Nichwell produce additives that absorb visible light but reflect infrared wavelengths. "Unlike conventional carbon black that absorbs solar radiation and blinds optical sensors, the IRT Series selectively absorbs visible light," the company states.[3]

While these advanced pigments solve the sensor collision, they remain engineered for high-end automotive plastics and cool-roof coatings. They are currently too expensive to replace standard carbon black in mass-market textile dyes, leaving the rug industry largely unchanged.[3]

Until ultrasonic sensors become the universal standard across all price tiers, the conflict between dark textiles and infrared light will persist. For now, the physics of light absorption will continue to strand sophisticated robots on the edges of living room rugs.[7]
