Parasitic Leakage Current Across LED Driver Capacitors: Why No-Neutral Smart Switches Cause Off-State Glow and How Bypass Modules Fix It

Upgrading an older home with smart lighting often introduces a frustrating new electrical anomaly. Homeowners install a sleek new switch, turn off the lights, and find that the LED bulbs refuse to go completely dark.

Instead of turning off, the fixtures emit a faint, continuous ghost glow or a rhythmic, pulsing flash. This behavior is not a sign of a defective bulb or a dangerous wiring fault, but rather a fundamental mismatch in modern electrical engineering.

The issue stems from how smart switches maintain their wireless network connections in homes built before the mid-1980s. These older properties typically lack a dedicated neutral wire in the wall switch box, relying instead on a traditional switch loop.[2]

The Switch Loop and Standby Power

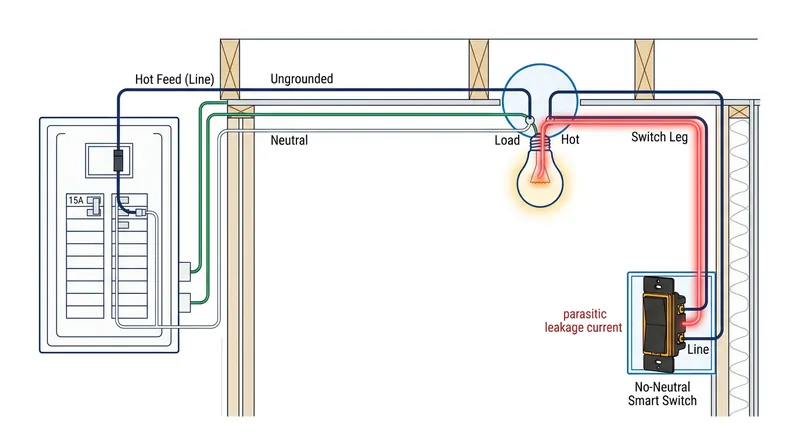

In a standard switch loop, the raw 120-volt power feeds directly into the ceiling fixture first. A two-wire cable then drops down to the wall switch, providing a continuous hot line and a switched leg that carries current back to the bulb.[2]

A traditional mechanical switch physically breaks this circuit, stopping all electron flow. However, a smart switch contains an active microprocessor and a wireless radio that require continuous power to stay connected to the home's Wi-Fi or Zigbee network.[2]

Without a neutral wire to complete an independent circuit, the smart switch must place itself in series with the hot wire. To keep its internal antennas powered, it continuously leaks a microscopic amount of electrical current down the switched leg.[2]

This parasitic leakage current travels straight through the light fixture and back to the electrical panel via the fixture's neutral line. According to electrical component manufacturer Bees Lighting, this continuous trickle typically ranges from two to ten milliamperes.[2]

How LED Drivers Trap Leakage Current

For decades, this parasitic current went entirely unnoticed because incandescent bulbs require significantly more energy to heat their tungsten filaments. A trickle of a few milliamperes simply passes through an incandescent bulb harmlessly, generating no visible light.[1]

Modern LED bulbs, however, operate on highly sensitive solid-state electronic circuits centered around a driver block. These drivers incorporate small smoothing capacitors engineered to store incoming alternating current and convert it into low-voltage direct current.[2]

Because LEDs are incredibly efficient, they require only microamps of electricity to produce visible light. The smart switch's continuous leakage current trickles directly into the LED driver's storage capacitors, charging them up step-by-step even when the switch is nominally off.[1][2]

Once the internal capacitor reaches its maximum capacity, it instantly discharges its stored energy into the LED diode array. This discharge manifests as a brief flash of light, after which the capacitor empties and the charging cycle begins again.[2]

In other driver topologies, the leakage current is just enough to hold the capacitor at its forward voltage threshold. This creates a continuous, faint ghost glow that remains visible in dark rooms, signaling that the circuit is still energized.[1]

As industrial component manufacturer Onpow notes, an LED indicator is highly sensitive to off-state current because its light output does not require the heavy load of older incandescent lamps. A high-impedance input will show a measurable voltage when a mechanical contact appears open.[6]

The Wi-Fi Versus Zigbee Threshold

The severity of this ghosting effect depends heavily on the wireless protocol the smart switch uses to communicate with the network hub. Different communication standards require vastly different amounts of standby power to maintain their active connections.[4][5]

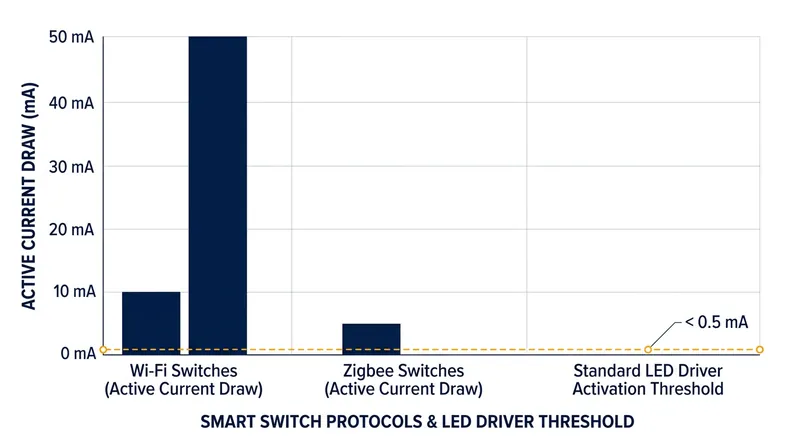

Wi-Fi smart switches are notorious for high power consumption, often drawing ten to fifty milliamperes of active current to keep their radios online. This draw easily overwhelms the activation threshold of standard LED drivers, which often sit around half a milliampere.[5]

By contrast, Zigbee switches utilize a low-power mesh protocol designed specifically for home automation. In active mode, a Zigbee switch might draw as little as five milliamperes, significantly reducing the volume of leaked current passing through the fixture.[5]

"The transmission rate of Zigbee can meet the signal transmission needs of the vast majority of smart home devices," notes Phixson, a smart home manufacturer. This efficiency makes Zigbee switches less likely to trigger ghosting in higher-wattage LED fixtures.[4]

However, if the total LED load on the circuit falls below ten watts, even the microscopic leakage from a Zigbee switch can cause instability. In these low-load scenarios, the driver simply cannot dissipate the trickle current fast enough.[3]

Shunting Current With a Bypass Module

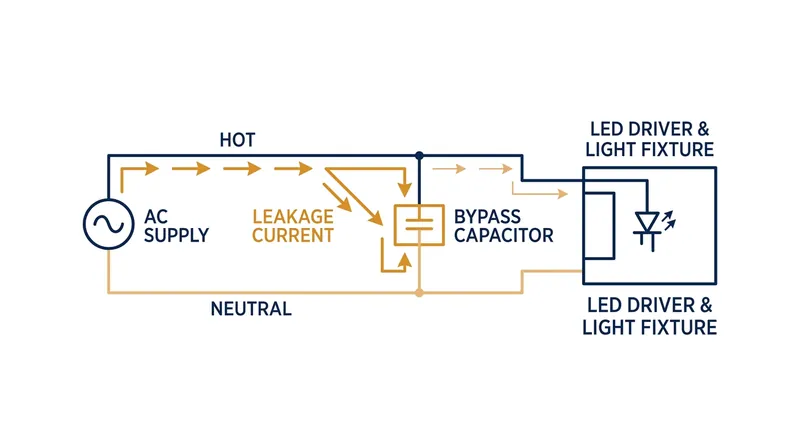

To eliminate the flickering and glowing, electricians install a small electronic component known as a bypass capacitor or a load resistor. This module is spliced directly across the fixture's hot and neutral leads within the ceiling junction box.[1][2]

The bypass capacitor acts as an alternative pathway of lower electrical resistance. It safely shunts the smart switch's phantom current away from the sensitive LED driver circuit, allowing the current to return to the panel without charging the bulb.[2]

"A bypass capacitor is a small electronic component that provides stable power to no-neutral smart dimmers by diverting trickle current away from low-power loads," explains Repenic, a manufacturer of Zigbee dimmer switches. It ensures smooth operation in two-wire circuits.[3]

These devices, often marketed as ghosting fix adapters, typically utilize an X2 safety-certified capacitor rated between 0.1 and 0.47 microfarads. They store and supply the minimal power the switch needs internally, ensuring elegant performance without illuminating the diodes.[1][3]

Installation and Load Limitations

Installing a bypass module requires accessing the ceiling junction box, as it must be wired in parallel with the light fixture itself. It cannot be installed at the wall switch, because the neutral wire is absent at that location.[2]

While highly effective, bypass capacitors are generally only required for lighting circuits with a total load of less than ten to twenty watts. If a chandelier contains multiple LED bulbs, the combined capacitance is often enough to absorb the leakage naturally.[3]

Homeowners should test their no-neutral smart switches without a bypass first, adding the module only if flickering or glowing occurs. For those planning extensive renovations, pulling a dedicated neutral wire to every switch box remains the most robust long-term solution.[3]
