Dedicated Backhaul vs. Shared Backhaul: How Tri-Band Mesh Wi-Fi Eliminates the 50% Speed Penalty of Dual-Band Systems

When residential internet service providers began rolling out symmetrical gigabit plans at scale in 2024, a structural bottleneck in home networking became immediately apparent. Millions of consumers upgrading their connections discovered that their dual-band mesh Wi-Fi systems could only deliver a fraction of that speed to the far corners of their homes. The issue was not the incoming fiber connection, but the physics of how dual-band mesh nodes communicate with one another.[5]

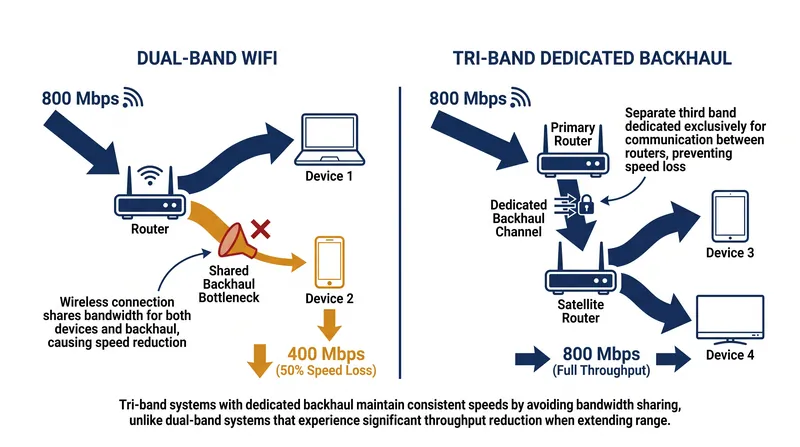

Wi-Fi is a half-duplex technology, meaning a radio can only transmit or receive data at one time, never both simultaneously. None of the reviewed networking guides quote hardware engineers directly, but the mathematical consensus across the industry confirms the limitation: in a standard dual-band mesh system, the satellite node uses the exact same 5 GHz radio channel to talk to your laptop and to relay that data back to the main router. Because it must constantly switch between listening to the device and transmitting to the hub, the available bandwidth is immediately cut by 50 percent at the first wireless hop.[1][7]

This 50 percent speed penalty compounds with every additional node in the chain. If a main router receives 800 megabits per second (Mbps), the first satellite node can only provide 400 Mbps to connected devices. A second satellite daisy-chained to the first drops that throughput to 200 Mbps. For households paying premium rates for high-speed internet, a dual-band mesh system effectively throttles the connection before it ever reaches the end user.[2][6]

Tri-band mesh systems eliminate this penalty by introducing a third distinct radio band—typically a second 5 GHz band or, in newer Wi-Fi 6E and Wi-Fi 7 models, a 6 GHz band. This third band is configured as a "dedicated backhaul," meaning it is used exclusively for router-to-router communication. Client devices like smartphones and televisions connect to the standard 2.4 GHz and 5 GHz bands, while the nodes use the dedicated backhaul as an invisible wireless ethernet cable to pass data back to the modem at full speed.[3][4]

The performance difference is stark in real-world testing. A tri-band system can maintain near-gigabit speeds across multiple wireless hops, preserving the bandwidth required for simultaneous 4K streaming, large file downloads, and low-latency gaming. However, this dedicated hardware significantly increases the manufacturing cost, making tri-band systems substantially more expensive than their dual-band counterparts.[8]

For consumers willing to run physical cables, there is a third option that bypasses wireless limitations entirely: wired ethernet backhaul. By connecting dual-band or tri-band satellite nodes to the main router using Cat6 ethernet cables, the wireless backhaul is disabled. The nodes communicate over the physical wire at full duplex gigabit or multi-gigabit speeds, freeing up all available wireless radios exclusively for client devices.[9]

The decision between these architectures ultimately comes down to the speed of the incoming internet connection and the physical layout of the home. If a household pays for a 300 Mbps connection, a dual-band system's 50 percent penalty still leaves enough overhead to max out the internet plan. The bottleneck only becomes a practical limitation when the internet plan exceeds 500 Mbps, at which point the mesh system becomes the limiting factor.[1][8]

As smart home ecosystems expand to include dozens of always-connected devices, the airwaves inside a typical residence are becoming increasingly congested. Investing in a tri-band system or wiring a dual-band system for ethernet backhaul not only preserves peak download speeds but also reduces latency and packet loss across the entire network, ensuring that high-bandwidth applications do not degrade the performance of basic smart home commands.[2][5]
