Omitting SuperSpeed Differential Pairs Restricts 240-Watt USB-C Charging Cables to 480 Mbps

When purchasing an HDMI cable, a higher bandwidth rating guarantees both a sharper picture and the capacity to carry advanced audio formats. USB-C cables, however, decouple their capabilities entirely. A cable built to deliver the absolute maximum 240 watts of power can simultaneously be restricted to the slowest data speeds from the year 2000.[5]

This discrepancy stems from the physical construction of the cable rather than a software limitation. The USB Implementers Forum designed the Type-C standard to be modular, allowing manufacturers to populate only the internal wires necessary for a cable's intended purpose. As a result, a premium charging cable often lacks the copper required for high-speed data.[1][5]

The Extended Power Range specification, introduced in the USB-C 2.1 update, allows cables to carry up to 240 watts of power. This is achieved by pushing 48 volts at 5 amps across the power pins, enabling the charging of demanding devices like gaming laptops. However, power delivery and data transmission travel down completely different paths.[1][3][4]

The Anatomy of a 24-Pin Connector

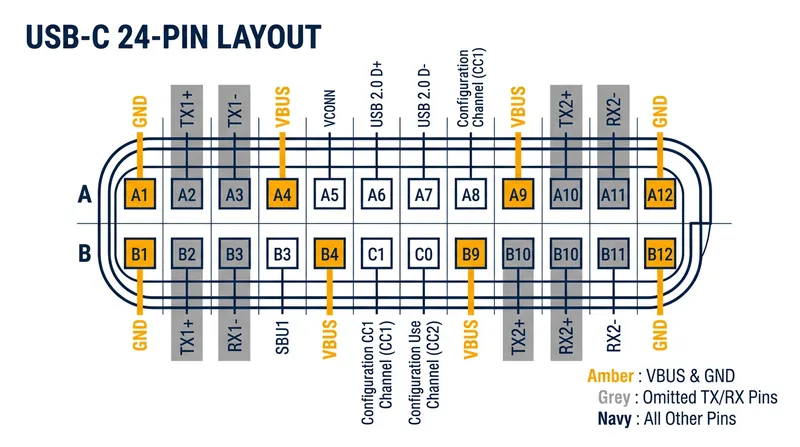

A fully populated USB-C connector features 24 pins arranged in two mirrored rows of 12, which allows the plug to be inserted in either orientation. Four pins are dedicated to power, and four are dedicated to ground. This redundancy slashes contact resistance and distributes the thermal load, preventing the connector from melting under a sustained 5-amp current.[2][3]

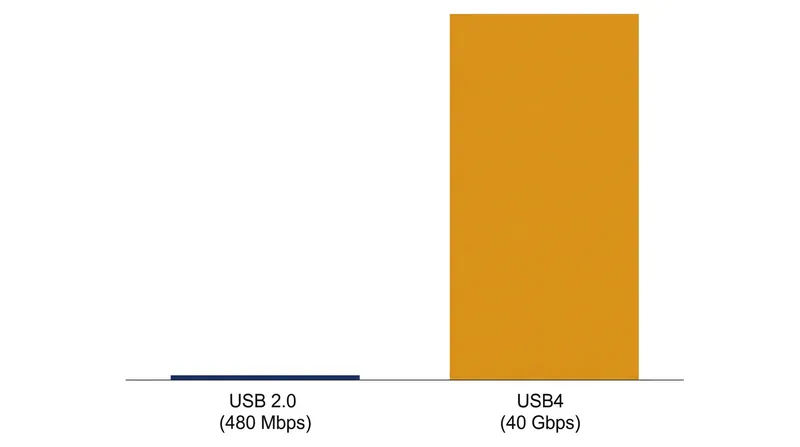

Sitting in the center of this layout are the D+ and D- pins, which form a single differential pair dedicated to legacy USB 2.0 data transfer. These legacy pins max out at 480 Mbps, or roughly 60 megabytes per second. For basic peripherals like keyboards, mice, and simple chargers, this central differential pair provides all the necessary bandwidth.[2]

To achieve faster data rates, the USB-C specification relies on four additional high-speed differential pairs, labeled as transmit and receive. These eight pins handle SuperSpeed data protocols, including USB 3.2 and Thunderbolt, pushing speeds from 5 Gbps up to 40 Gbps. They are also mandatory for Alternate Modes like DisplayPort video output.[2][3]

A differential pair transmits data by sending mirrored signals down two separate wires. The receiving device calculates the difference between the two voltages, which effectively cancels out any electromagnetic interference picked up along the cable's length. This technique allows USB cables to reliably move data over cheap copper without corruption.[3]

While the legacy D+/D- pins use a single half-duplex differential pair, SuperSpeed USB requires a dual-simplex architecture. This means it uses separate differential pairs for transmitting and receiving data simultaneously. To achieve 10 Gbps or higher, the cable must contain four of these high-speed pairs, totaling eight dedicated data wires.[2][3]

The Cost of SuperSpeed Copper

Routing these high-frequency signals is a severe engineering challenge. The internal wires must be individually shielded to prevent crosstalk, and their lengths must be matched to within a fraction of a millimeter. Even a slight variation in length can introduce a stub that degrades the signal's return loss, causing the connection to fail.[2]

Including the SuperSpeed transmit and receive pairs significantly increases the manufacturing complexity and cost of a cable. High-speed data transmission requires coaxial construction and precise impedance matching, typically targeting 85 to 90 ohms differential. If the internal wires are not perfectly shielded, the signal degrades rapidly.[2]

To keep prices low, manufacturers frequently omit these eight high-speed pins entirely, producing what is known as a 16-pin or 12-pin variant. These stripped-down cables retain the power pins, the negotiation pins, and the legacy D+/D- pins for basic connectivity. Physically, the connector looks identical from the outside, but the internal SuperSpeed copper is missing.[2][3][5]

"Many low-cost 'USB-C cables' are actually USB 2.0 charge-only cables in a USB-C form factor," notes a B2B sourcing guide on the topic. Because the physical wires for the differential pairs simply do not exist inside the jacket, no software update can force the cable to transfer data faster than 480 Mbps.[2][5]

Power Delivery Does Not Equal Data

The confusion for consumers arises because the Extended Power Range specification does not mandate the inclusion of SuperSpeed data pairs. A cable can be fully certified by the USB-IF to carry the maximum 240 watts of power while remaining a baseline USB 2.0 data cable. The two specifications operate independently of one another.[1][5][6]

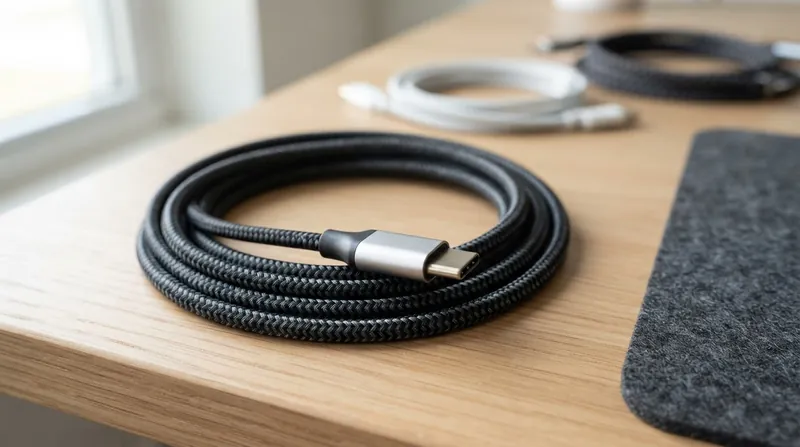

When a user buys a heavy, braided 240-watt cable, they often assume its premium build quality translates to premium data speeds. If they connect a high-speed external solid-state drive to their laptop using this charging cable, the transfer speeds will instantly bottleneck at 480 Mbps. The drive is forced to fall back to the legacy pins.[3][5]

This bottleneck is especially problematic for video applications. Because DisplayPort Alternate Mode requires the SuperSpeed differential pairs to transmit video signals, a 240-watt USB 2.0 cable cannot connect a laptop to an external monitor. The screen will simply remain blank, even though the cable might successfully charge the laptop at full speed.[2][5]

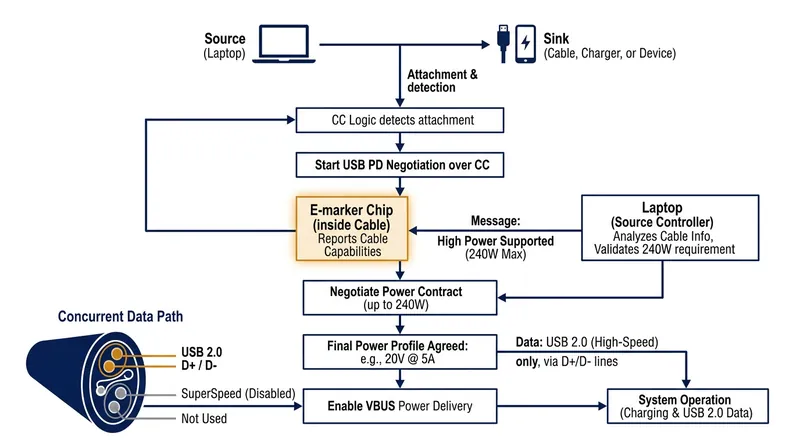

To safely deliver 240 watts, the cable must contain an electronic marker, or e-marker chip, embedded in the connector housing. This chip communicates with the host device over the Configuration Channel pins, verifying that the cable's wires are thick enough to handle 5 amps at 48 volts without overheating.[1][3]

The e-marker chip is strictly a safety and negotiation mechanism for power delivery. It tells the charger and the device how much current can safely flow, but it has no bearing on the data transmission capabilities of the cable. A cable can possess an advanced e-marker for 240-watt charging while still lacking the physical SuperSpeed pairs.[1][5]

Navigating the Cable Market

Because passive cables without an e-marker are strictly limited to 3 amps, the presence of an e-marker guarantees high power capacity, but it guarantees nothing about data bandwidth. Buyers must look beyond the wattage rating when evaluating a cable's true capabilities.[2][5]

To avoid this bottleneck, buyers must look for cables explicitly marketed as full-featured or labeled with a specific SuperSpeed data rate, such as 10 Gbps, 20 Gbps, or 40 Gbps. If a cable's packaging prominently advertises its 240-watt charging capability but omits any mention of data transfer speeds, it is almost certainly a USB 2.0 cable.[2][5]

The USB-IF has attempted to clarify this landscape by introducing new certification logos that display both the power rating and the data speed on the packaging and the cable itself. A certified full-featured cable might bear a logo indicating both 240W and 40Gbps, ensuring that the SuperSpeed differential pairs are physically present.[1]

However, the market remains flooded with uncertified cables that obscure their data limitations. As 240-watt charging becomes mainstream for laptops and high-draw devices, the volume of these power-heavy, data-poor cables will only increase. Understanding the physical omission of the SuperSpeed pairs is the only reliable way to ensure a cable meets both power and data needs.[4][5]
