Comparing Soldered LPDDR5x vs. Socketed CAMM2 Memory in Laptops: Bandwidth, Power Draw, and Upgradability

In December 2023, the JEDEC Solid State Technology Association ratified the CAMM2 memory standard, breaking a decade-long binary choice for laptop buyers: sacrifice upgradability for speed, or sacrifice speed for upgradability. For buyers configuring a new machine today, the memory architecture dictates both the immediate purchase price and the absolute lifespan of the device.[1]

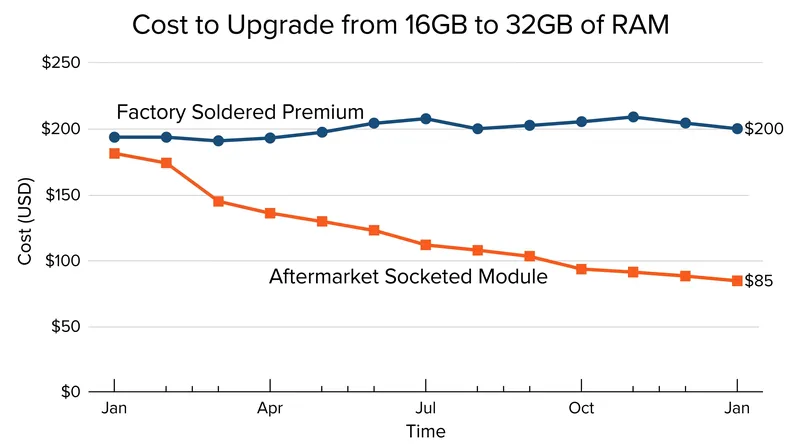

The actionable takeaway is financial: laptops with soldered memory require buyers to overprovision RAM at the point of sale, paying an average $200 premium to jump from 16GB to 32GB. Machines utilizing socketed CAMM2 or traditional SO-DIMM modules allow that same capacity upgrade to be performed years later for roughly $85, completely bypassing the manufacturer markup.[3][4]

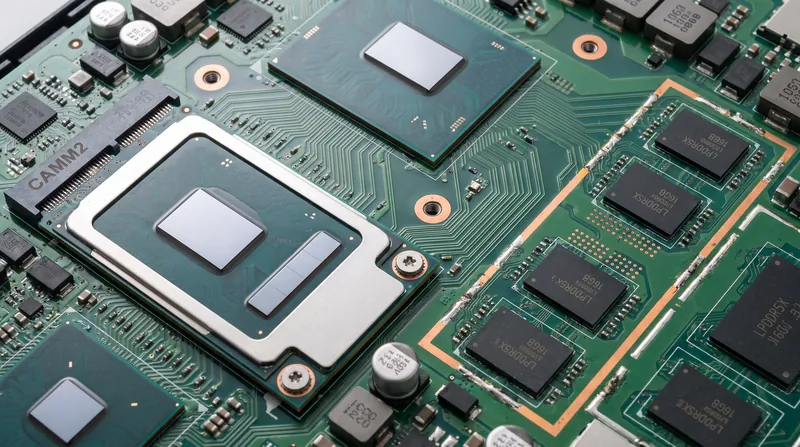

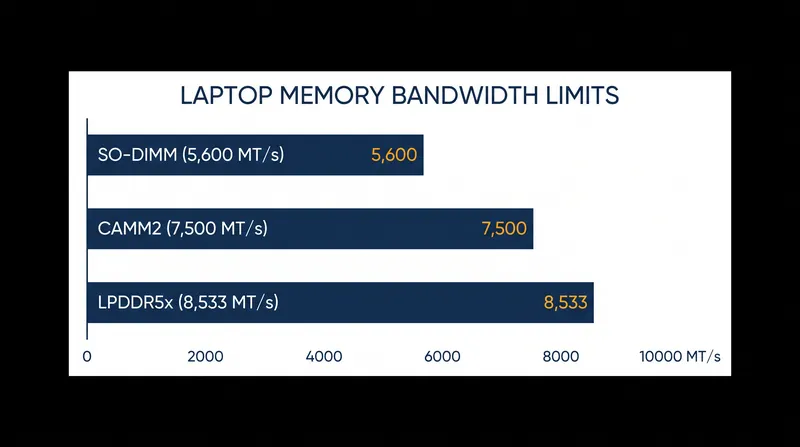

To understand the performance trade-off, buyers must look at bandwidth and power draw. Soldered LPDDR5x (Low Power Double Data Rate) memory sits physically closer to the processor, shortening the electrical traces. This proximity allows data transfer rates up to 8,533 megatransfers per second (MT/s) while consuming roughly 20% less active power than socketed alternatives.[2]

Traditional SO-DIMM (Small Outline Dual In-Line Memory Module) slots, the industry standard since 1997, hit a physical wall at 5,600 MT/s. The distance the signal must travel through the motherboard socket introduces interference, making higher speeds unstable and forcing manufacturers of premium ultrabooks to abandon the socket entirely to hit performance targets.[2]

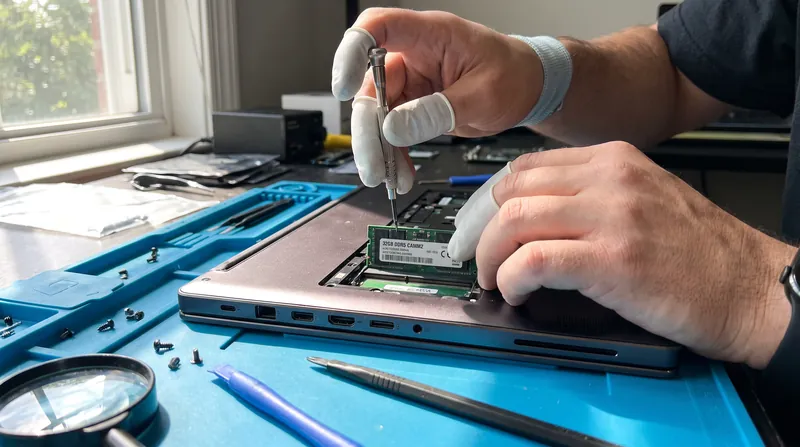

CAMM2 (Compression Attached Memory Module) bridges this gap by mounting the memory chips flat against the motherboard using a compression connector. This reduces the trace length by 50% compared to SO-DIMM, enabling speeds of 7,500 MT/s and higher while retaining the ability to swap the module with a standard screwdriver.[1][2]

"JESD318 CAMM2 offers designers a wide range of options for both high performance and capacity in a remarkably thin profile," stated Mian Quddus, JEDEC Board of Directors Chairman, during the standard's formal publication. The design occupies 57% less physical volume inside the laptop chassis than a dual SO-DIMM configuration.[1]

The right-to-repair movement views this architectural shift as a critical victory against electronic waste. iFixit data indicates that memory failure or capacity exhaustion is a leading cause of premature laptop disposal. When a single soldered RAM chip fails, the entire motherboard—often containing the CPU and GPU—must be discarded or subjected to expensive component-level microsoldering.

Framework, a manufacturer dedicated to modular laptops, adopted standard DDR5 SO-DIMMs for its 13-inch models but shifted to CAMM2 for high-performance configurations. Their pricing model highlights the hardware reality: a 32GB DDR5 module costs $90 directly from the manufacturer, exposing the standard industry markup applied to factory-configured soldered boards.[3]

Battery life remains the strongest argument for soldered LPDDR5x. Because the memory enters a deep sleep state more efficiently, ultrabooks relying on soldered RAM consistently deliver 1 to 2 hours of additional web-browsing battery life compared to identically specced machines using socketed memory.[2]

For enterprise IT departments managing fleets of thousands of machines, the calculation centers on lifecycle management. Socketed memory allows technicians to harvest RAM from machines with broken displays and deploy it into active units, reducing total cost of ownership by an estimated 12% over a four-year deployment cycle.[4]

The transition away from SO-DIMM is accelerating. Major manufacturers, including Lenovo and Dell, have already integrated CAMM2 into their 2024 and 2025 mobile workstation lines, signaling that the flat-mounted standard will likely replace traditional vertical slots entirely in enterprise hardware by 2027.[2]

Buyers must check the specification sheet before checkout. A machine listed with "LPDDR5x" is permanently locked to its factory capacity. A machine listed with "DDR5 SO-DIMM" or "LPCAMM2" can be upgraded later. The decision rests entirely on whether the user values an extra hour of battery life today over the ability to double their system memory for under $100 three years from now.[4]
