MERV, HEPA, MPR, and FPR: How Four Rating Systems Dictate an Air Filter's Particle Capture and HVAC Efficiency

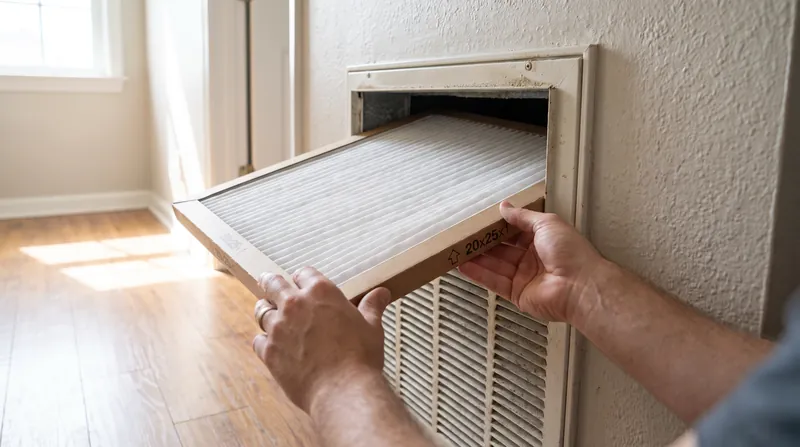

The effectiveness of a home air filtration system is decided the moment a pleated filter slides into the return vent, because that physical barrier dictates both what stays in the air and how hard the blower motor must work. A filter rated too low allows microscopic irritants to pass through, while one rated too high restricts airflow until the system overheats. To balance capture efficiency with mechanical safety, the industry relies on a web of testing standards. But the retail market splits these into open engineering metrics and proprietary brand labels, leaving consumers to translate between them.[4][5]

The foundational metric for residential and commercial HVAC systems is the Minimum Efficiency Reporting Value, or MERV. Developed by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) under standard 52.2, MERV measures a filter's ability to capture particles ranging from 0.3 to 10.0 microns in size. The scale runs from 1 to 16 for standard systems. "MERV is the only universally recognized, independent standard for HVAC filters," notes the California Air Resources Board in its 2017 guide to the ASHRAE standard.[3]

The MERV scale is not linear; it is tiered by particle size. A standard fiberglass filter, typically rated MERV 1 to 4, captures less than 20 percent of large particles like pollen and dust mites in the 3.0 to 10.0 micron range. Moving up to MERV 8 increases that capture rate to 70 percent or higher for large particles, but still ignores microscopic threats. To reliably capture pet dander, smog, and fine dust between 1.0 and 3.0 microns, a system requires a MERV 11 filter.[3]

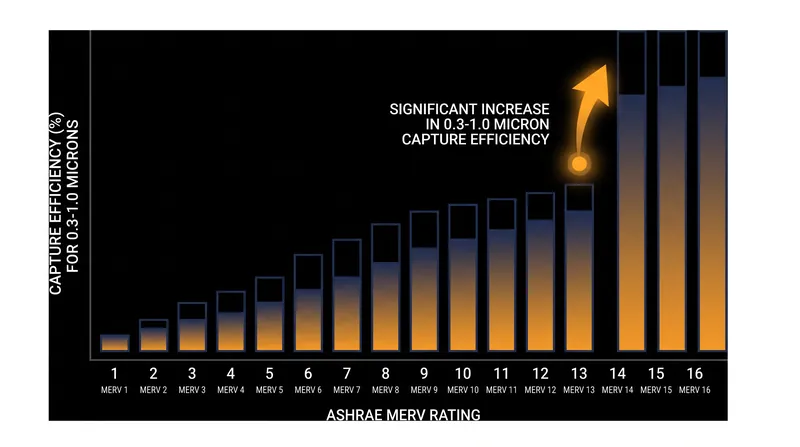

The critical threshold for airborne pathogens and wildfire smoke is MERV 13. At this level, the filter captures at least 50 percent of particles in the 0.3 to 1.0 micron range, and 85 percent of particles up to 3.0 microns. The Centers for Disease Control and Prevention (CDC) explicitly recommends this tier for infection control. According to the CDC's ventilation guidance, building owners should "upgrade filters to MERV 13 or the highest rating compatible with the HVAC system" to mitigate airborne viral transmission.[2][3]

However, higher MERV ratings introduce a mechanical penalty known as pressure drop. As the filter media becomes denser to trap smaller particles, it requires more force to push air through it. If a residential HVAC blower is not rated for the static pressure of a MERV 13 filter, the restricted airflow can freeze the evaporator coil in the summer or crack the heat exchanger in the winter. This is why most standard home systems max out at MERV 8 or MERV 11 without ductwork modifications.

When a facility requires absolute filtration, it abandons the MERV scale entirely and moves to High-Efficiency Particulate Air (HEPA) standards. HEPA is not a brand; it is a strict performance specification originally developed during the Manhattan Project to capture radioactive particles. Today, the U.S. Department of Energy strictly defines HEPA performance in its DOE-STD-3020-2015 specification, which was last updated in 2015.[1]

To qualify as a true HEPA filter under the DOE standard, the media must capture a minimum of 99.97 percent of particles that are exactly 0.3 microns in diameter. This specific size is used because it represents the most penetrating particle size. Particles both larger and smaller than 0.3 microns are actually easier for the filter fibers to trap due to diffusion and interception physics.[1]

Because HEPA filters are so dense, they cannot be installed in standard residential HVAC returns. The pressure drop would immediately suffocate the blower motor. Instead, HEPA filters are restricted to standalone air purifiers, vacuum cleaners, and specialized hospital or cleanroom ventilation systems equipped with high-velocity industrial fans designed to overcome the extreme air resistance.[2]

While MERV and HEPA govern the engineering side, the retail aisle is dominated by proprietary labels designed to market specific brands. The most prominent is the Microparticle Performance Rating (MPR), created by 3M for its Filtrete line of filters. Instead of measuring a wide range of sizes, MPR specifically grades the filter's ability to capture particles between 0.3 and 1.0 microns.[4]

The MPR scale runs from 300 to 2800. Because it isolates the smallest particles, it can be mapped back to the ASHRAE MERV scale. An MPR rating of 600 roughly equates to a MERV 8 filter. An MPR of 1000 to 1200 aligns with MERV 11. To achieve the virus-capturing performance of a MERV 13 filter, a consumer must purchase an MPR 1500 or MPR 1900 filter.[3][4]

Competing directly with 3M, The Home Depot developed its own proprietary system called the Filter Performance Rating (FPR) for brands sold in its stores, such as Honeywell. The FPR system uses a simplified 1-to-10 scale and color-codes the packaging to indicate good, better, and best performance tiers.[4]

Like MPR, the FPR scale translates directly to MERV equivalents. An FPR 5 filter provides MERV 8 performance, suitable for basic dust and pollen. An FPR 7 filter steps up to MERV 11, capturing pet dander. To reach the MERV 13 threshold recommended by the CDC for smoke and smog, a shopper must select an FPR 9 or FPR 10 filter.[2][4]

The proliferation of MPR and FPR ratings allows retailers to segment pricing, but it obscures the underlying physics. A consumer paying a premium for an FPR 10 or MPR 1900 filter is fundamentally purchasing a MERV 13 filter. The proprietary labels do not indicate a superior technology; they simply rebrand the same ASHRAE 52.2 performance metrics for retail shelves.[4][5]

Ultimately, the choice of air filter is a calculation of system capacity versus air quality needs. A $4 fiberglass filter protects the furnace but ignores the lungs, while a true HEPA filter protects the lungs but requires a dedicated machine. For most residential systems, finding the balance means identifying the highest MERV rating the blower can handle—whether the box says MERV, MPR, or FPR—and changing it before the accumulated dust turns it into a wall.[4][5]
