Comparing Rigid vs. Flexible LATCH in Car Seats: Installation Error Rates, Crash Force Transfer, and Weight Limits

Like a standard vehicle seatbelt, the LATCH system was designed to anchor a passenger to a car's chassis. But where a seatbelt relies on a ratcheting retractor to pull webbing tight, a rigid LATCH system eliminates the webbing entirely, replacing it with solid steel bars that lock directly onto the vehicle's frame. This structural difference fundamentally changes the mechanics of installing an infant car seat, shifting the burden of tension from the caregiver's physical strength to the hardware itself.

The distinction matters because the historical promise of LATCH—Lower Anchors and Tethers for Children—has largely failed to materialize. Introduced to bypass the complexity of seatbelt routing, the standard flexible LATCH system still requires caregivers to attach hooks to the vehicle's anchors and manually tension a strap. According to safety advocates, the overall misuse rate for car seats continues to hover around 90 percent, as parents frequently fail to pull the flexible webbing tight enough to prevent dangerous movement.

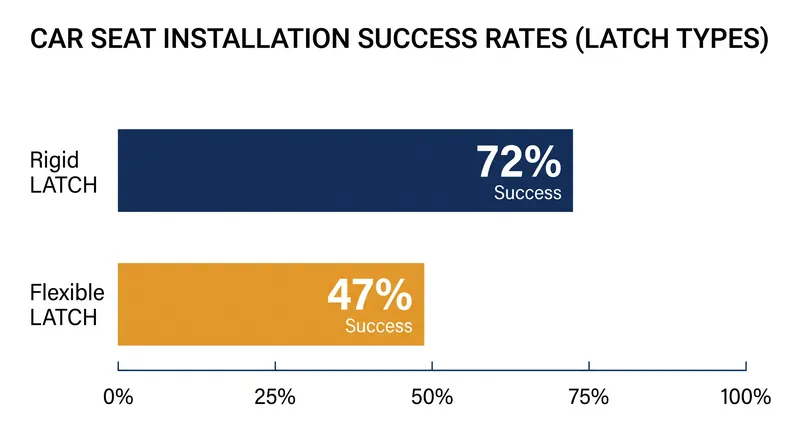

That manual tensioning step is where the conventional system breaks down. In a controlled study conducted by the Children's Hospital of Philadelphia, volunteer participants were asked to secure child restraints using different methods. The researchers found that volunteers were able to install the rigid LATCH car seat correctly 72 percent of the time, compared to the flexible LATCH seat only 47 percent of the time. By removing the need to pull a strap, the rigid hardware produced a 25-percentage-point jump in correct, crash-ready installations.[1]

Beyond user error, the physical behavior of the two systems diverges sharply during a collision, particularly in side-impact crashes. Flexible webbing, even when pulled tightly by an experienced technician, inherently allows the car seat to yaw and roll toward the point of impact. The National Highway Traffic Safety Administration's testing data indicates that this roll increases lateral head excursion, which is the primary mechanism for severe head injuries in side collisions.[2]

Rigid LATCH, by contrast, maintains a fixed metal-to-metal connection that virtually eliminates lateral roll. As the manufacturer Babyark notes, unlike flexible LATCH connectors, which rely on straps and manual tightening and are prone to human error, rigid LATCH connectors are made of solid steel and directly attach to your vehicle's lower anchors. This direct connection distributes crash forces more evenly and keeps the child's head contained within the protective side wings of the seat.

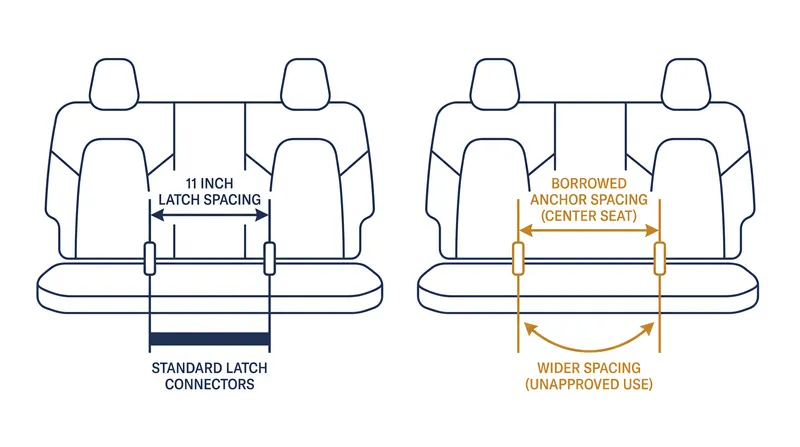

However, the structural rigidity that makes the system safer also strictly limits where it can be used. Rigid connectors require the vehicle's lower anchors to be spaced exactly 11 inches apart, which is the federal standard for dedicated LATCH positions. Because the steel bars cannot bend or angle inward, they demand perfect alignment with the vehicle's hardware.[2]

Because many vehicles do not have dedicated lower anchors for the center rear seat—statistically the safest position in the car—parents often attempt to borrow the inner anchors from the two outboard seats. This borrowing creates an anchor spacing wider than 11 inches. A flexible strap can easily span this wider gap, but a rigid steel connector cannot attach to it at all.

Consequently, parents choosing a rigid LATCH seat must often install it in an outboard position, trading the inherent safety of the center seat for the structural stability and higher installation success rate of the rigid hardware. For families in compact cars, this outboard placement can also restrict the legroom of the driver or front passenger.[3]

The hardware also adds weight and cost to the carrier base. Seats equipped with true rigid LATCH are generally heavier and occupy the premium pricing tier, often exceeding $400. This limits accessibility for some families, though the technology is slowly migrating into more mid-tier models.

For families navigating the trade-offs, the decision dictates the daily installation strategy. A flexible system offers placement versatility and center-seat compatibility, provided the caregiver is diligent about tensioning the strap. A rigid system sacrifices center-seat flexibility but delivers a foolproof connection and superior side-impact stability, ensuring the seat performs exactly as tested.[1][3]
