Why Down-Firing Tankless Water Heaters Clog With Scale Faster Than Upright Copper Coils

Upgrading to an ultra-efficient tankless water heater only saves money if the local municipal supply is soft enough to keep the internal plumbing intact. For the 85 percent of North American households living with hard water, that fundamental condition does not currently hold.

The plumbing industry has largely shifted toward down-firing stainless steel heat exchangers to hit 95 percent thermal efficiency ratings. These condensing units extract nearly all the heat from combustion gases, lowering monthly utility bills significantly compared to older models.[3]

But that efficiency introduces a severe mechanical vulnerability. By placing the burner at the top of the unit and forcing the flame downward, manufacturers create an intense thermal bottleneck that traditional upright copper coils avoid entirely.

The Mechanics of Localized Boiling

In a standard upright tankless heater, the burner sits at the bottom. Heat rises naturally through a wide copper fin-and-tube assembly, distributing thermal energy evenly across a large surface area as the water flows upward.[3]

Down-firing units invert this architecture. The burner blasts a concentrated flame directly into the top of a tightly coiled stainless steel cylinder. This creates a zone of extreme heat flux right where the cold water enters the system.[1]

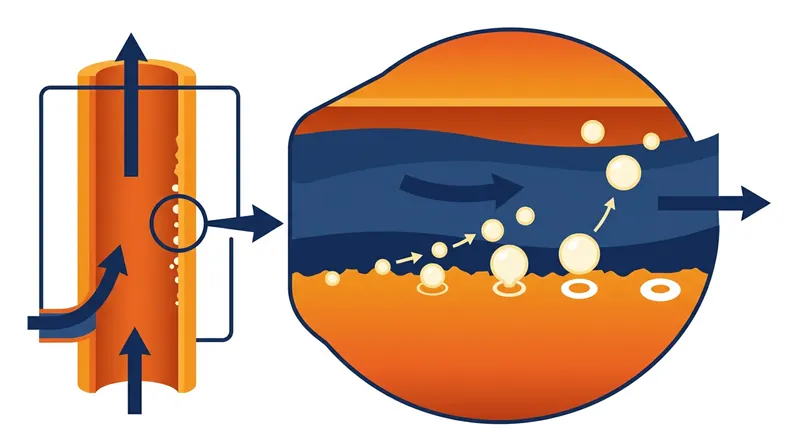

When thermal energy transfers into the water faster than the fluid can carry it away, localized boiling occurs. Microscopic steam bubbles form directly on the interior metal wall of the heat exchanger, even while the bulk water temperature remains safely below 120 degrees Fahrenheit.[1]

"Nucleate boiling is the primary driver of rapid scale precipitation in high-efficiency heat exchangers," notes the American Society of Plumbing Engineers. Every time a microscopic bubble forms and detaches, it leaves behind a tiny ring of crystallized calcium carbonate.

The Scale Accumulation Cycle

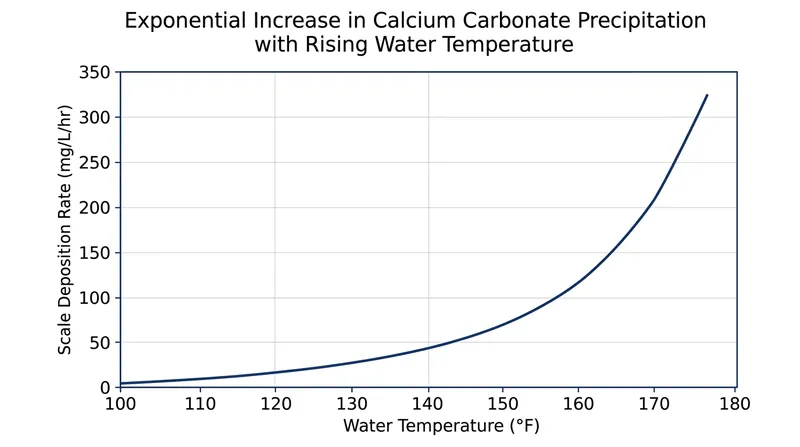

Calcium carbonate exhibits retrograde solubility, meaning it precipitates out of solution faster as temperatures rise. The intense localized heat in a down-firing burner accelerates this chemical reaction exponentially compared to the gentle warming of an upright coil.

Once the first microscopic layer of scale forms, a destructive feedback loop begins. Calcium carbonate is a highly effective thermal insulator, boasting a thermal conductivity roughly 40 times lower than that of stainless steel.[2]

Because the scale blocks heat from entering the water, the metal wall of the heat exchanger gets even hotter. This elevated surface temperature triggers more aggressive localized boiling, which in turn deposits scale at an even faster rate.[1]

Manufacturers typically mandate annual descaling flushes using a vinegar or citric acid solution. However, in regions where water hardness exceeds 120 parts per million, a down-firing unit may require maintenance every six months to prevent permanent damage.

Material Differences and Conductivity

The shift to down-firing designs necessitated a change in materials. Condensing exhaust gases create highly acidic runoff that quickly corrodes copper, forcing manufacturers to build down-firing heat exchangers out of 316L stainless steel.[3]

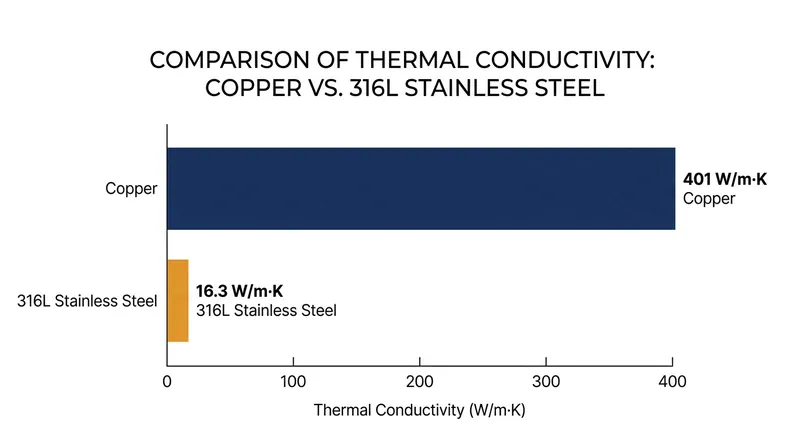

Stainless steel resists acidic corrosion beautifully, but it is a relatively poor conductor of heat. Copper transfers thermal energy at 401 watts per meter-kelvin, while 316L stainless steel manages only 16.3 watts per meter-kelvin.[2]

To compensate for this poor conductivity, stainless steel heat exchangers must use thinner walls and tighter coil geometries. These narrow, restrictive water paths become clogged by scale much faster than the wider tubes used in traditional copper designs.[3]

The severity of localized boiling also depends heavily on the household's flow rate demands. When a user opens a single low-flow bathroom faucet, the water moves sluggishly through the heat exchanger, absorbing more concentrated heat.[1]

Flow Rates and Temperature Deltas

This slow flow rate exacerbates the thermal bottleneck at the top of the down-firing burner. The water spends more time in the high-heat zone, increasing the likelihood of nucleate boiling and subsequent calcium precipitation.

Conversely, running multiple showers simultaneously pushes water through the coils at high velocity. The rapid movement strips heat away from the stainless steel walls efficiently, keeping surface temperatures below the boiling threshold and minimizing scale formation.[1]

The temperature delta—the difference between the incoming groundwater and the target output—also plays a crucial role. Homes in northern climates pulling 40-degree winter groundwater force the burner to fire at maximum capacity, intensifying the localized heat stress.[3]

Mitigating the Hard Water Threat

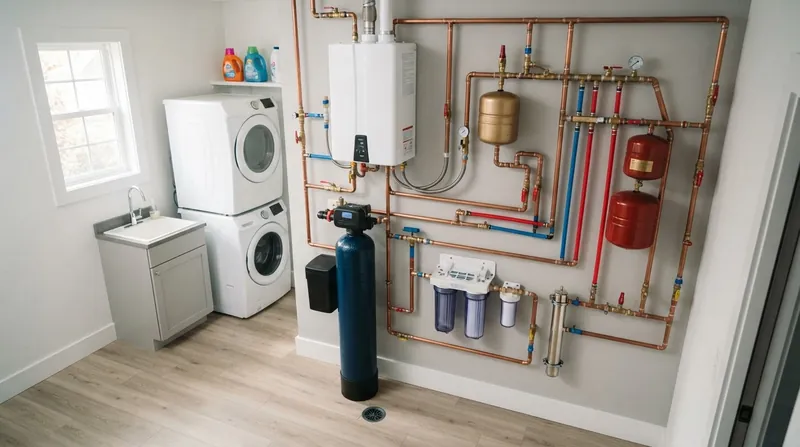

Homeowners purchasing a down-firing tankless heater must factor in the cost of water treatment. Installing a dedicated water softener or a template-assisted crystallization filter is practically mandatory to protect the investment.

A standard salt-based water softener removes calcium and magnesium ions entirely, replacing them with sodium. This eliminates the scale problem at the source, allowing the high-efficiency heat exchanger to operate flawlessly for its intended lifespan.

Template-assisted crystallization filters offer a salt-free alternative by altering the structure of the minerals so they cannot adhere to metal surfaces. While effective at preventing scale, these cartridges cost around $100 and must be replaced every two years.

Ultimately, the choice between down-firing and upright architectures comes down to local water chemistry. Buyers in soft-water regions can safely chase the 95 percent efficiency of a down-firing unit without taking on crippling maintenance liabilities.[3]

For those in hard-water areas unwilling to install whole-house softening systems, the older technology remains superior. An 82 percent efficient upright copper unit that survives for two decades is a better investment than a high-efficiency model that chokes on scale in three years.[4]
