The ILD and Coil Gauge Numbers: How Two Metrics Dictate a Mattress's Firmness and Support

A mattress's firmness and support are dictated by two objective measurements: the Indentation Load Deflection (ILD) of its foam layers and the gauge of its steel coils. Together, these metrics determine exactly how much force is required to compress the bed and how much pushback it will provide against a sleeper's body.[5]

While mattress marketing relies heavily on subjective terms like "ultra-plush" or "luxury firm," the underlying materials are graded on strict industrial scales. For the foam comfort layers, that scale is ILD, which is sometimes referred to interchangeably as Indentation Force Deflection (IFD).[1][4]

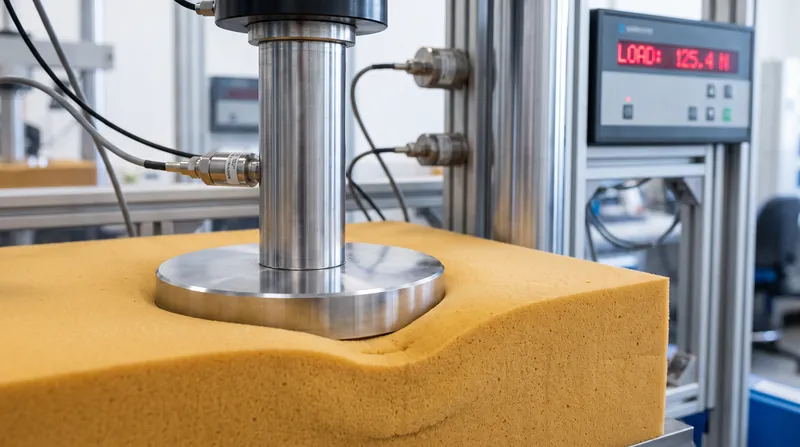

According to the ASTM D3574 testing standards, ILD is calculated using a highly specific mechanical process. A testing machine presses a 50-square-inch circular indenter into a 4-inch-thick piece of foam until it compresses the material by exactly 25% of its original thickness. The amount of force, measured in pounds, required to reach that 25% threshold becomes the foam's ILD rating.[1]

As TestResources notes in their technical documentation, "The IFD test determines the load bearing capacity of flexible polyurethane foam," providing a standardized, repeatable baseline for how materials will behave under human weight. If a piece of foam requires 20 pounds of force to compress by 25%, it has an ILD of 20.[1]

In practical terms, a lower ILD number indicates a softer foam that requires less force to compress, while a higher number denotes a firmer material. Sleeping Organic explains that an ILD of 14 to 19 is considered plush and yields easily to pressure, making it ideal for the top comfort layers where pressure relief for shoulders and hips is necessary.[4]

Conversely, an ILD of 30 or higher provides substantial resistance. These firmer foams are typically used in the transition or base layers of an all-foam mattress to prevent the sleeper from sinking too deeply and throwing their spine out of alignment.[4]

While ILD governs the foam's yield, coil gauge dictates the structural support of a hybrid or innerspring mattress's core. Coil gauge refers to the physical thickness of the steel wire used to form the springs inside the bed.[2][3]

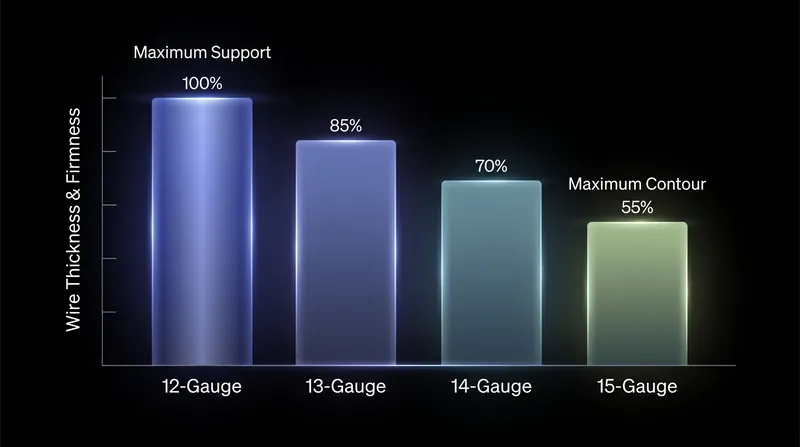

Wire gauge sizing operates on an inverse scale: a lower number means a thicker, stiffer wire, while a higher number indicates a thinner, more flexible wire. Most consumer mattress coils range from 12-gauge to 15-gauge steel.[3]

A 12-gauge coil is exceptionally thick and rigid, providing a highly supportive, firm base that resists deep compression. Yawnder points out that "a 12 gauge coil is going to be very firm and a 15 gauge coil is going to be much softer," offering a bouncier, more contouring support system that adapts more readily to lighter weights.[3]

Manufacturers frequently manipulate these coil gauges across different zones of the same bed to optimize performance. In their May 2026 testing guide, NapLab highlights how a mattress might use 14-gauge coils in the center third for contouring support under the hips, but reinforce the perimeter with rigid 12-gauge coils to prevent sagging when a user sits on the edge.[2]

The true feel of a hybrid mattress is determined entirely by how these two metrics interact. A bed's perceived firmness is decoupled from its structural support; a mattress can simultaneously possess a highly rigid 12-gauge support core and an ultra-plush 14 ILD comfort layer.[5]

In this configuration, the low-ILD foam dictates the initial pressure relief and soft feel, while the low-gauge coils dictate the deep support that prevents the body from bowing. By evaluating the ILD of the comfort layers alongside the coil gauge of the support core, consumers can bypass subjective marketing labels and accurately predict how a bed will perform.[5]
