Why Passive 3.5mm Aux Splitters Muffle High Frequencies and Attenuate Shared Audio Signals

Passive 3.5mm auxiliary splitters degrade shared audio because they force the source amplifier to drive two parallel electrical loads simultaneously. This configuration halves the total impedance, creating a severe voltage divider that chokes the amplifier's output and attenuates the volume.[7]

Simultaneously, the combined capacitance of the splitter and two headphone cables interacts with the source's internal resistance to form an RC low-pass filter. This unintended circuit rolls off high-frequency treble and destroys the electrical damping factor, leaving the resulting audio muffled, boomy, and stripped of transient detail.[3][4]

The Parallel Load Problem

When two listeners plug into a single audio jack using a passive Y-cable, they fundamentally alter the electrical circuit. Instead of driving a single voice coil, the amplifier now sees two loads wired in parallel.[5]

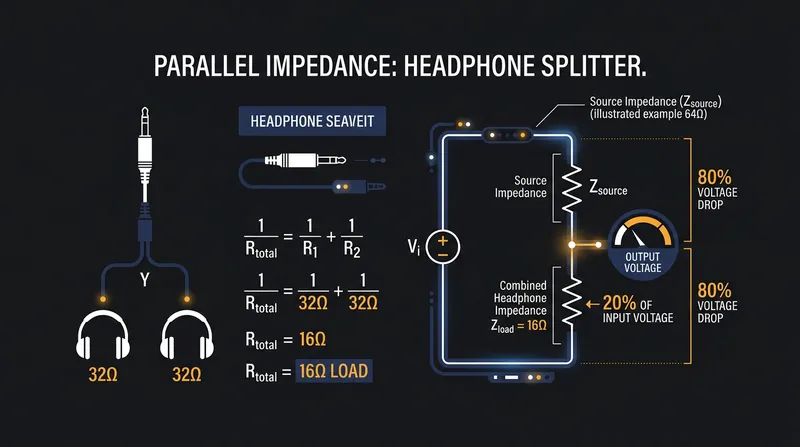

If two identical 32-ohm headphones share a splitter, the total resistance presented to the source drops to exactly 16 ohms. This sudden plunge in load impedance demands significantly more current than standard mobile devices or laptop audio chips are designed to provide.[5]

"Our experts tested the latest mini desktops—Windows and macOS alike—to find the most capable, customizable, and cost-effective tiny PCs," notes PCMag in their 2026 hardware review. Yet, even on these modern machines, the analog 3.5mm audio outputs often utilize cheap, high-impedance headphone amplifiers that fail under parallel loads.[6]

When the amplifier cannot deliver the requested current into that halved 16-ohm load, the output waveform clips. This introduces total harmonic distortion, adding a harsh, static-like edge to the audio during loud passages or heavy bass hits.[5]

Voltage Dividers and Volume Attenuation

The primary reason a passive splitter reduces volume lies in the physics of a voltage divider. Every audio source, from a smartphone to a premium receiver, possesses an inherent output impedance—an internal resistance that impedes the flow of electricity before it ever reaches the jack.[1]

According to fundamental electrical principles, the source's output impedance and the headphones' load impedance form a continuous voltage divider circuit. The amplifier's total generated voltage is proportionally split between its own internal resistance and the external headphones.[2]

When a passive splitter halves the external load impedance, a larger percentage of the total voltage is wasted overcoming the source's internal resistance. Consequently, less voltage actually reaches the headphone drivers, resulting in a steep, unavoidable drop in listening volume for both users.[2][7]

This attenuation becomes catastrophic on older receivers or budget laptops, which frequently feature output impedances as high as 50 to 120 ohms. Driving a combined 16-ohm parallel load from a 120-ohm source means nearly 88 percent of the amplifier's power is lost as internal heat rather than acoustic output.[1][7]

Mismatched Impedance and Current Hogging

The electrical penalties multiply when listeners connect two different models of headphones to the same passive splitter. Because electricity favors the path of least resistance, the headphone with the lower impedance will aggressively hog the available current.[5][7]

Factlen's 2026 editorial analysis modeled the exact electrical distribution when a standard 32-ohm consumer headphone and a 600-ohm studio monitor share a passive splitter on a 120-ohm output source. The combined parallel load drops to 30.3 ohms, dragging down the overall voltage.[7]

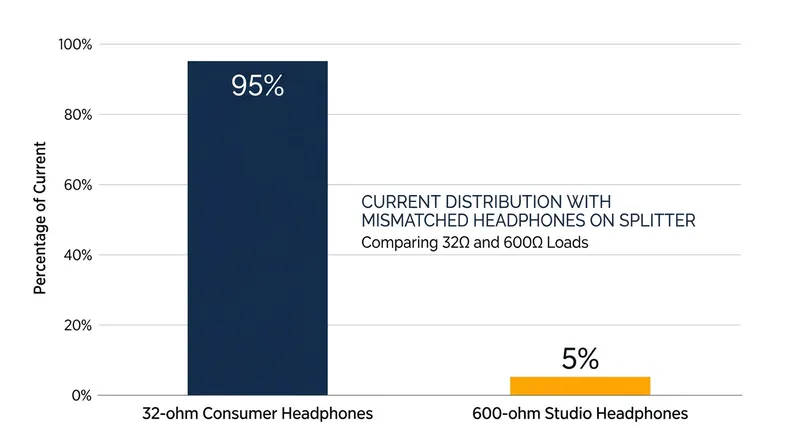

Under these conditions, the voltage delivered to both headsets drops by 80 percent compared to an ideal zero-ohm source. However, because of the massive resistance mismatch, the 600-ohm studio headphone receives a mere 5 percent of the total current flowing through the splitter.[7]

The result is a completely unusable listening experience. The 32-ohm pair dominates the output and plays at a moderate volume, while the 600-ohm pair is starved of current and rendered virtually inaudible, proving that passive splitters cannot balance mismatched loads.[5][7]

Cable Capacitance and Muffled Treble

Beyond volume loss, passive splitters actively degrade the frequency response of the audio, specifically muffling the high frequencies. Every millimeter of copper wire in the splitter and the attached headphone cables carries inherent electrical capacitance.[3]

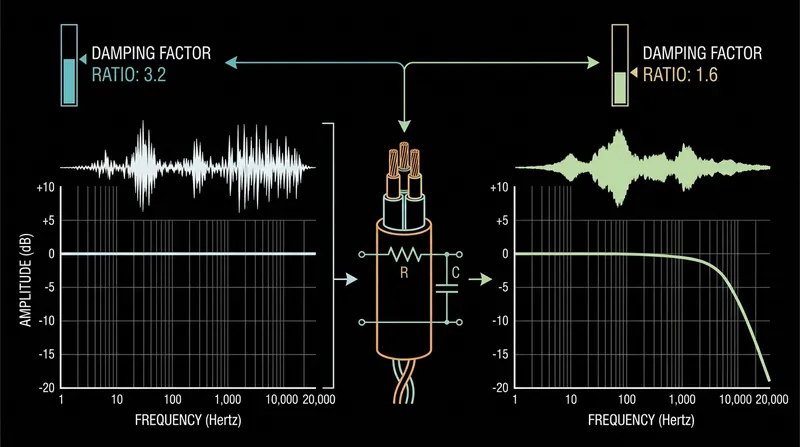

When this parallel cable capacitance combines with the high output impedance of a struggling amplifier, it forms an unintended resistor-capacitor (RC) network. In audio engineering, an RC network acts as a literal low-pass filter, allowing bass frequencies to pass while progressively blocking treble.[3]

While a single short cable might push this roll-off into the inaudible megahertz range, adding a splitter and a second long cable multiplies the capacitance. Driven by a high-impedance source, this filter's cutoff frequency creeps downward, shaving off the crisp air and transient details above 10,000 Hertz.[3][7]

This high-frequency roll-off is why shared audio often sounds dark, veiled, or muffled. The passive splitter is physically stripping the upper harmonics from the signal before they can reach the listener's ears.[3]

Damping Factor and Bass Bloat

The final casualty of a passive splitter is the amplifier's damping factor—its ability to control the physical movement of the headphone drivers. A high damping factor acts like an electromagnetic brake, stopping the driver instantly after a bass note strikes.[4]

Damping factor is calculated by dividing the headphone's load impedance by the source's output impedance. Audio engineers universally recommend a minimum ratio of 8-to-1 to maintain tight, accurate driver control and prevent the voice coil from oscillating freely.[4][7]

By halving the load impedance, a passive splitter immediately slashes the damping factor in half. If a 32-ohm load on a 10-ohm source drops to 16 ohms, the damping ratio falls from an acceptable 3.2 to a dismal 1.6.[4][7]

Without sufficient electrical braking, the headphone drivers continue to vibrate after the signal stops. This uncontrolled resonance creates a loose, boomy bass response that bleeds into the midrange, further masking whatever high frequencies survived the low-pass filter.[4]

The Active Distribution Solution

The physics of parallel circuits dictate that no passive 3.5mm Y-cable, regardless of its gold plating or braided shielding, can circumvent these electrical losses. The degradation is a fundamental consequence of Ohm's law and voltage division, not a flaw in the cable's manufacturing.[2][7]

To share audio without muffling highs or attenuating volume, listeners must use an active headphone distribution amplifier. These powered devices feature independent output stages for each jack, isolating the individual loads and providing a near-zero output impedance to every connected headphone.[5][7]

By utilizing dedicated operational amplifiers for each listener, active splitters maintain the crucial 8-to-1 damping ratio and prevent current hogging entirely. This ensures that a 600-ohm studio monitor and a 16-ohm consumer earbud can play side-by-side at peak volume, with pristine high frequencies and perfectly controlled bass.[4][5]
