The 6 GHz Band and OFDMA: How Wi-Fi 6E and Wi-Fi 7 Achieve Lower Latency and Higher Capacity

Router manufacturers and internet service providers routinely claim that upgrading to a higher-tier "gigabit" internet plan or buying a router with a massive top-speed rating will eliminate buffering and lag in a crowded home. The technical evidence directly contradicts this. Raw throughput is rarely the bottleneck for modern network congestion; the actual culprit is inefficient spectrum sharing and interference in the 2.4 GHz and 5 GHz bands. The solution to latency is not a wider pipe, but a better traffic controller. That mechanism is Orthogonal Frequency-Division Multiple Access (OFDMA), paired with the newly opened 6 GHz frequency band in the Wi-Fi 6E and Wi-Fi 7 standards.[5]

To understand why older networks stall, you have to look at how Wi-Fi 5 (802.11ac) operates. It relies on Orthogonal Frequency-Division Multiplexing (OFDM), a system where only one device can transmit or receive across a given channel at a time. If a smart thermostat needs to send a tiny kilobyte temperature update, it occupies the entire channel, forcing a laptop streaming a 4K video to wait its turn. In a home with 40 connected devices, this single-file line creates massive latency spikes, regardless of how fast the underlying fiber internet connection is.[1]

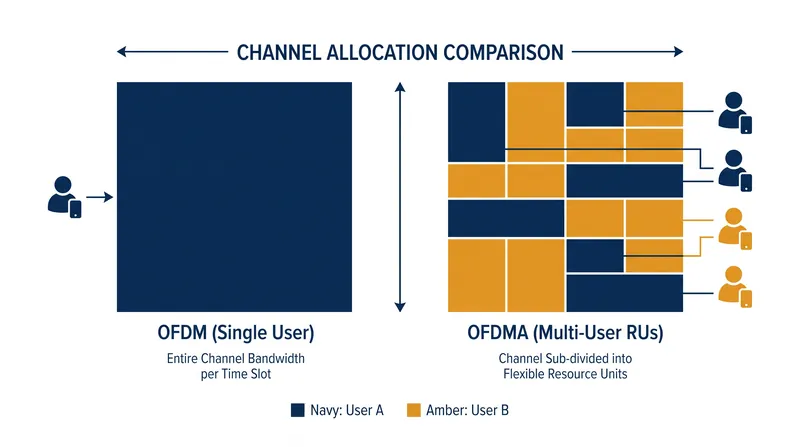

OFDMA, introduced in the IEEE 802.11ax standard (marketed as Wi-Fi 6 and 6E), fundamentally alters this channel access mechanism. Instead of dedicating an entire 20 MHz, 40 MHz, or 80 MHz channel to a single user, OFDMA slices the channel into smaller sub-channels called Resource Units (RUs). An access point can allocate these RUs to different devices simultaneously. During a single transmission opportunity, the router can send a video frame to a smart TV, a text message to a phone, and a command to a smart bulb, all in parallel.[1][3]

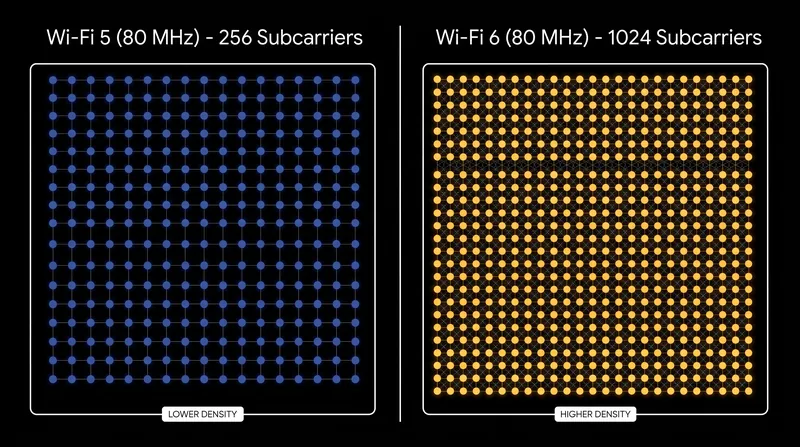

The math behind this division is what makes it work. To support OFDMA, the 802.11ax standard quadrupled the number of subcarriers compared to Wi-Fi 5. An 80 MHz channel in Wi-Fi 5 contains 256 subcarriers; in Wi-Fi 6E and Wi-Fi 7, that same 80 MHz channel contains 1024 subcarriers. This density allows the router to assign resource units as small as 26 tones (roughly 2 MHz wide) to low-bandwidth devices, preserving the rest of the channel for heavy data transfers.[1]

Cisco notes in its technical documentation that OFDMA is "a new channel access mechanism similar to but distinct from cellular/LTE radio networks, because it maintains the robustness of Wi-Fi in unlicensed spectrum." However, OFDMA's efficiency is easily compromised by interference from legacy devices. If a Wi-Fi 6 network operates on the crowded 5 GHz band, it must still contend with older Wi-Fi 5 and Wi-Fi 4 devices that do not understand OFDMA scheduling. When a legacy device transmits, it forces the network to revert to the old single-file OFDM rules, breaking the parallel transmission efficiency.[7]

This is where the 6 GHz band becomes critical. Introduced with Wi-Fi 6E, the 6 GHz spectrum provides up to 1,200 MHz of contiguous, interference-free bandwidth in regions like the United States that have fully opened it. More importantly, the IEEE mandates that only 802.11ax and newer devices can operate in the 6 GHz band. By banning legacy devices from this spectrum, the 6 GHz band acts as a "greenfield" environment where OFDMA can operate flawlessly, reducing latency to the single-digit millisecond range.[4][8]

Wi-Fi 7 (802.11be) takes this foundation and expands it for enterprise and high-density environments. While Wi-Fi 6E established the 6 GHz band, Wi-Fi 7 doubles the maximum channel width from 160 MHz to 320 MHz. It also introduces Multi-Link Operation (MLO), allowing a client device to connect across the 5 GHz and 6 GHz bands simultaneously. If interference suddenly spikes on one band, MLO seamlessly shifts packets to the other, stabilizing latency for real-time applications like virtual reality and industrial automation.[2][6]

Wi-Fi 7 also refines OFDMA with a feature called preamble puncturing. In previous standards, if a narrow slice of a wide channel was experiencing interference, the router had to abandon the entire wide channel and drop down to a narrower one. Puncturing allows a Wi-Fi 7 router to simply carve out the interfered portion and transmit across the remaining clean spectrum, maintaining high throughput even in congested apartment buildings or office parks.[6]

The hardware requirements for these benefits are strict. To utilize the 6 GHz band, both the router and the client device—whether a smartphone, laptop, or wireless adapter—must explicitly support Wi-Fi 6E or Wi-Fi 7. Connecting a Wi-Fi 5 smartphone to a Wi-Fi 7 router will yield no latency improvements, as the phone lacks the hardware to read the 6 GHz frequencies or process OFDMA resource units.[8]

For consumers and IT architects, the actionable takeaway is clear: when upgrading network infrastructure, prioritize the 6 GHz band and OFDMA support over raw top-speed numbers. A Wi-Fi 6E or Wi-Fi 7 access point operating in a clean 6 GHz environment will deliver a vastly superior user experience for latency-sensitive applications than a theoretically faster router bottlenecked by 5 GHz legacy traffic.[5]

The rollout of the 6 GHz band is not uniform globally. While the United States opened the full 1,200 MHz spectrum in 2020, the European Union has currently allocated a smaller 480 MHz slice. This regulatory fragmentation means that the maximum capacity of a Wi-Fi 6E or Wi-Fi 7 network will vary depending on the country of deployment, dictating how many non-overlapping 160 MHz or 320 MHz channels are actually available to the user.[4][8]

The transition to OFDMA and the 6 GHz band represents the most significant architectural shift in wireless networking in a decade. By moving away from a single-user contention model to a scheduled, multi-user paradigm, the Wi-Fi Alliance has ensured that wireless networks can scale to meet the demands of dense IoT deployments and real-time streaming, provided users are willing to invest in the necessary hardware.[3]
