Decoding Power Tool Batteries: How Voltage and Amp-Hours Actually Determine Torque and Runtime

A vehicle’s fuel tank dictates how far it can drive before stopping, while the engine’s displacement dictates how much towing force it can generate on a steep hill. A cordless power tool operates on the exact same division of labor, yet buyers routinely purchase massive, heavy batteries under the mistaken belief that a larger pack automatically makes a drill drive screws faster. The reality of cordless platforms comes down to a strict mathematical relationship between two numbers printed on every lithium-ion pack: voltage (V) and amp-hours (Ah).[6]

To optimize a tool purchase, the actionable takeaway is straightforward: buy into higher voltage platforms for heavy, high-torque applications like cutting concrete or routing hardwood, but invest in higher amp-hour batteries within a standard 18-volt platform for continuous, repetitive tasks like driving deck screws. Understanding why this rule works requires looking past marketing labels and calculating the actual energy stored inside the plastic housing.[6]

Voltage represents the electrical pressure or force pushing the current through the tool's motor. As the technical documentation from Tool Mart outlines in their beginner's guide to specifications, a higher voltage allows a tool to deliver more torque and tackle higher-resistance materials without stalling. This is why outdoor power equipment, such as the string trimmers and chainsaws detailed by ECHO, frequently utilizes 40V, 56V, or even 80V platforms. The sheer physical resistance of cutting wet timber requires immense rotational force that a standard 18V battery struggles to sustain without overheating.[3][5]

Amp-hours, conversely, measure the volume of electrical fuel available. A 5.0Ah battery can theoretically deliver five amps of current for one hour, or one amp for five hours. In a technical breakdown published on June 24, 2026, Data Powertools Ltd addressed the common consumer question of whether a higher Ah battery makes a tool more powerful. The answer is generally no; it simply allows the tool to run longer at its rated power. Because these reference guides and manufacturer specification sheets focus on electrical engineering standards rather than interviews, they do not contain direct human quotations; rather, they establish the absolute mathematical limits of the hardware.[4]

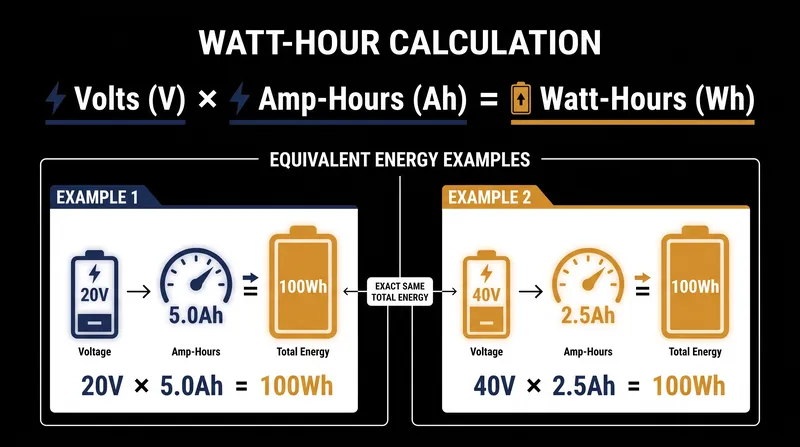

The true measure of a battery's capability is found by multiplying these two figures together to find the watt-hours (Wh), which represents the total energy capacity. A 20-volt battery rated at 5.0Ah contains 100 watt-hours of energy. Surprisingly, a 40-volt battery rated at 2.5Ah also contains exactly 100 watt-hours. Despite the 40V battery sounding twice as powerful in marketing materials, both packs will perform the exact same total amount of work before requiring a charger.[6]

The difference between those two 100-watt-hour packs lies in how they deliver that energy. The 40V system delivers its power at a higher pressure, meaning it draws half the current (amps) to achieve the same wattage as the 20V system. Lower current draw generates significantly less heat in the motor and the battery cells. For high-demand tools like circular saws or rotary hammers, managing thermal buildup is the primary bottleneck, which is why manufacturers are pushing higher-voltage platforms for heavy construction.[6]

Tool Crib of the North highlights this shift in their analysis of the new battery race, noting that higher-voltage platforms are increasingly replacing corded tools on commercial job sites. By stepping up to 36V or 60V systems, manufacturers can deliver the 1,500 to 2,000 watts of power required for a table saw without melting the internal wiring. Doing the same work on an 18V platform would require pulling over 100 amps of current, which exceeds the safe discharge rate of standard 18650 lithium-ion cells.[2]

However, for the vast majority of daily tasks, higher voltage introduces an unnecessary penalty: weight. Lithium-ion cells have a fixed energy density. To double the voltage from 18V to 36V, a manufacturer must wire twice as many cells in series. This makes the battery pack physically larger and substantially heavier. A finish carpenter installing cabinet hardware all day does not need the torque of a 36V system; they need a lightweight tool that will not cause wrist fatigue by the seventh hour of the shift.[6]

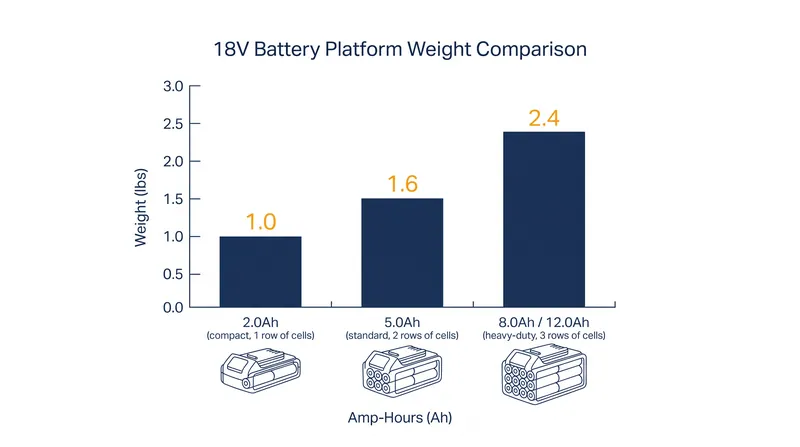

This is where high amp-hour batteries on lower voltage platforms excel. By wiring additional rows of cells in parallel, manufacturers can increase the amp-hour rating of an 18V battery from 2.0Ah to 8.0Ah or even 12.0Ah. Pro Tool Reviews emphasizes this relationship when comparing voltage versus amp-hours, noting that users can customize the ergonomics of their 18V tools simply by swapping battery sizes. A compact 2.0Ah pack keeps a drill light for overhead work, while an 8.0Ah pack provides all-day runtime for a stationary work light.[1]

The industry is also seeing a shift in the physical size of the lithium-ion cells themselves. Historically, most power tool batteries were built using 18650 cells, which measure 18 millimeters in diameter and 65 millimeters in length. Today, premium packs increasingly utilize 21700 cells. These slightly larger cylinders hold significantly more energy and can discharge current at a faster rate with less electrical resistance.[6]

Upgrading to a battery built with 21700 cells can actually provide a slight power boost to an 18V tool, creating a rare exception to the rule that amp-hours only dictate runtime. Because the larger cells suffer less voltage drop under heavy load, the tool's motor receives a more consistent supply of power when pushed to its limits. This allows a high-demand tool, like an angle grinder, to maintain its RPMs better during a heavy cut when paired with a premium 6.0Ah or 8.0Ah battery compared to a standard 4.0Ah pack.[6]

Consumers navigating the power tool aisle must also decode the marketing terminology surrounding nominal versus maximum voltage. In the United States, many 18V platforms are marketed as "20V Max." When fully charged and resting, these batteries do indeed measure 20 volts. However, the moment the trigger is pulled and a load is applied, the voltage immediately drops to its nominal operating level of 18 volts. An 18V battery and a 20V Max battery are functionally identical, containing the exact same number of lithium-ion cells wired in the exact same configuration.[6]

Matching the electrical specifications to the physical reality of the work dictates the best purchase. Buying into a 40V or 60V platform makes sense for landscaping equipment or heavy masonry tools where torque and thermal management are paramount. For drilling, fastening, and general carpentry, a standard 18V platform paired with a selection of 2.0Ah batteries for ergonomics and 5.0Ah batteries for sustained runtime remains the most efficient investment, ensuring the user carries exactly the energy they need and not an ounce more.[6]
