Beyond the IP Rating: How Depth, Time, and Pressure Distinguish IP67 from IP68 Water Resistance

Inside the testing chambers defined by the International Electrotechnical Commission (IEC) standard 60529, a device is lowered exactly 1,000 millimeters into a clear water tank and left undisturbed for 1,800 seconds. If it emerges functioning, it earns an IP67 rating. But if the tank is deepened by even a fraction of a meter, the universal standard vanishes, and the manufacturer takes control of the test.[1]

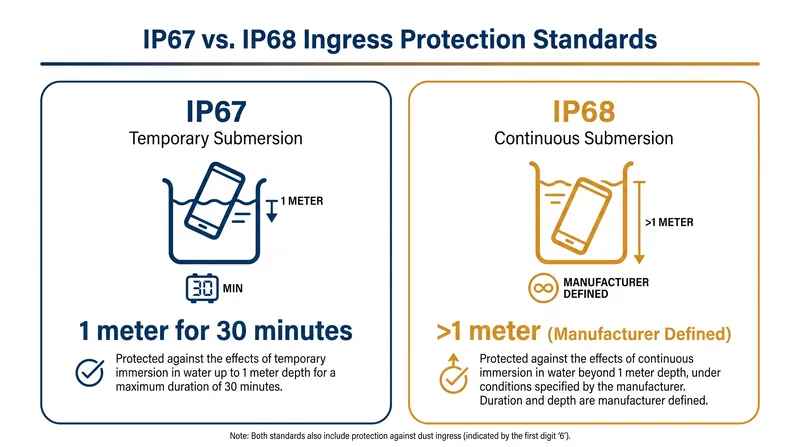

For consumers buying a new smartphone, the distinction between IP67 and IP68 dictates whether a dropped device survives a shallow puddle or a deep swimming pool. Both ratings guarantee complete protection against dust—represented by the number six—but the second digit defines liquid ingress. An IP67 rating is a rigid baseline: the device must survive immersion in up to one meter of fresh water for exactly 30 minutes.[1][2]

The IP68 rating, however, operates on a sliding scale. The IEC standard dictates only that an IP68 device must withstand conditions more severe than IP67. The exact depth and duration are negotiated between the manufacturer and the testing facility.[4]

"IP68 does not mean the enclosure is waterproof under all conditions," notes the technical documentation from Polycase, a manufacturer of electronic enclosures. "It simply means the enclosure provides protection against continuous submersion in water under conditions specified by the manufacturer."[4]

This variability means that an IP68 rating on an Apple iPhone 15, which is tested to survive a depth of six meters for 30 minutes, represents a vastly different physical threshold than the IP68 rating on a Samsung Galaxy S24, which is tested at 1.5 meters for the same duration. Buyers must read the fine print rather than relying solely on the two-digit code.[2]

The testing environment itself introduces another layer of complexity. IEC 60529 testing is conducted using static, fresh water. The standard does not account for water pressure generated by movement, such as swimming or the impact of a dropped phone hitting the surface of a lake.[3]

"The IP68 rating is based on static pressure," explains the engineering team at Jumo, a measurement and control technology firm. "If the device is moved in the water, the dynamic pressure can quickly exceed the static pressure of the specified depth, leading to water ingress."[3]

Furthermore, the tests exclude saltwater, chlorinated pool water, and liquids with high surface tension like soapy water or coffee. Saltwater is highly corrosive and can degrade the rubber gaskets and adhesive seals that provide the ingress protection within hours of exposure.[2]

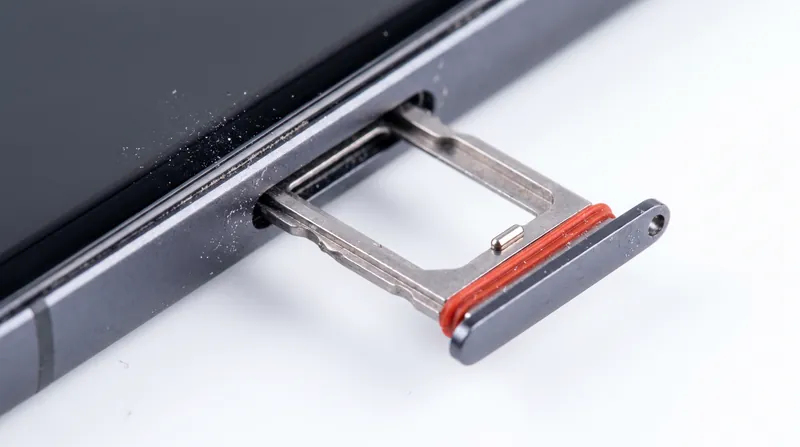

The physical mechanisms of water resistance rely heavily on these adhesives, alongside rubber O-rings and acoustic meshes. When a manufacturer seals a phone, they apply precisely calibrated strips of glue around the display and chassis. Over time, daily thermal cycling—the phone heating up during charging and cooling down—causes these materials to expand and contract.[5]

By the time a smartphone is two years old, the original IP rating is often compromised. A device that passed an IP68 test in 2024 may fail an IP67 test in 2026 simply due to the natural degradation of its internal seals, or microscopic chassis warps from being carried in a tight pocket.[2][6]

For industrial applications, the stakes are even higher. Federal Signal, a manufacturer of emergency vehicle equipment, emphasizes that standard IP ratings are insufficient for high-pressure environments. "Equipment subjected to high-pressure, high-temperature washdowns requires an IP69K rating," their engineering guide states, highlighting that IP68 is not the absolute ceiling of water resistance.[5]

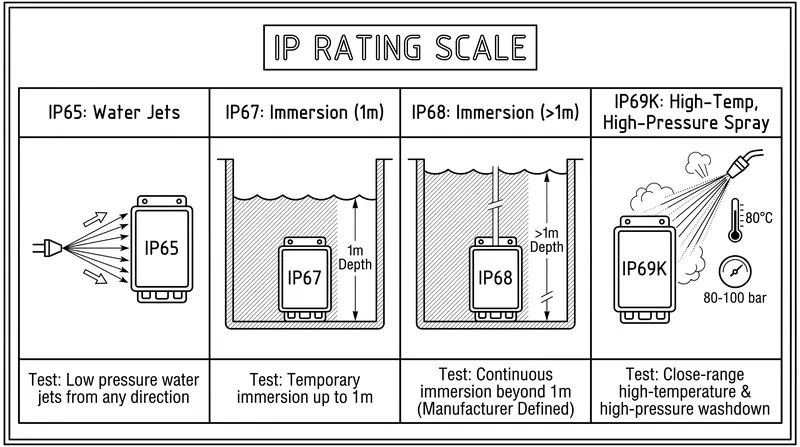

The IP69K standard, originally developed in 1993 for heavy-duty vehicles, involves spraying the enclosure with water at 80 degrees Celsius (176 degrees Fahrenheit) at a pressure of 8,000 to 10,000 kilopascals (1,160 to 1,450 psi) from a distance of just 10 to 15 centimeters. While smartphones do not require this level of protection, the existence of IP69K illustrates the specific, narrow scope of IP68.[5][6]

indEx Enclosures, a UK-based manufacturer, points out that IP ratings are also not cumulative. "An enclosure that is rated IP68 for continuous immersion may not necessarily meet the requirements for IP65 or IP66, which involve high-pressure water jets," their technical documentation clarifies.[6]

This non-cumulative nature means a phone that can sit at the bottom of a two-meter pool for half an hour might still sustain water damage if sprayed directly with a high-velocity jet from a garden hose. The static pressure of immersion tests does not simulate the kinetic energy of a directed water stream.[1][6]

The practical utility of an IP rating for the average consumer lies in accidental exposure rather than intentional submersion. The adhesives and meshes are designed as a fail-safe against a spilled drink or a brief drop into a sink, not as an invitation for underwater photography.[2]

As manufacturers continue to push the boundaries of device durability, the gap between IP67 and IP68 will likely widen. The true measure of a device's resilience is no longer found in the standardized code, but in the specific depth and duration metrics buried in the technical specifications, and the user's understanding of the limits of static fresh water testing.[1][2]
