Sub-6 GHz vs. mmWave 5G: How Frequency Band Dictates Range, Penetration, and Peak Speed

Stepping off the curb at the corner of 34th Street and Broadway in Manhattan, a smartphone user might watch their status bar flip from a standard "5G" icon to "5G UW" or "5G+". In that exact moment, the device shifts its radio from a 2.5 GHz frequency to a 28 GHz millimeter-wave band, and download speeds jump from 150 megabits per second to over 1.5 gigabits per second. But taking three steps inside the nearest coffee shop severs that high-speed link entirely, dropping the phone back to the lower frequency.[4][6]

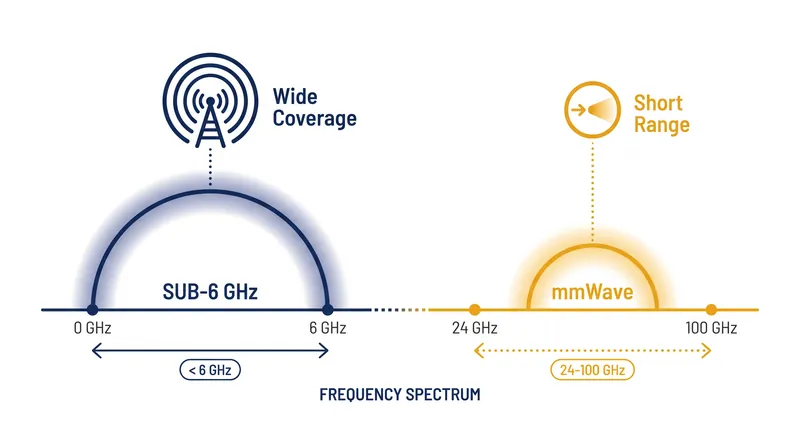

This physical boundary—where a signal capable of downloading a 4K movie in seconds shatters against a standard glass window—is the defining characteristic of modern 5G networks. The fifth generation of cellular technology is not a single, uniform blanket of coverage. Instead, it is split into two distinct frequency ranges, known as Frequency Range 1 (FR1) and Frequency Range 2 (FR2), which dictate exactly how a device behaves in the real world.[1]

"The 5G spectrum is broadly divided into Sub-6 GHz and mmWave," explains the engineering team at Nybsys in their 2024 comparative study. "Sub-6 GHz offers broad coverage and better penetration through obstacles, while mmWave provides ultra-fast speeds and high capacity over short distances."[4]

For consumers shopping for a new device, this distinction translates directly into hardware costs and daily utility. Sub-6 GHz, which operates at frequencies below 6 GHz, forms the backbone of global 5G deployment. It behaves much like the 4G LTE networks that preceded it, traveling miles from a cell tower and easily passing through foliage, brick, and drywall.[5][6]

Telit Cinterion, an IoT and cellular module manufacturer, notes in its November 2025 technical brief that Sub-6 GHz bands are essential for wide-area coverage. "Because lower frequencies can travel farther and penetrate solid objects better, Sub-6 GHz is the practical choice for nationwide 5G rollouts," the company states.[6]

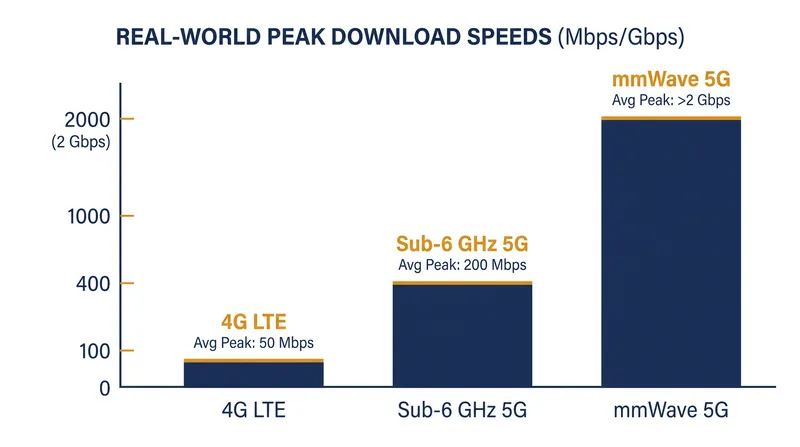

However, the trade-off for this range is bandwidth. The Sub-6 GHz spectrum is crowded with existing wireless technologies, limiting the size of the data channels available to carriers. According to ShareTechnote's engineering documentation, FR1 operating bandwidths typically max out at 100 MHz per channel. This physical constraint caps peak download speeds, usually hovering between 100 and 400 Mbps in real-world conditions.[1]

Millimeter-wave (mmWave), or FR2, operates on an entirely different physical scale. Utilizing frequencies between 24 GHz and 100 GHz, this spectrum offers massive, contiguous blocks of unused bandwidth. "The mmWave spectrum allows for channel bandwidths up to 400 MHz," details Millimeter Wave Products in their 2019 radio frequency analysis.[3]

That immense bandwidth is what enables the headline-grabbing gigabit speeds of 5G. When connected to a mmWave node, a smartphone can process data at rates exceeding 2 Gbps, effectively eliminating network congestion even in crowded environments like stadiums, airports, or concert halls.[3][5]

But the physics of high-frequency radio waves introduce severe limitations. As the frequency increases, the wavelength shrinks to mere millimeters. These tiny waves are highly susceptible to attenuation. They cannot penetrate solid materials; a brick wall, a tinted car window, or even a user's hand wrapped around the phone can block the signal entirely.[2][4]

"The design of filters and antennas for mmWave applications must account for significant propagation losses," reports 5G Technology World in a 2021 engineering review. "Unlike Sub-6 GHz signals, mmWave requires line-of-sight transmission and advanced beamforming techniques to maintain a reliable link."[2]

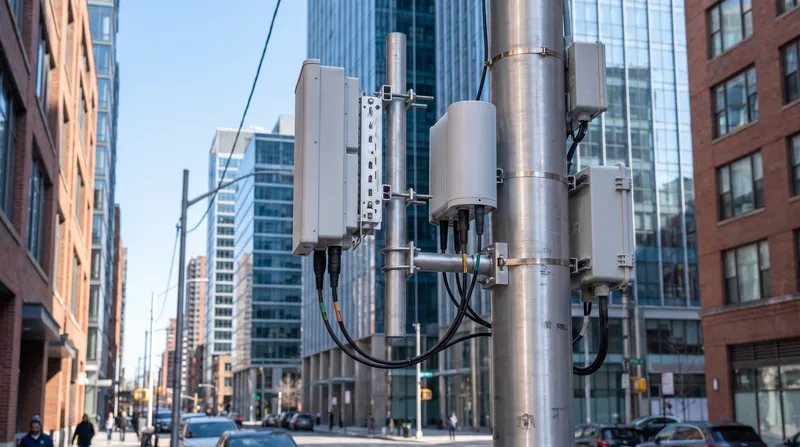

To overcome this, carriers must deploy mmWave nodes densely—sometimes on every street corner or utility pole in a downtown area. This infrastructure requirement makes mmWave economically unviable for rural or suburban deployments, restricting its footprint to high-density urban cores and specific indoor venues.[4][5]

For smartphone manufacturers, supporting both bands requires complex hardware engineering. A device must include multiple specialized antennas positioned along the edges of the chassis to ensure a user's hand does not block the fragile mmWave signal. This adds manufacturing cost, which is often passed down to the consumer.[2][5]

Patsnap Eureka's market analysis highlights this hardware divide. "Including mmWave modules increases the bill of materials for a smartphone by roughly $20 to $30," the report notes. Consequently, many budget and mid-range phones omit mmWave support entirely, offering only Sub-6 GHz connectivity to keep retail prices down.[5]

When evaluating a smartphone purchase in 2026, buyers must weigh their geographic reality against the spec sheet. A user living in a rural area or a sprawling suburb will almost exclusively rely on Sub-6 GHz networks. Paying a premium for a mmWave-equipped flagship device yields no practical benefit if the local carrier has not installed the necessary high-frequency nodes.[6][7]

Conversely, a professional commuting through a dense metropolitan center or frequently attending large public events will notice the absence of mmWave. In those environments, the Sub-6 GHz network often becomes congested by thousands of simultaneous users, while the mmWave spectrum remains wide open, offering instant downloads and seamless video streaming.[4][7]

The industry is also exploring intermediate solutions, such as C-band spectrum (ranging from 3.7 to 3.98 GHz), which sits at the upper edge of Sub-6 GHz. C-band offers a middle ground, providing significantly wider channels than lower frequencies while maintaining better penetration than mmWave.[6]

The utility of a 5G phone is dictated by the physical properties of the radio waves it can receive. The decision between a Sub-6-only device and a dual-band flagship comes down to where the device will be used most. The gigabit speeds of mmWave remain a localized luxury, while Sub-6 GHz continues to serve as the reliable, everyday foundation of global connectivity. The next verifiable shift in this hardware landscape will depend on how quickly carriers can densify their mid-band networks to bridge the gap between these two extremes.[7]
