Motionless Fresh-Water Testing Under IEC 60529 Leaves Real-World Water Ingress Uncovered as Internal Moisture Indicators Void Phone Warranties

A smartphone retrieved from a shallow puddle may appear completely unharmed, but the brief submersion has likely triggered a permanent chemical reaction inside the device. A hidden Liquid Damage Indicator within the chassis turns pink upon contact with moisture, instantly voiding the manufacturer's warranty.[3]

Despite carrying an IP68 rating that promises survival in 1.5 meters of water, millions of devices lose their warranty coverage every year. This occurs because the marketing campaigns portraying phones surviving spills and swimming pools contradict the strict limitations of the actual certification.[4]

The disconnect stems from a fundamental mismatch between laboratory testing environments and real-world physics. While consumers assume an IP68 badge guarantees everyday water resistance, the underlying standard only certifies the device under perfectly motionless conditions that rarely occur in daily life.[1][4]

"The manufacturer may not conduct a repair under warranty for a device with an activated LCI," notes the technical documentation published by iFixit. This absolute rule leaves consumers holding devices that are advertised as waterproof but serviced as though they are entirely vulnerable.

The Mechanics of IEC 60529

The International Electrotechnical Commission publishes the IEC 60529 standard, which defines the widely recognized Ingress Protection codes. For a modern smartphone rated IP68, the "6" signifies complete protection against dust ingress, while the "8" denotes resistance to continuous water immersion.[1]

Under the standard, the parameters for the "8" rating are agreed upon by the manufacturer, but they must exceed the baseline requirement of 1 meter. Most smartphone manufacturers test their flagship devices at a depth of 1.5 meters for 30 minutes.[1][4]

However, the IEC 60529 testing protocol mandates that the device is gently lowered into a tank of still water. The test measures the seals' ability to withstand static hydrostatic pressure, which at a depth of 1.5 meters equals approximately 14.7 kilopascals.[1][4]

The standard explicitly does not account for the device moving through the water or water moving against the device. This motionless testing environment fails to replicate the physical forces involved when a phone is dropped, rinsed, or carried into a swimming pool.[1][4]

Static Versus Dynamic Pressure

When a fluid is in motion relative to an object, it exerts dynamic pressure, which is calculated based on the fluid's density and the square of its velocity. This kinetic energy creates localized stress on a smartphone's seals that static testing never measures.[2][4]

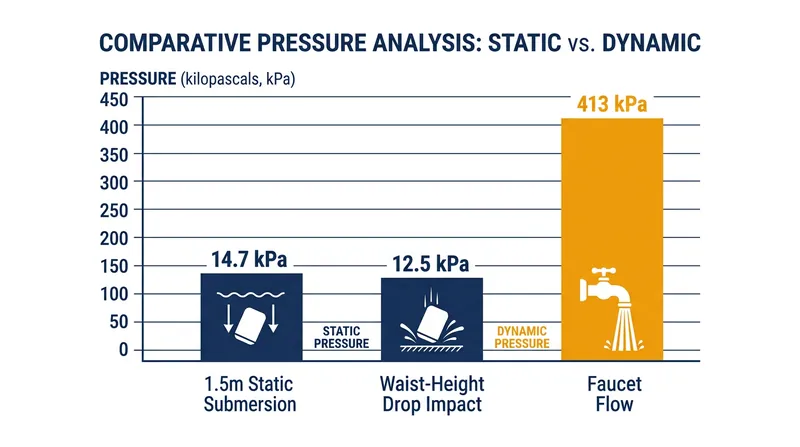

Dropping a phone into a puddle from waist height causes it to impact the water at approximately 5 meters per second. This brief collision generates a dynamic pressure spike of 12.5 kilopascals, which nearly matches the 14.7 kilopascal static pressure limit of the 1.5-meter IP68 test.[2][4]

The disparity becomes even more severe under running water. A standard household faucet operating at 60 pounds per square inch exerts over 413 kilopascals of pressure, subjecting a rinsed phone to nearly 30 times the pressure it was certified to withstand.[4]

"Dynamic pressure is the kinetic energy per unit volume of a fluid," explains the physical definition of the force. This principle dictates why a moving fluid easily breaches rubber seals that routinely survive deep, motionless testing tanks.[2]

The Role of Liquid Damage Indicators

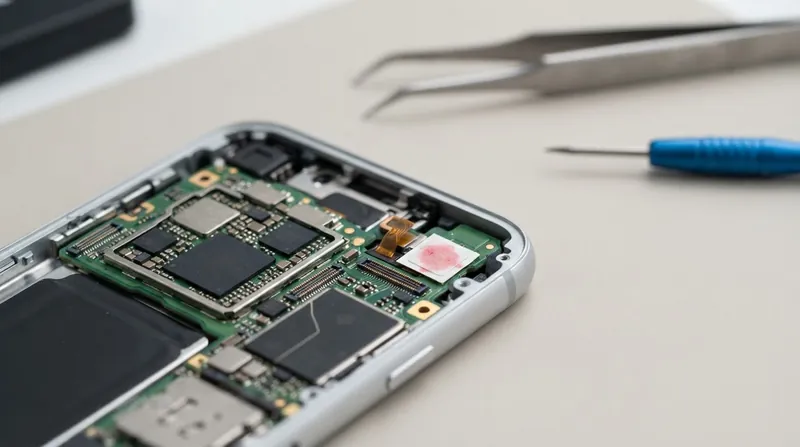

Once water breaches the external seals, it encounters the Liquid Damage Indicators strategically placed throughout the device's interior. These small adhesive stickers are typically located near the SIM card slot, the charging port, and the main logic board.

An indicator is manufactured with a chemical layer that is normally white or silver. Upon contact with water or a liquid containing water, the chemical reacts and turns the sticker permanently red or pink, creating an irreversible record of moisture ingress.

"An LCI won't activate because of humidity and temperature changes that are within the product's environmental requirements," Apple's technical documentation states. This confirms that a triggered sticker requires direct liquid contact, making it a definitive diagnostic tool for service centers.

Technicians rely on these indicators as the first diagnostic step when evaluating a device. If a customer brings in a malfunctioning phone, the technician will eject the SIM tray and shine a light inside to check the indicator before proceeding with any repairs.[3]

Warranty Exclusions and Consumer Impact

The presence of a triggered indicator has immediate financial consequences for the consumer. Both Apple and Samsung explicitly state in their terms of service that liquid damage is considered physical damage and is excluded from the standard one-year limited warranty.[3]

"Service for liquid damage to an iPhone or iPod isn't covered by the Apple One-Year Limited Warranty," the company's support guidelines confirm. Samsung enforces an identical policy, noting that a pink or red indicator means the device will require out-of-pocket service.[3]

This creates a frustrating paradox for device owners. A smartphone can be marketed with images of it surviving heavy rain or being submerged in a fish tank, yet the manufacturer relies on the internal indicator to deny warranty claims if those exact scenarios result in water ingress.[4]

The reliance on the motionless IEC 60529 standard allows companies to legally claim the IP68 rating while simultaneously excluding real-world water damage from their warranties. Until testing standards incorporate dynamic pressure, consumers must treat their water-resistant devices as fundamentally vulnerable to liquids.[1][4]

The Engineering of Waterproof Seals

Smartphone manufacturers achieve their IP68 ratings using a combination of rubber gaskets, silicone adhesives, and fine mesh screens. These components are meticulously engineered to block water molecules while allowing air to pass through for speaker and microphone functionality.[4]

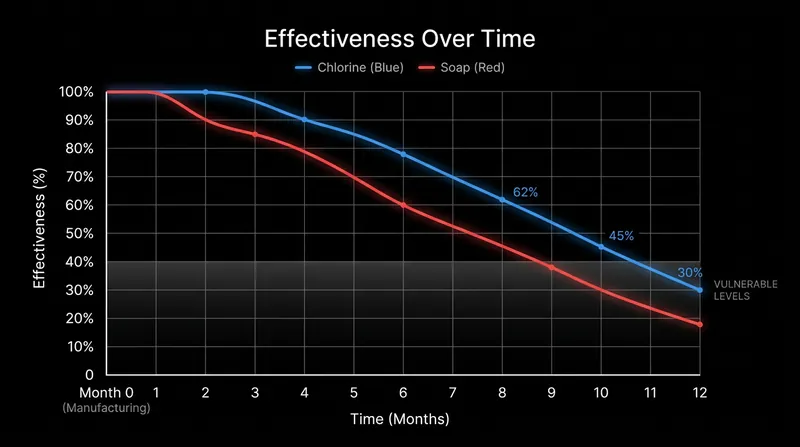

However, these seals degrade over time due to normal wear and tear. Exposure to everyday chemicals, such as the chlorine in swimming pools, the salt in seawater, or the surfactants in hand soap, accelerates the breakdown of the silicone adhesives.[4]

Once a seal is compromised by chemical exposure or physical drops, the device's ability to withstand even static pressure is severely diminished. A phone that passed the 1.5-meter test in the factory may fail in a shallow sink just six months later.[4]

This degradation highlights why manufacturers are unwilling to cover liquid damage under warranty. Because they cannot verify the device's history of chemical exposure or dynamic pressure impacts, they rely entirely on the binary red-or-white status of the internal indicator.[4]
