Automatic Brightness Limiting Caps 5,000-Nit Phone Screens at 1,200 Nits Outdoors

At the Mobile World Congress in Barcelona in March 2025, Samsung Display showcased its newest On-Cell Film OLED mobile panel, projecting a peak brightness of 5,000 nits. The announcement followed aggressive marketing from Chinese panel makers, who had already begun advertising 6,000-nit peaks on their latest smartphone displays.

To a consumer standing under a harsh midday sun, these figures suggest a screen that can effortlessly overpower ambient glare. A 5,000-nit output would theoretically be five times brighter than the standard 1,000-nit displays that dominated the market just a few years ago.

However, the numbers printed on the specification sheet describe a highly specific laboratory condition rather than a practical outdoor scenario. The advertised peak brightness is measured using a metric known as Average Picture Level (APL), which calculates the percentage of the screen that is actively illuminated.[1]

Samsung’s 5,000-nit claim is achieved at a 10 percent APL, while the 6,000-nit figures from competitors are often measured at just a 1 percent window. In these tests, a tiny white square is displayed against a completely black background, allowing the device to funnel its power budget into a fraction of the pixels.

The Physics of Self-Emissive Screens

The reliance on small window measurements is a direct consequence of how Organic Light Emitting Diode (OLED) technology functions. Unlike traditional LCD screens, which use a separate LED backlight to illuminate the entire panel evenly, OLED displays are self-emissive.[2]

Every individual pixel on an OLED screen generates its own light by passing an electrical current through organic compounds. When a user views a dark scene with a small bright highlight—such as a streetlamp in a night video—only a few pixels draw heavy current, allowing them to reach extreme luminance.[2]

But when a user opens a web browser, a map, or a document outdoors, the interface is typically dominated by a white background. This creates a 100 percent APL scenario, demanding that millions of pixels operate at maximum capacity simultaneously to compete with the sun.[1]

"If you want 2,000 nits, the organic compounds in every pixel must emit 2,000 nits of light simultaneously," notes a technical breakdown from display manufacturer RisingLCD. "This is a fundamental ceiling imposed by the physics and chemistry of the organic emissive materials."[2]

Pushing an entire OLED panel to 5,000 nits at once would generate a massive thermal load, rapidly draining the battery and permanently damaging the organic materials. To prevent catastrophic overheating, manufacturers implement a mandatory safety mechanism called the Automatic Brightness Limiter (ABL).[1]

The Automatic Brightness Limiter

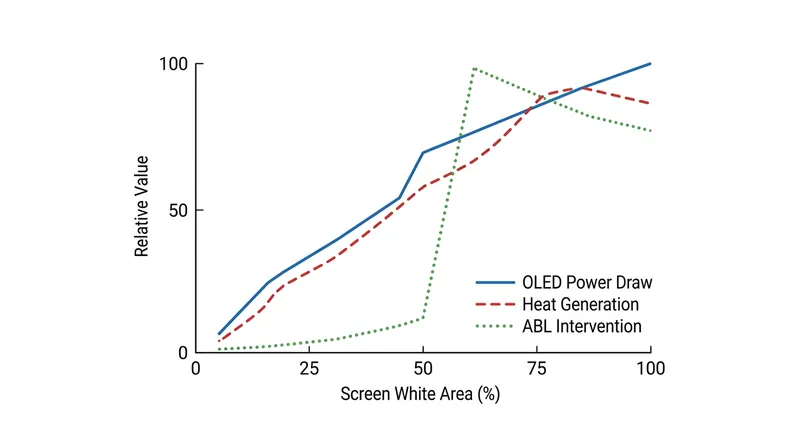

The ABL continuously monitors the screen's Average Picture Level in real time. As the illuminated area expands from a small 1 percent window to a full-screen white image, the ABL dynamically throttles the voltage supplied to the pixels, forcing the brightness to drop.[1]

"You will see then on OLED panels that with a low APL... the maximum peak brightness is usually achieved," explains a technical breakdown from TFTCentral. "This peak brightness then reduces normally as the window size increases, as this is where the Auto Brightness Limiter (ABL) feature comes in."[1]

By the time a smartphone display reaches 100 percent APL in direct sunlight, the ABL strictly caps the sustained output. For most modern flagship devices, this full-screen ceiling sits between 1,000 and 1,200 nits, regardless of whether the marketing material claims a 3,000-nit or 5,000-nit peak.[2]

This aggressive dimming is not a software bug or an optional eco-setting that users can disable. It is a hardwired hardware constraint designed to keep the panel within safe operational limits and mitigate the risk of permanent image retention, commonly known as burn-in.[3]

The Push for Tandem Architecture

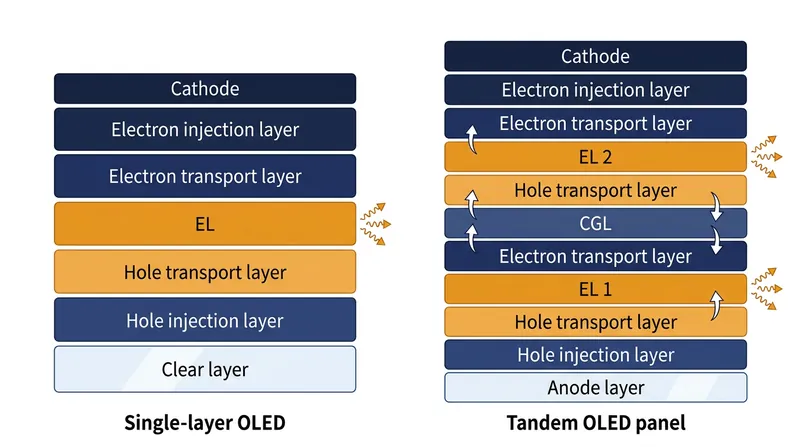

To raise the full-screen brightness ceiling without destroying the panel, the display industry has begun shifting toward Tandem OLED architecture. Rather than relying on a single layer of organic material, tandem panels stack two emissive layers vertically, separated by a charge generation layer.[5]

This dual-stack design allows the display to produce the same amount of light while halving the current density pushed through each individual layer. By distributing the electrical load, tandem panels generate less heat and degrade at a significantly slower rate than traditional single-layer screens.[5]

While tandem technology extends the lifespan of the display and improves power efficiency, it still cannot bypass the fundamental thermal limits of a smartphone chassis. Even with dual emissive layers, the sustained 100 percent APL brightness on a mobile device remains physically constrained to roughly 1,200 nits outdoors.[5]

Practical Implications for Users

The gap between peak highlight brightness and sustained full-screen output explains why a new flagship phone may not appear drastically brighter than a three-year-old model when reading text at the beach. The extreme 5,000-nit capability is reserved exclusively for High Dynamic Range (HDR) video playback.

When watching an HDR movie, the ABL permits small specular highlights—like a glint of sunlight on a car bumper or a spark from an explosion—to flash at maximum intensity. Because these highlights occupy less than 10 percent of the screen, the overall thermal load remains manageable.[1]

However, for static productivity tasks, the ABL's intervention can sometimes be jarring. Users transitioning from a dark application to a bright white document may notice the screen momentarily flash bright before the limiter aggressively dims the output to protect the panel.[3]

Display manufacturers are increasingly developing more sophisticated ABL algorithms to make these transitions less noticeable. EIZO Corporation, which launched the ColorEdge CG3200X OLED monitor in September 2026, implemented a system that analyzes both overall brightness and spatial distribution to reduce unnecessary dimming.[4]

Ultimately, until a fundamentally new emissive material replaces current organic compounds, smartphone brightness will remain a tale of two metrics. The headline-grabbing peak figures will continue to climb, but the practical outdoor legibility will remain anchored by the strict thermal realities of the Automatic Brightness Limiter.[5]
