Why OLED Monitors Cause Text Fringing and How 2026 Panels Fix It

Operating system developers dictate how text appears on a screen by assuming a specific physical arrangement of pixels. Microsoft and Apple built their font rendering engines around the standard vertical red-green-blue stripe found in almost every LCD monitor. When panel manufacturers introduce new geometries, the software continues applying the old math.[1][4]

This disconnect is why many early OLED monitors display colored shadows around text. Windows ClearType attempts to sharpen fonts by manipulating individual subpixels, assuming they sit in a neat vertical row. When it encounters the triangular layouts of QD-OLEDs or the four-color grids of WOLEDs, it illuminates the wrong physical space.[1][2]

The geometry of a pixel

To understand the rendering failure, you have to look at the physical structure of the display. A traditional LCD pixel is divided into three tall, narrow rectangles: red on the left, green in the middle, and blue on the right. Because this layout is universal, software can treat each subpixel as a separate horizontal coordinate.[1][4]

By addressing subpixels individually, Windows ClearType effectively triples a monitor's horizontal resolution for text rendering. As Microsoft's own documentation explains, "ClearType works by accessing the individual vertical color stripe elements in every pixel of an LCD screen." If a letter's curve needs to stop halfway through a pixel, the operating system simply turns off the red subpixel.[1]

OLED manufacturers abandoned this vertical stripe to solve different engineering challenges. Samsung's early QD-OLED panels use a triangular triad layout, placing the green subpixel above the red and blue to maximize the emissive area and improve panel lifespan. LG's WOLED panels add a fourth white subpixel to boost peak brightness, arranging them in RWBG or RGWB patterns.[2]

When software meets incompatible hardware

When Windows ClearType applies its RGB-stripe math to a triangular QD-OLED layout, the rendering breaks down. The operating system expects to find a green subpixel next to a red one, but instead finds empty space or a blue subpixel. The resulting illumination bleeds outside the intended boundary of the letter.[2][4]

This misalignment produces chromatic fringing, most commonly visible as a thin green line at the bottom of a window and a purple line at the top. On thin fonts or spreadsheet gridlines, the text appears to have a colored shadow. The effect is particularly jarring for programmers and writers who stare at high-contrast text for hours.[2]

The artifacts manifest differently depending on the exact panel technology. Because QD-OLED uses a triangular layout, its fringing is distinctly chromatic, showing bright color edges. WOLED panels, with their alternating white subpixels, often produce a shadow-like displacement or uneven boldness, making the text look smeared rather than brightly outlined.[2]

Windows users have attempted to fix this mismatch using third-party rendering tools like MacType or BetterClearTypeTuner. These utilities allow users to force grayscale antialiasing, bypassing the chromatic subpixel rendering entirely. While this removes the colored fringes, it leaves the text looking noticeably thinner and more jagged, sacrificing the smoothness that ClearType provides.[3]

Software workarounds and the macOS approach

Apple took a completely different approach to the subpixel problem. In 2018, with the release of macOS Mojave, Apple removed subpixel antialiasing from its operating system entirely. Instead of trying to manipulate individual color channels, macOS relies exclusively on grayscale antialiasing, which simply adjusts the brightness of whole pixels to smooth edges.[3]

Because macOS treats every pixel as a single unit, it never triggers the chromatic fringing seen on Windows. However, grayscale antialiasing requires a massive amount of pixel density to look sharp. On lower-resolution OLED monitors, Mac text appears noticeably softer and blurrier than it would on a comparable LCD, forcing users to upgrade to 4K displays.[3]

Furthermore, macOS scaling exacerbates the issue on non-standard resolutions. If a user selects a scaling factor that is not a perfect integer multiple of the hardware resolution, the operating system interpolates the entire framebuffer. Combined with the lack of subpixel antialiasing, this makes 1440p OLEDs perform exceptionally poorly for text clarity on Apple silicon.[3]

The density threshold

The visibility of subpixel fringing is ultimately a function of angular resolution. If the pixels are packed tightly enough, the human eye cannot resolve the individual color errors, regardless of how the operating system renders them. The threshold for this visual blending depends on both the monitor's pixel density and the user's viewing distance.[2][5]

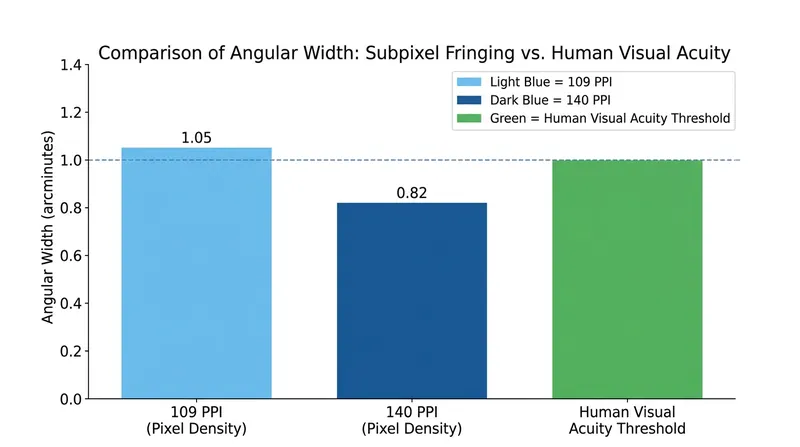

At a standard desk viewing distance of 30 inches, 20/20 human vision can resolve details down to about one arcminute. On a 27-inch 1440p QD-OLED monitor, which has a density of 109 pixels per inch, a single subpixel rendering error spans 1.05 arcminutes. Because this exceeds the visual acuity threshold, the color bleed is clearly visible.[2][5]

When you scale up to a 32-inch 4K OLED monitor, the density increases to 140 pixels per inch. At this density, the same subpixel error shrinks to just 0.82 arcminutes from 30 inches away. The fringing still exists at the software level, but it falls below the threshold of human perception, rendering the ClearType mismatch mathematically invisible.[2][5]

For users who demand absolute text perfection without relying on density thresholds, high-resolution IPS panels remain the benchmark. A 27-inch 5K IPS monitor reaches 218 pixels per inch while maintaining the native RGB stripe layout. This combination aligns perfectly with both Windows and macOS rendering engines, producing zero chromatic fringing under any conditions.[2]

The 2026 hardware correction

Rather than waiting for Microsoft to rewrite Windows ClearType, panel manufacturers are changing their hardware to match the software. To resolve the text clarity complaints documented in Rtings' display testing, Samsung Display has introduced a "V-Stripe" layout for its next generation of QD-OLED monitors.[2][5]

This new V-Stripe design aligns the red, green, and blue quantum dot subpixels in straight vertical columns, abandoning the triangular triad. While the individual subpixels are not all the exact same size, their vertical orientation perfectly matches the logic that ClearType expects. Early testing shows this hardware-level correction essentially eliminates chromatic fringing.[2][5]

LG Display is making a similar transition with its latest Tandem OLED panels. The newest generation of WOLED monitors drops the older RWBG arrangement in favor of a standard RGB subpixel layout. By ensuring that a red, green, and blue subpixel always sit next to each other in the traditional order, these panels restore native text clarity.[2]

For consumers buying a monitor today, the subpixel layout dictates the required resolution. If you purchase an older triangular QD-OLED or RWBG WOLED, you must opt for a 4K panel to push the fringing below the visual threshold. If you purchase a 2026 V-Stripe or RGB OLED, you can safely drop down to 1440p without sacrificing text clarity.[2][5]
