How Sub-Milliamp Circuits Starve Mouse Switches and Cause Phantom Double Clicks

Inside a hardware testing lab in 2014, engineers measuring the first generation of low-latency wireless gaming mice noticed a voltage anomaly. An oscilloscope hooked to the primary left-click switch revealed that the internal circuit pushed just 0.1 milliamps of current through the mechanical contacts.[4]

That single measurement explains why premium gaming peripherals routinely develop phantom double clicks within a year of purchase. If a $150 mouse registers two inputs for every physical click, the mechanical spring has not failed. The circuit simply lacks the electrical force to keep the switch clean.[4]

The root cause is a physics concept called wetting current. Mechanical microswitches rely on a microscopic electrical arc to burn off natural oxidation that forms on their metal contacts. Without that arc, a resistive film builds up on the copper and silver alloys.[3]

To generate that cleansing arc, the switch requires a minimum amount of electrical current. Omron, the manufacturer behind the vast majority of gaming mouse switches, explicitly rates its standard D2FC microswitches for a minimum applicable load of 1 milliamp at 5 volts direct current.[1]

The Wireless Power Deficit

Modern wireless mice operate far below that 1-milliamp threshold. To achieve hundreds of hours of battery life from a lightweight lithium-ion cell, peripheral manufacturers shifted to ultra-low-power microcontrollers. These chips operate at 3.3 volts or lower, drastically reducing the energy flowing through the device.[2]

The Nordic Semiconductor nRF52840, a popular microcontroller in high-end wireless mice, uses internal pull-up resistors to detect switch closures. According to its product specification, this architecture limits the GPIO pin current to roughly 0.1 to 0.2 milliamps.[2]

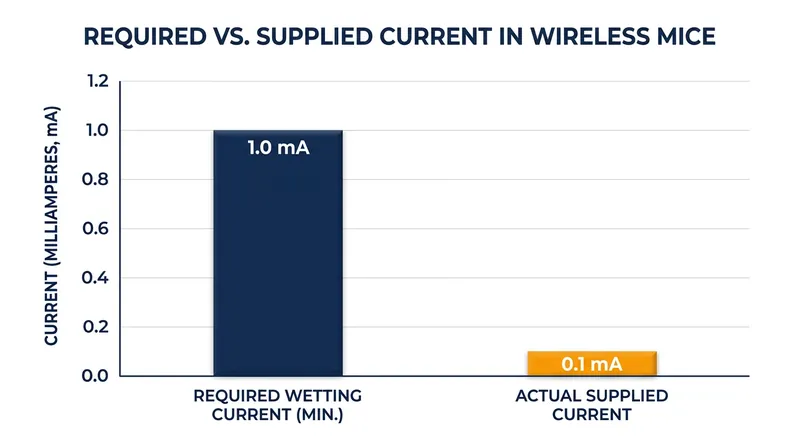

This creates a severe electrical mismatch. The mouse circuit supplies less than 20 percent of the wetting current the mechanical switch requires to maintain its contacts. The switch operates in a starved state, allowing oxidation to accumulate on the metal surfaces with every click.[4]

"When operating switches in low-current circuits, use a switch with gold contacts to prevent contact reliability issues caused by oxidation," states the Omron D2F engineering datasheet. Yet, to keep manufacturing costs down, many peripheral brands continued using standard silver-alloy switches in sub-milliamp circuits.[1]

How Oxidation Causes Double Clicks

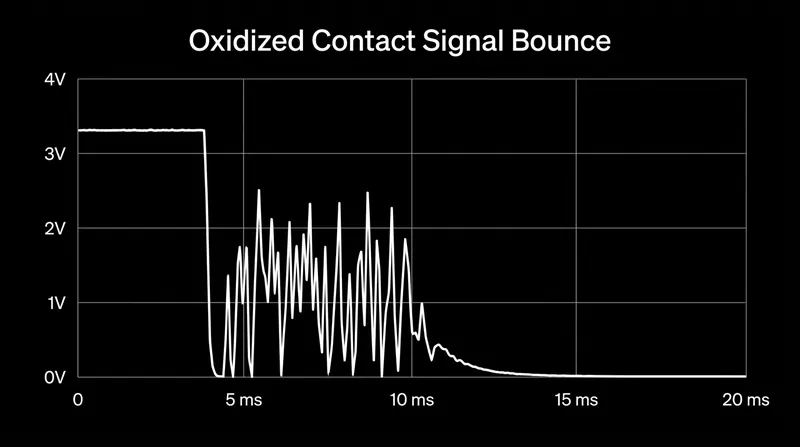

As the oxidation layer thickens, it acts as a microscopic insulator. When the user presses the mouse button, the metal contacts physically touch, but the electrical signal struggles to pierce the resistive film. The voltage fluctuates wildly instead of dropping cleanly to zero.[3]

The microcontroller interprets this fluctuating voltage as multiple rapid closures. A single physical press registers as two, three, or four distinct electrical signals within a span of 10 milliseconds. The computer receives a double click, interrupting drag-and-drop actions and misfiring weapons in games.[4]

Manufacturers initially masked this hardware failure with software. Firmware engineers implemented debounce algorithms, which instruct the microcontroller to ignore any secondary signals that occur within a specific time window after the initial click. A standard debounce delay lasts between 4 and 12 milliseconds.[2]

Software debounce works until the oxidation becomes too severe. Once the contact resistance degrades enough, the voltage fluctuations stretch beyond the 12-millisecond window. At that point, the firmware registers the delayed bounce as a legitimate second click, and the software band-aid fails entirely.[4]

The Competitive Gaming Catalyst

The double-clicking epidemic accelerated in 2020 when competitive gamers began demanding lower latency. To reduce input lag, players used custom software to lower their mouse debounce times from 10 milliseconds down to 2 milliseconds or even zero.[4]

Removing the software filter exposed the underlying hardware mismatch immediately. Switches that appeared to function perfectly under a 10-millisecond debounce delay began double-clicking erratically the moment the filter was lifted. The oxidation was already there; the software was just hiding it.[4]

"The minimum applicable load is the smallest current and voltage that can be reliably switched," notes the IEEE analysis on micro-contacts. By starving the switch of that load and then stripping away the software protection, the gaming peripheral industry engineered a guaranteed failure point.[3]

Replacing the faulty switch requires desoldering the component from the printed circuit board. While a replacement Omron switch costs less than $2, the specialized tools and technical skill required put this repair out of reach for most consumers, forcing the purchase of a new device.[4]

The Pivot to Optical Switches

To solve the wetting current problem without sacrificing battery life, the industry is abandoning mechanical contacts entirely. Premium mice now increasingly feature optical microswitches. These components replace the physical metal contacts with an infrared light emitter and a photo-sensor.[4]

When the user presses an optical switch, a physical shutter moves out of the way, allowing the infrared beam to strike the sensor. Because the electrical signal relies on light rather than metal-on-metal contact, there is no oxidation to burn off and no wetting current required.[4]

Optical switches eliminate the double-click bug at the hardware level. They require zero debounce delay, allowing manufacturers to advertise sub-millisecond input latency without risking false actuations. The microcontroller registers a clean, instant signal the moment the light hits the sensor.[2]

This transition comes with a distinct trade-off in tactile feedback. Mechanical switches generate their signature crisp click from the physical snap of the metal leaf striking the contact pad. Optical switches must simulate this feel with a separate torsion spring, which many users find hollow or mushy.[4]

Navigating the Current Market

For consumers purchasing a new gaming mouse in 2026, checking the switch specification is the only reliable defense against premature failure. Devices advertising optical switches are immune to the sub-milliamp oxidation issue, regardless of the microcontroller's operating voltage.[4]

If a preferred mouse only offers mechanical switches, buyers should verify whether the manufacturer uses gold-plated contacts. Switches like the Kailh GM 8.0 or TTC Gold utilize gold alloys specifically to resist oxidation in low-current environments, extending their reliable lifespan significantly compared to silver-alloy models.[1]

The lifespan ratings printed on mouse boxes—often boasting 50 million or 80 million clicks—measure only physical metal fatigue in a sterile testing environment. They do not account for the electrical starvation that actually kills the switch in real-world use.[3]

The peripheral industry's shift to optical technology will eventually phase out the double-click bug entirely. Until older mechanical designs clear the supply chain, buyers must check whether a $150 mouse relies on a $1 silver switch operating at 10 percent of its required power.[4]
