How DisplayPort DSC Compresses 4K 240Hz Video Without Latency by Slicing Frames

Streaming a 4K movie on Netflix relies on comparing one frame to the next to save data, a process that inherently delays the image by several milliseconds. Display Stream Compression (DSC) solves the same bandwidth problem for high-refresh-rate gaming monitors, but it abandons multi-frame comparison entirely. Instead, it mathematically shrinks a single image in microseconds by dividing it into isolated horizontal slices.[2]

The actionable takeaway for buyers is that a monitor relying on DSC does not introduce input lag, making 4K 240Hz displays viable on older graphics cards. Gamers can safely purchase DisplayPort 1.4 monitors that use DSC without compromising their competitive reaction times. The technology operates so quickly that the human eye and standard testing equipment cannot detect the processing delay.[2]

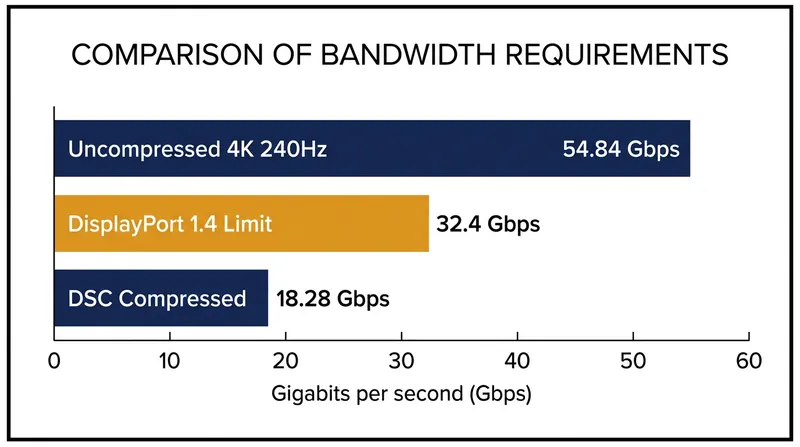

Driving a 4K display at 240 frames per second requires pushing 54.84 gigabits of uncompressed data every second. That throughput exceeds the 32.4 Gbps maximum capacity of the widely adopted DisplayPort 1.4 standard by nearly 70 percent. Without a compression mechanism, users would be forced to drop their refresh rate to 120Hz or degrade their color depth to fit the available pipe.

The Video Electronics Standards Association (VESA) introduced DSC specifically to bridge this hardware gap. By applying a visually lossless algorithm, the standard reduces the video payload by up to a 3:1 ratio. This allows a massive 54.84 Gbps signal to squeeze through a standard 32.4 Gbps cable, unlocking maximum monitor performance without requiring a costly DisplayPort 2.1 graphics card upgrade.[1]

Slicing the Frame for Speed

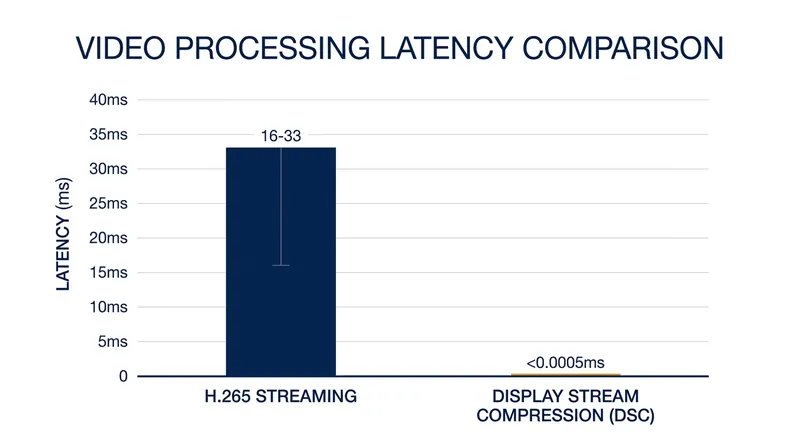

Traditional video codecs like H.265 achieve massive compression by holding multiple frames in a buffer and calculating the differences between them. That buffering creates a mandatory delay of at least 16 to 33 milliseconds, which ruins the responsiveness required for competitive gaming. DSC avoids this entirely by processing only the current frame, ignoring what came before or what comes next.[1][2]

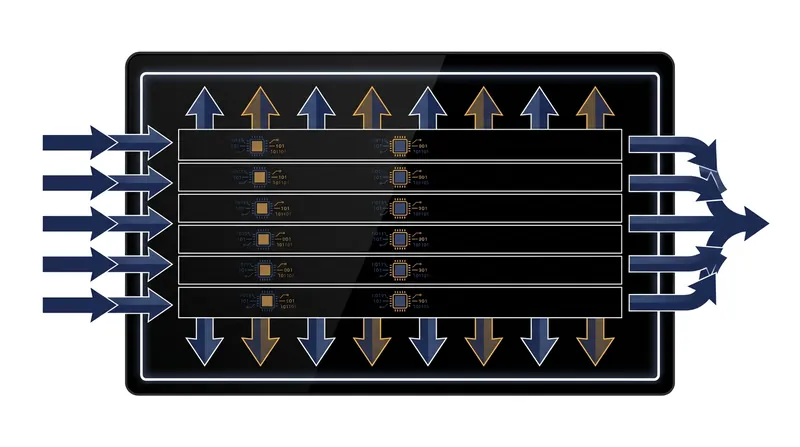

To achieve microsecond speeds, the DSC algorithm divides the 4K image into a grid of independent rectangles called slices. A standard 3840 by 2160 resolution frame is typically cut into 8 or 16 horizontal bands. The monitor's display controller processes these slices simultaneously in parallel, rather than scanning the image sequentially from top to bottom.

"The slice-based architecture is what guarantees the sub-microsecond latency," explains the 2024 VESA technical overview on display standards. "Because each slice is compressed and decompressed independently, the display pipeline never has to wait for the entire frame to arrive." This parallel processing keeps the total encode-decode delay under 0.5 microseconds.

Inside each slice, the algorithm predicts the color of the next pixel based on the pixels immediately to its left and above it. If a pixel in a blue sky is identical to its neighbor, the system transmits only the mathematical difference—which is zero—rather than sending the full 24-bit color value again. This predictive coding strips out redundant data instantly.[1]

Managing the Color History

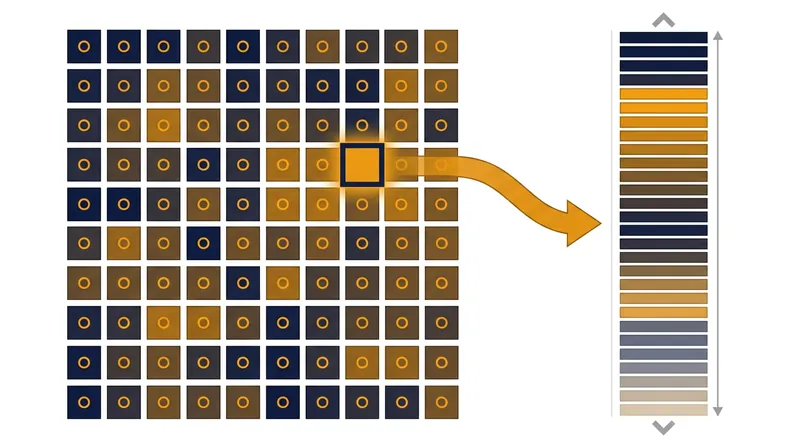

When a pixel cannot be easily predicted, DSC relies on an Indexed Color History to save bandwidth. The encoder maintains a rolling list of the 32 most recently used colors within that specific slice. If a complex texture reuses a recent shade, the system sends a 5-bit index pointer instead of the full 24-bit RGB value.[1]

This localized history is why the independent slices are critical to the algorithm's speed. If the history tracked the entire 8.3-million-pixel frame, searching the index would take too long and introduce latency. By restricting the color history to a single horizontal slice, the silicon can find matches and compress the data in a fraction of a millisecond.[1][2]

To prevent the compression from becoming visible, DSC dynamically adjusts its aggression based on the image content. Flat areas like a gray menu bar are compressed heavily, freeing up data budget for complex regions like a detailed foliage texture. This rate control mechanism ensures the total data rate remains perfectly constant, preventing bandwidth spikes that could drop the signal.

"Visually lossless means that under strict viewing conditions, a human observer cannot distinguish the compressed image from the uncompressed original," notes a 2025 display analysis by TFTCentral. Their testing confirmed that even at a 3:1 compression ratio, color gradients and fine text remain perfectly sharp on high-density 4K panels.

Hardware Requirements and Limits

While the compression is invisible, utilizing DSC requires compatible hardware on both ends of the DisplayPort cable. The graphics card must feature a hardware encoder capable of slicing the frame, a standard included on Nvidia RTX 20-series and AMD Radeon RX 5000-series GPUs or newer. Older cards will simply output a black screen or cap the refresh rate at 120Hz.[2]

On the receiving end, the monitor's scaler chip must feature a hardware decoder to reassemble the slices. Because this decompression happens entirely in the monitor's silicon, it requires no software drivers or CPU overhead from the host computer. The process is entirely plug-and-play, activating automatically when the bandwidth demand exceeds the cable's uncompressed limit.

The only functional limitation of DSC involves multi-monitor setups using daisy-chaining. Because the compressed 4K 240Hz signal still consumes the majority of a DisplayPort 1.4 connection's bandwidth, there is rarely enough capacity left over to drive a second high-resolution display on the same cable. Users must run dedicated cables from the graphics card for each high-refresh monitor.

Furthermore, activating DSC often disables legacy features like Nvidia's Deep Learning Dynamic Super Resolution. These driver-level downsampling tools require direct access to the uncompressed frame buffer, which the graphics card cannot provide once the image is sliced and encoded. Buyers relying on specific driver-level image scaling should verify compatibility before purchasing a DSC-reliant display.

The Transition to DisplayPort 2.1

The necessity of DSC is shifting as the industry slowly adopts the DisplayPort 2.1 standard. The new specification increases the maximum uncompressed bandwidth to 80 Gbps, enough to drive a 4K 240Hz monitor natively without slicing the frame. However, as of late 2026, only a handful of flagship graphics cards and premium monitors feature the necessary silicon.

Even with the wider pipe of DisplayPort 2.1, DSC remains a permanent fixture in display technology. Manufacturers are already pushing toward 8K resolutions and 480Hz refresh rates, which demand an astonishing 250 Gbps of bandwidth. Hitting those next-generation targets will require combining the 80 Gbps physical cable with the 3:1 mathematical compression of DSC.[1]

"Bandwidth demands are scaling much faster than physical cable capabilities," reports the 2026 IEEE symposium on display interfaces. "DSC is not a stopgap for older cables; it is the foundational algorithm that will allow consumer displays to push past the 100-gigabit barrier over the next decade."[1]

For consumers building a gaming setup today, the presence of DSC on a spec sheet is a feature, not a compromise. It allows a mid-range graphics card to drive a premium high-refresh monitor without forcing the user to buy a new motherboard or proprietary cables. The mathematical slicing delivers the exact visual experience of an uncompressed signal, with zero penalty to reaction times.[2]

Thermal and Mobile Advantages

The efficiency of this slice-based approach also reduces the thermal load on the monitor's internal components. Processing a massive 54 Gbps uncompressed stream generates significant heat within the display controller, often requiring active cooling fans inside the monitor chassis. By receiving a compressed 18 Gbps stream, the scaler chip runs cooler and allows for silent, fanless monitor designs.

This thermal advantage extends to gaming laptops, where battery life and heat dissipation are critical constraints. Routing a compressed signal from the laptop's dedicated GPU to its internal display panel saves precious milliwatts of power. The VESA consortium estimates that utilizing DSC on a high-resolution laptop display can extend battery life by up to 15 minutes during heavy graphical workloads.[1]

Apple's integration of DSC in its latest hardware further validates the standard's utility beyond competitive gaming. The company relies on the algorithm to drive its high-density Retina displays over standard Thunderbolt 4 cables, ensuring creative professionals get 10-bit color depth without latency. The slicing mechanism ensures that stylus inputs on drawing tablets register instantly on the compressed display.[2]

Ultimately, the success of Display Stream Compression lies in its strict adherence to a single task. By refusing to compare multiple frames, it sacrifices the massive file-size reductions seen in streaming video codecs. In exchange, it delivers the sub-microsecond speed required to trick the human eye, keeping the physical cables thin and the hardware costs manageable.[1][2]
