The 1-Year Data Retention Threshold: Why an SSD's Terabytes Written Rating is a Warranty, Not a Failure Point

The lifespan of a solid-state drive is not determined when its memory cells physically shatter, but at the exact moment its silicon can no longer hold an electrical charge for 365 consecutive days without power. This is the JEDEC JESD218 client standard, the threshold that dictates every Terabytes Written (TBW) rating on the market.[1]

Consumers shopping for gaming laptops or storage upgrades often view the TBW number as a death clock. If a 1-terabyte drive is rated for 600 TBW, the assumption is that writing the 601st terabyte will brick the hardware and permanently lock away the data.

That assumption is false. The TBW rating is a warranty boundary, not a physical failure point. According to PCWorld, the metric exists primarily to protect manufacturers from enterprise users burning out consumer drives in server farms, serving as a legal expiration date rather than a mechanical one.[2]

To understand why a drive survives past its TBW rating, you have to look at how NAND flash memory actually degrades. Data is stored by trapping electrons inside floating-gate transistors. Every time data is erased and rewritten—a process requiring a relatively high voltage pulse—the insulating oxide layer holding those electrons degrades.

"As the flash memory cycles, the oxide degrades, and the ability to retain charge decreases," notes Western Digital's engineering white paper on SSD endurance. Over time, electrons begin to leak out of the cells.[1]

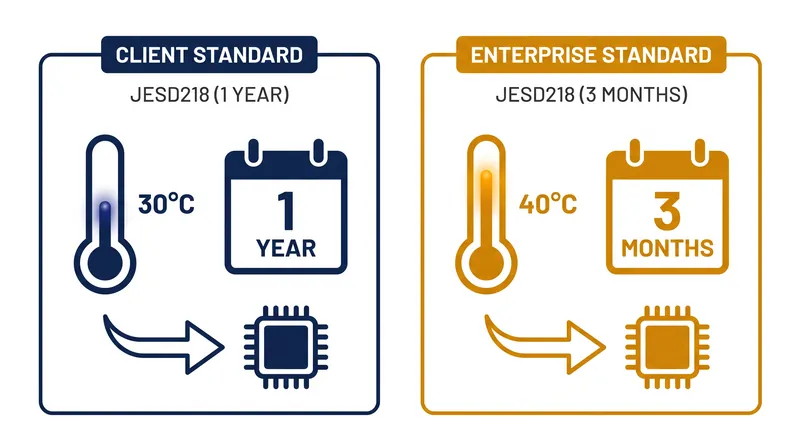

This leakage is where the 1-year data retention rule comes in. The Joint Electron Device Engineering Council (JEDEC), the organization that standardizes solid-state memory, established the JESD218 standard for client SSDs. It mandates that a drive must be able to retain its data for one full year while completely unpowered at 30 degrees Celsius (86 degrees Fahrenheit) at the very end of its rated life.[1]

Therefore, a 600 TBW rating means that after writing 600 terabytes of data, the drive's oxide layer has degraded exactly to the point where it can only guarantee that 12-month unpowered retention. It does not mean the drive stops working while plugged into a motherboard.

In real-world use, a drive that has surpassed its TBW limit will continue to operate normally as long as it receives regular power. The controller actively manages data, and background processes refresh the charge in the cells while the system is on.

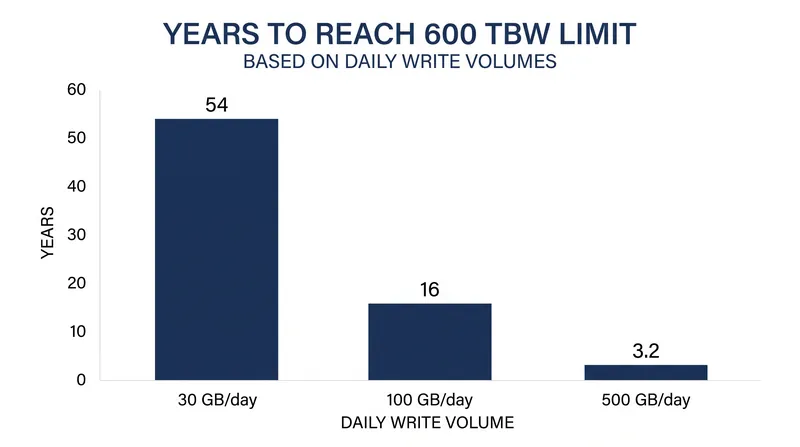

Oreton's 2026 technical breakdown of SSD endurance highlights that typical consumer workloads rarely approach these limits. A heavy user might write 20 to 30 gigabytes per day. At 30 gigabytes daily, it would take over 54 years to exhaust a 600 TBW rating.[3]

Even in gaming, where modern titles routinely exceed 100 gigabytes, the writes are sequential and infrequent. You download the game once, and from then on, the drive is primarily reading data—an operation that causes zero degradation to the oxide layer.

"TBW is a measure of endurance, not a strict expiration date," explains Kingspec Tech's engineering blog. The metric is calculated using a standardized workload that assumes a worst-case scenario of random writes, which stress the controller and memory cells far more than the sequential writes typical of consumer use.[4]

The true risk of exceeding the TBW rating only materializes if you pull the drive out of your computer and put it in a drawer. If the drive is unpowered, the degraded oxide layer will allow electrons to leak. After a few months, the voltage states will shift, and the data will become corrupted.

StorageReview's foundational 2010 analysis of SSD endurance established that temperature plays a massive role in this leakage rate. For every 10-degree Celsius increase in storage temperature, the unpowered data retention time is roughly halved.[5]

This is why enterprise drives use a completely different standard. JEDEC requires enterprise SSDs to retain data for only three months without power, but at a higher temperature of 40 degrees Celsius, reflecting the reality of hot data center environments.[1]

For the consumer, the actionable takeaway is simple: buy the capacity you need, and ignore the TBW rating unless you are plotting chia coin or running a 24/7 database server. The drive will almost certainly be replaced for capacity reasons long before its oxide layer degrades to the JEDEC threshold.

If you do have an old SSD that has seen heavy use, its best second life is as a secondary drive in a desktop that sees daily power. Its worst second life is as an external backup drive tossed into a closet, where its compromised retention capabilities will eventually lead to silent data loss.
