The 18 Gbps vs. 48 Gbps Difference: How HDMI 2.1 Bandwidth Dictates 4K/120Hz and Variable Refresh Rate Support

On January 4, 2017, the HDMI Forum fundamentally changed display connectivity by detailing the HDMI 2.1 specification, expanding the standard's maximum bandwidth from 18 gigabits per second to 48 gigabits per second. That 30 Gbps expansion was not an incremental update; it was the physical pipeline required to move uncompressed 4K video at 120 frames per second. Today, that bandwidth threshold dictates whether a modern gaming console or high-end PC can actually deliver the performance printed on the box.[7][8]

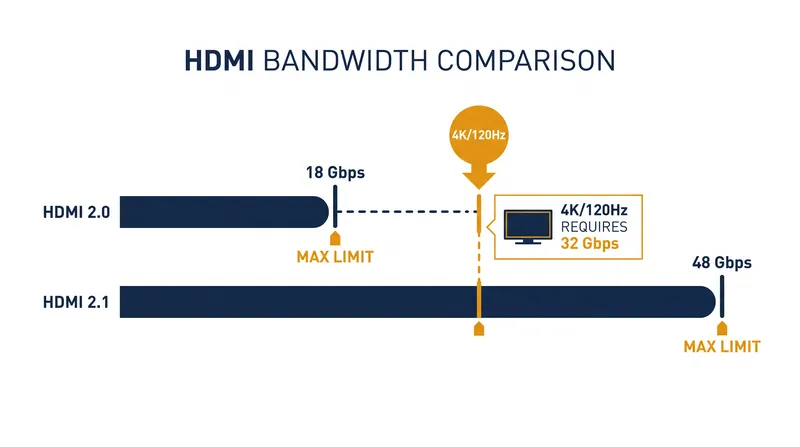

The math governing display cables is absolute. A standard 4K resolution (3840 by 2160 pixels) running at 60 frames per second with 8-bit color requires roughly 12.54 Gbps of data throughput. HDMI 2.0, which caps out at 18 Gbps, handles this comfortably. But doubling the frame rate to 120Hz, while simultaneously bumping the color depth to 10-bit for High Dynamic Range (HDR), pushes the uncompressed data requirement past 32 Gbps.[1][2][3]

When a user connects a PlayStation 5 or an Xbox Series X to a display using an older HDMI 2.0 port, the hardware hits a physical wall. Because the 18 Gbps cable cannot carry a 32 Gbps signal, the system must compromise. It will either drop the resolution to 1440p or 1080p, cut the frame rate back to 60Hz, or heavily compress the color data using chroma subsampling, dropping from a pristine 4:4:4 signal to a compressed 4:2:2 or 4:2:0 format.[1][3][6][8][9]

HDMI 2.1 solves this bottleneck by utilizing a new signaling technology called Fixed Rate Link (FRL). While HDMI 2.0 relied on Transition Minimized Differential Signaling (TMDS) with three data channels operating at 6 Gbps each, FRL uses four lanes operating at 12 Gbps each. This architectural shift provides the 48 Gbps ceiling necessary for uncompressed 4K at 120Hz, and even leaves headroom for 8K at 60Hz.[5][6][7][8]

Beyond raw pixel throughput, the 48 Gbps pipeline enables Variable Refresh Rate (VRR). VRR allows the display to sync its refresh rate dynamically with the graphics card's output, eliminating screen tearing and stuttering during frame rate drops. While some manufacturers retrofitted basic VRR support onto HDMI 2.0 ports, the official HDMI 2.1 specification integrates it natively alongside Auto Low Latency Mode (ALLM), which automatically switches the television into its fastest gaming preset.[4][5][7][8]

Not all HDMI 2.1 ports are created equal, which complicates the buying process. The HDMI Licensing Administrator allows manufacturers to label ports as "HDMI 2.1" even if they do not support the full 48 Gbps bandwidth, provided they support at least one HDMI 2.1 feature like eARC or ALLM. Consequently, some televisions and monitors feature ports capped at 24 Gbps or 40 Gbps.[2][5]

A 40 Gbps port is generally sufficient for 4K at 120Hz with 10-bit color, as the signal requires roughly 32 Gbps. However, PC gamers utilizing 12-bit color depth at 4K/120Hz will saturate a 40 Gbps connection and require the full 48 Gbps pipeline to avoid Display Stream Compression (DSC).[1][2][6]

Display Stream Compression is a visually lossless algorithm that compresses the video signal before it travels down the cable, decompressing it at the display. While DSC allows 18 Gbps HDMI 2.0 ports to occasionally punch above their weight, relying on native uncompressed bandwidth via a 48 Gbps HDMI 2.1 connection ensures lower latency and guarantees compatibility across all source devices.[3][5][9]

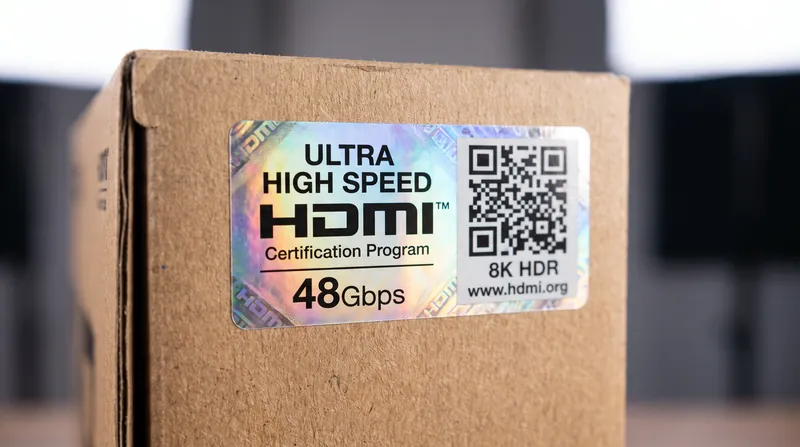

The cable itself also matters. To guarantee 48 Gbps transmission over longer distances, buyers must look for cables certified as "Ultra High Speed" by the HDMI Forum. Older "High Speed" cables designed for HDMI 2.0 will physically fit into the port but lack the shielding and wire gauge to maintain signal integrity at 48 Gbps, resulting in screen blackouts or flickering when pushing 4K/120Hz.[3][4][8]

While the technical documentation provided by the HDMI Forum and reviewed across industry sources does not contain direct conversational quotes from engineers, the mathematical specifications speak for themselves. The data rates required for modern gaming simply do not fit inside older cables.[7][10]

For consumers, the actionable takeaway is strict verification. When purchasing a display for modern gaming, checking the spec sheet for "HDMI 2.1" is no longer enough. Buyers must verify the specific bandwidth allocation of the ports—ideally 40 Gbps or 48 Gbps—and confirm explicit support for 4K at 120Hz and native VRR. For the current generation of gaming hardware, the jump from 18 Gbps to 48 Gbps represents the difference between compromised, compressed video and the exact signal the graphics processor intended to send.[2][5][6][9]
