Comparing Dolby Vision, HDR10+, and VESA DisplayHDR: How Dynamic Metadata and Peak Luminance Dictate Display Costs

The difference between Dolby Vision, HDR10+, and VESA DisplayHDR comes down to software instructions versus hardware muscle. Dolby Vision and HDR10+ are software formats that tell a display exactly how bright or dark to make each specific scene, while VESA DisplayHDR is a hardware certification proving the monitor can actually reach the brightness levels those formats demand.[1][2]

Without the hardware to back it up, dynamic metadata is useless. A monitor can decode a Dolby Vision signal, but if its peak luminance is only 400 nits, the image will lack true high dynamic range. This is where the Video Electronics Standards Association (VESA) DisplayHDR tiers come in, testing and certifying the physical capabilities of the panel rather than just its software compatibility.[1][5]

The baseline for high dynamic range is HDR10, an open standard that uses static metadata. It sets the brightness and color parameters once for the entire film or game. If a movie has a bright desert scene and a dark cave scene, static metadata forces a compromise that serves neither perfectly, capping the entire file at a single maximum luminance value.[2][4]

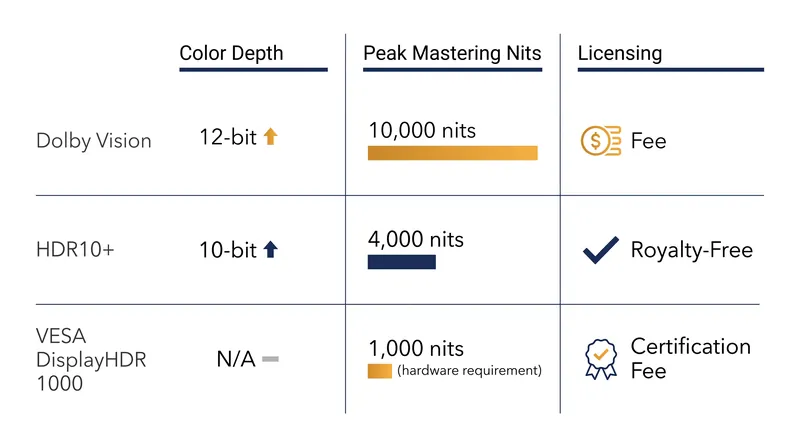

Dolby Vision solves this static limitation with dynamic metadata, adjusting the tone mapping frame-by-frame. It also supports 12-bit color depth, theoretically allowing for 68.7 billion colors, and mastering up to 10,000 nits of peak brightness. However, manufacturers must pay a licensing fee to include Dolby Vision, which increases the retail price of the display.[2][3][5]

HDR10+ was developed as a royalty-free alternative to Dolby Vision. It also uses dynamic metadata to adjust brightness scene-by-scene, but it is capped at 10-bit color, which delivers 1.07 billion colors, and a peak mastering brightness of 4,000 nits. Because it carries no licensing fee, HDR10+ is often found on more budget-friendly displays that still want to offer dynamic tone mapping without the premium markup.[3][4]

The confusion for buyers arises when these software formats intersect with hardware limits. VESA's DisplayHDR 400 requires a peak luminance of just 400 cd/m2, which barely qualifies as true HDR. To genuinely benefit from the dynamic metadata of Dolby Vision or HDR10+, a display needs a minimum of DisplayHDR 1000 certification, which guarantees 1,000 nits of peak brightness and mandates local dimming zones.[1][5]

Paying a premium for a Dolby Vision license on a DisplayHDR 400 monitor yields diminishing returns. The screen simply cannot get bright enough to render the specular highlights the dynamic metadata is asking for. Conversely, a DisplayHDR 1000 monitor running royalty-free HDR10+ will often outperform a dimmer Dolby Vision screen, proving that hardware luminance dictates the final image quality more than the software format.[1][2][4]

Because these are technical standards and hardware specifications, the documentation from VESA and independent testers relies entirely on published metrics rather than statements from individual engineers. The numbers dictate the market: check the VESA DisplayHDR tier first to establish the hardware baseline. Only after confirming a peak luminance of at least 600 to 1,000 nits does the choice between Dolby Vision and HDR10+ become a meaningful factor in the display's performance.[1][5]
