DisplayHDR 400 Lacks Local Dimming Mandates: Why VESA's Entry Badge Lifts Black Levels to Gray and Fails Real Dynamic Range

When a monitor receives a High Dynamic Range signal, the backlight controller must decide whether to illuminate the entire screen at once or dim specific zones independently. This single hardware decision dictates whether a display actually produces HDR depth or simply washes out the image.

The VESA DisplayHDR 400 specification represents the entry-level tier for HDR monitors, requiring a peak brightness of 400 nits. However, the standard completely omits any mandate for local dimming hardware, allowing edge-lit panels to qualify.

Without the ability to dim specific zones, the monitor's controller must raise the global backlight to achieve the required 400-nit highlights. This brute-force approach simultaneously illuminates the dark areas of the screen, destroying shadow detail and depth.[2]

For consumers, this creates a frustrating paradox where enabling HDR mode actually degrades the perceived image quality. Instead of the deep blacks and brilliant highlights associated with true HDR, the screen produces a flat, glowing image.

The Contrast Ratio Mathematics

The core failure of DisplayHDR 400 lies in the mathematical limitations of standard In-Plane Switching (IPS) panels. A typical IPS monitor features a native static contrast ratio of approximately 1000:1, which strictly governs its dynamic range.[3]

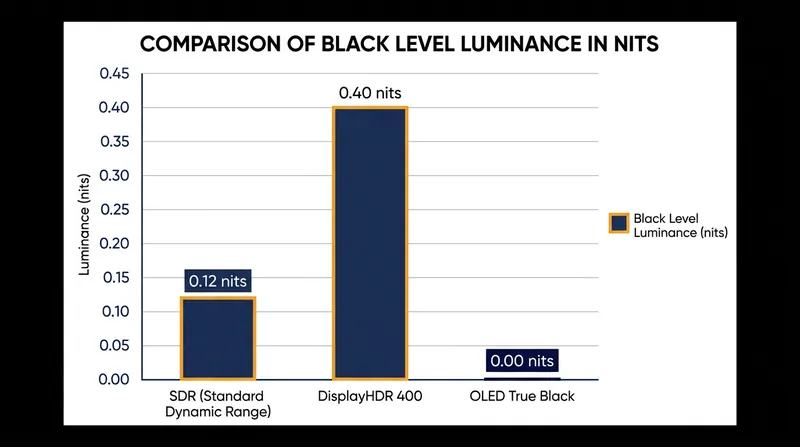

Contrast ratio measures the difference between the brightest white and the darkest black a panel can simultaneously display. If a global backlight pushes the brightest pixels to 400 nits, the darkest pixels are mathematically forced to sit at 0.4 nits.[2][3]

A black level of 0.4 nits is highly visible to the human eye, appearing as a luminous, smoky gray rather than a true black. In a dimly lit room, this elevated black floor becomes the most prominent feature on the screen.[2]

Standard Dynamic Range (SDR) viewing avoids this issue because users typically calibrate their monitors to a much lower peak brightness, often between 100 and 150 nits. At 120 nits, that same 1000:1 contrast ratio yields a black level of just 0.12 nits.[2]

By forcing the panel to its maximum brightness without independent zone control, DisplayHDR 400 actively worsens the black level compared to a properly calibrated SDR setup. The certification guarantees brightness but sacrifices the foundation of dynamic range.

The Local Dimming Requirement

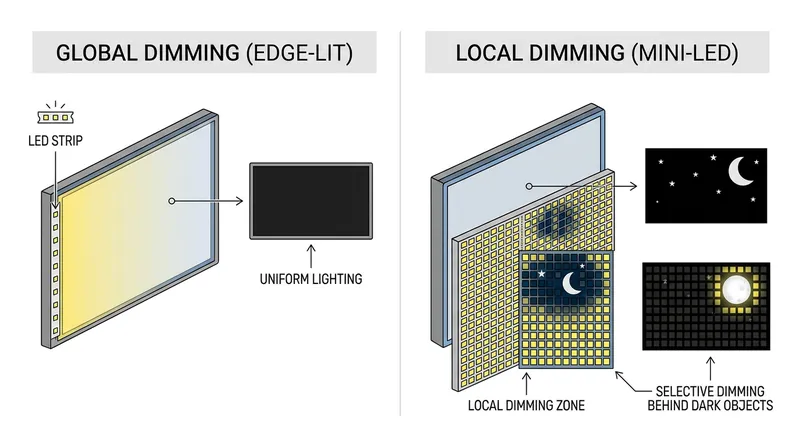

To achieve genuine high dynamic range, a monitor must physically separate the illumination of bright objects from the darkness of the surrounding scene. This requires local dimming hardware, which divides the backlight into independently controlled zones.[1]

VESA explicitly acknowledges this hardware necessity in its higher certification tiers, starting with the DisplayHDR 600 standard. The 600-level specification mandates a significant leap in contrast, requiring local dimming to achieve deeper blacks alongside 600-nit highlights.

With local dimming, a monitor can drive a small cluster of LEDs to maximum brightness for a sun glare while completely turning off the LEDs behind a night sky. This hardware intervention bypasses the native contrast limits of the LCD panel.[1]

Premium displays utilizing Full-Array Local Dimming (FALD) or Mini-LED technology often feature hundreds or thousands of these independent zones. This granular control allows them to meet the stringent requirements of DisplayHDR 1000 and 1400 without washing out the image.[1]

VESA's Attempted Standard Revisions

Recognizing the widespread criticism of the entry-level badge, VESA introduced the CTS 1.2 update to tighten the testing criteria. The revised standard mandates a minimum static contrast ratio of 1300:1 for the DisplayHDR 400 tier.

The update also requires 90 percent coverage of the DCI-P3 color gamut, ensuring that certified monitors deliver a wider range of vibrant colors. These changes successfully eliminated the lowest-quality TN and older IPS panels from receiving the badge.

Despite these improvements, the CTS 1.2 revision still stops short of mandating local dimming for the 400 tier. A 1300:1 contrast ratio slightly darkens the gray baseline, but it fundamentally fails to deliver true HDR depth.[2]

Manufacturers can achieve this new baseline using newer 'IPS Black' panels or Vertical Alignment (VA) technology, which natively reaches 3000:1 contrast. However, even a VA panel driven to 400 nits globally will exhibit a glowing black floor in dark environments.[2][3]

Consumer Confusion and Market Reality

The persistence of the DisplayHDR 400 badge creates significant confusion in the consumer monitor market. Buyers routinely purchase certified displays expecting a transformative visual upgrade, only to find the HDR mode unusable in dark games or movies.[2]

Marketing materials heavily promote the VESA certification logo, treating it as a premium feature that justifies a higher price tag. In reality, the badge often signifies little more than a monitor capable of accepting an HDR10 signal and maxing out its backlight.[2]

Display experts and reviewers frequently advise users to simply disable HDR entirely on 400-tier monitors. A hardware-calibrated SDR image consistently provides better shadow detail and a more natural viewing experience than the compromised HDR mode.[2]

For consumers seeking actual dynamic range, the entry point remains DisplayHDR 600 or higher. Until local dimming becomes a universal mandate, the baseline HDR certification will continue to represent a brightness boost rather than a contrast revolution.[2]

The Shift Toward Emissive Displays

The fundamental conflict between global backlights and HDR is ultimately being resolved by the broader industry shift toward emissive display technologies. OLED and QD-OLED panels do not rely on a backlight at all, allowing each individual pixel to generate its own light.[1]

Because an OLED pixel can turn off completely, it achieves a near-infinite contrast ratio and a true black level of 0.0000 nits. VESA created a separate 'True Black' certification track specifically to measure these emissive displays.[1]

Even at the entry-level DisplayHDR True Black 400 tier, an OLED monitor delivers a vastly superior HDR experience compared to a standard LCD DisplayHDR 400 screen. The peak brightness is identical, but the perfect black floor creates immense perceived depth.[2]

As OLED manufacturing costs decrease and Mini-LED backlights become more common in budget monitors, the traditional edge-lit LCD is losing its dominance. The era of accepting washed-out gray shadows as a compromise for HDR compatibility is rapidly ending.[1][2]
