E-Marker Chip Data vs. Cable Length: How Two Factors Dictate a USB-C Cable's Maximum Power Delivery and Data Rate

At exactly 0.8 meters, a passive copper USB-C cable hits a physical wall. Beyond this length, the high-frequency signals required to transmit data at 40 gigabits per second (Gbps) degrade into unreadable noise. To prevent a user from plugging a two-meter cable into a high-speed drive and corrupting their files, the USB Implementers Forum (USB-IF) mandates a microscopic gatekeeper: the Electronic Marker, or E-Marker chip.[2][4]

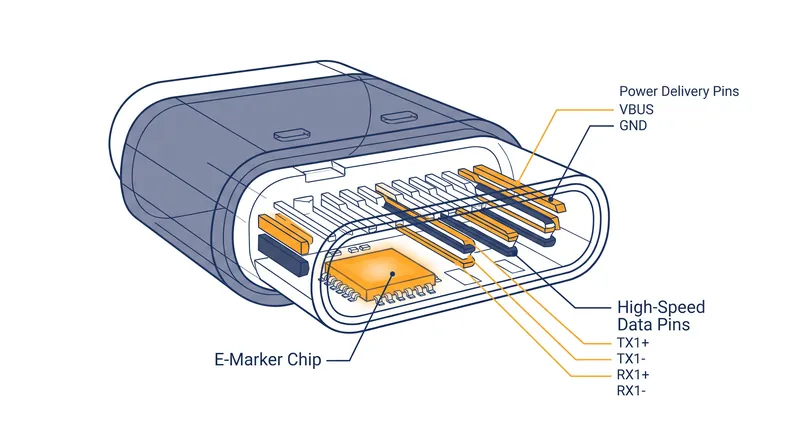

Embedded directly into the metal housing of the connector, this chip acts as the cable's digital passport. When a user connects a laptop to a charger or a monitor, the host device interrogates the E-Marker before sending a single volt of power or byte of data.[1][8]

If the chip reports that the cable is rated for 3 amps, the charger caps its output at 60 watts. If the chip reports a 5-amp rating, the charger unlocks up to 100 watts, or 240 watts under the newer Power Delivery 3.1 specification.[5]

The necessity of the E-Marker stems from the sheer amount of energy modern devices demand. Early USB standards delivered a maximum of 2.5 watts, which was enough to charge a flip phone. Today, a 240-watt Extended Power Range (EPR) cable carries enough current to power a high-end gaming laptop or a large display.[3][5]

Pushing 5 amps of current through a thin copper wire generates heat. If a charger were to push 100 watts through a cheap, uncertified cable designed for 60 watts, the internal resistance would cause the wire to melt, potentially destroying the connected devices or starting a fire.[1][6]

To prevent this, the USB-IF requires an E-Marker in any cable designed to carry more than 3 amps of current or operate at speeds higher than the baseline USB 2.0 standard of 480 megabits per second (Mbps).[1][4]

While the E-Marker dictates what the cable is allowed to do, the physical length of the copper wire dictates what it is capable of doing. Data transfer and power delivery react to distance in fundamentally different ways.[2][7]

Power delivery is primarily constrained by voltage drop. As electricity travels down a wire, the natural resistance of the copper consumes some of the voltage. To carry 240 watts over a two-meter distance, manufacturers must use thicker copper wiring, specifically a lower American Wire Gauge (AWG) rating.[3][5]

Data transfer, however, is constrained by signal attenuation. High-speed data relies on rapid electrical pulses. Over distance, these pulses lose their sharp edges, blurring together until the receiving device cannot distinguish a one from a zero.[2][7]

This creates a strict inverse relationship between a cable's length and its maximum passive data rate. A cable can passively transmit 480 Mbps over 4 meters. To hit 10 Gbps, the maximum length shrinks to 2 meters. For 40 Gbps, the speed required for Thunderbolt 4 or USB4, the physical limit for a passive copper cable is just 0.8 meters.[2][3]

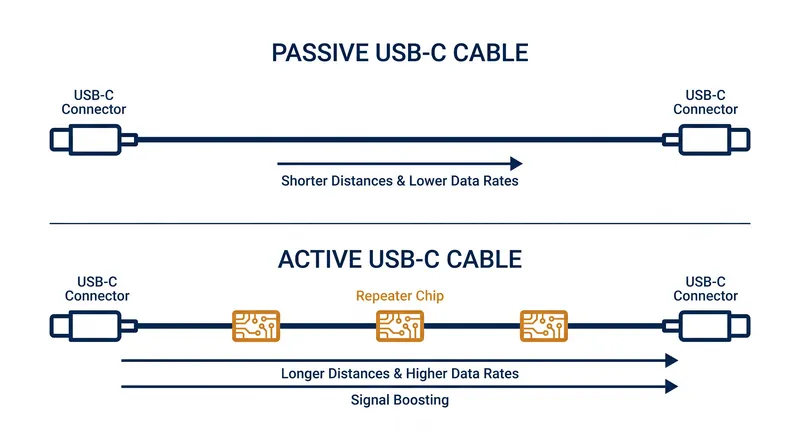

When a consumer needs a cable longer than 0.8 meters that can still handle 40 Gbps, manufacturers must transition from passive to active cables. Active cables incorporate signal repeaters alongside the E-Marker chip.[4][8]

These repeaters boost the electrical signal as it travels, pushing the 40 Gbps limit out to 2 or even 3 meters. However, this active circuitry draws its own power and significantly increases the manufacturing cost, which is why a 2-meter active Thunderbolt 4 cable often retails for more than $50.[7][8]

The E-Marker also manages Alternate Modes, a feature that allows USB-C cables to transmit non-USB signals like DisplayPort or HDMI. When a user connects a laptop to a 4K monitor, the E-Marker informs the host device which internal wires can be reallocated for video output.[1][3]

Without an E-Marker confirming DisplayPort compatibility, the monitor will remain blank, even if the physical copper wires inside the cable are perfectly capable of carrying the video signal. The chip's programming is absolute.[4][8]

Safety certifications further complicate the landscape. Cables that undergo official USB-IF testing receive a certification logo and a digitally signed E-Marker. When plugged into a strict host device, an unsigned or counterfeit E-Marker can trigger a safety lockout, reducing charging speeds to the 15-watt baseline.[6][8]

The physical reality of copper wire means the perfect USB-C cable, one that is three meters long, charges at 240 watts, transfers data at 40 Gbps, and costs less than $20, cannot exist. Consumers must read the E-Marker specifications printed on the packaging to match the cable's physical limitations to their specific hardware needs.[2][5]
