The Hall-Petch Equation: How Grain Size Dictates the Strength of Crystalline Materials

Classical metallurgy textbooks and introductory engineering courses frequently make a straightforward claim: to make a metal stronger, you simply shrink its internal grains. The logic dictates that because smaller grains create more internal walls to block the movement of structural defects, the material's yield strength will increase indefinitely as the grains get smaller. But evidence from modern nanocrystalline research directly contradicts this absolute rule. When grains shrink below a critical threshold of roughly 10 to 15 nanometers, the metal stops hardening and actually begins to soften, a phenomenon that forces a complete re-evaluation of how ultra-strong materials are engineered.[3][4]

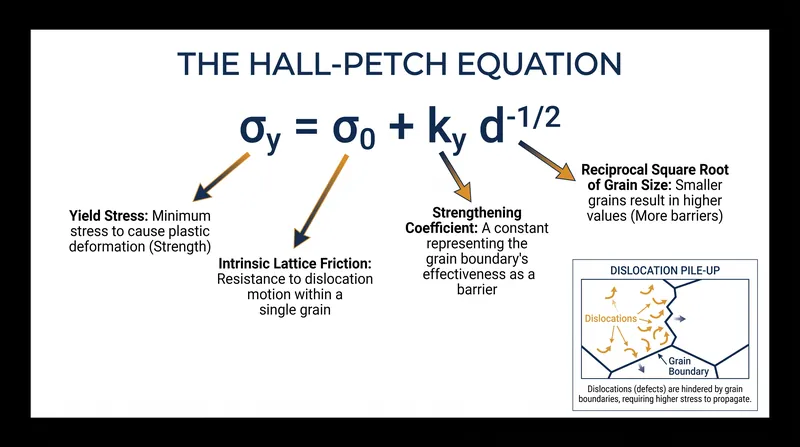

The mechanism behind the classical rule is defined by the Hall-Petch equation, formulated independently by E.O. Hall in 1951 and N.J. Petch in 1953. The formula, σy = σ0 + ky d^(-1/2), states that a material's yield strength (σy) is equal to its inherent friction stress (σ0) plus a material-specific constant (ky) multiplied by the inverse square root of the average grain diameter (d). This mathematical relationship has been the bedrock of structural engineering for over 70 years.[1][7]

To understand how this works, one must look at how metals deform at the atomic level. Crystalline materials are not perfectly uniform; they contain microscopic irregularities called dislocations. When stress is applied to a metal—whether it is a steel beam supporting a bridge or an aluminum panel on an aircraft—these dislocations move through the crystal lattice, causing the material to yield or permanently deform.[6]

Grain boundaries, which are the interfaces where crystals of different orientations meet, act as physical barricades to this movement. According to the International Materials Reviews survey covering "six decades of the Hall–Petch effect," as dislocations move, they pile up against these boundaries. A smaller grain size means more boundaries per unit volume, which creates more frequent pile-ups and requires significantly more applied stress to force the dislocations to cross into the next grain.[2][8]

By controlling the cooling rate of molten metals or applying severe plastic deformation, metallurgists have reliably engineered smaller grains to produce stronger materials. The Proceedings of the Royal Society notes that this boundary strengthening mechanism has been successfully applied across a vast array of pure metals and complex alloys, driving decades of industrial advancement.[5][7]

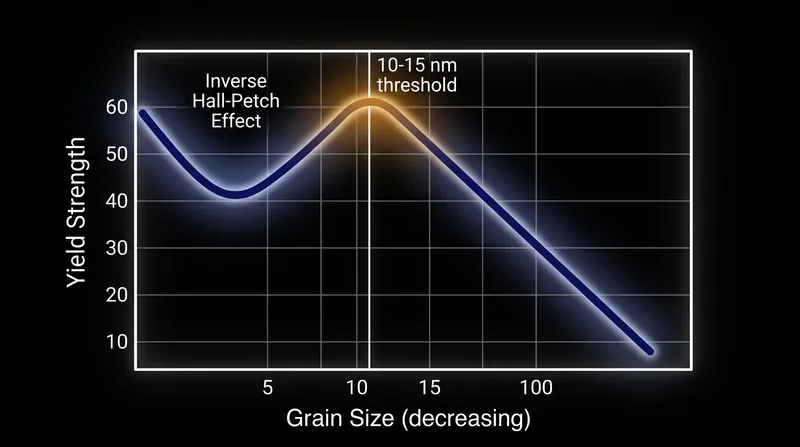

However, the continuum model breaks down at the extreme nanoscale. Researchers publishing in the Philosophical Magazine have documented a "reverse grain-size dependence" in nanocrystalline metals. When the grain diameter drops below approximately 10 to 15 nanometers, the traditional mechanism of dislocation pile-up ceases to function because the grains are simply too small to house multiple dislocations simultaneously.[3][4]

Instead of dislocations moving through the grains, the deformation mechanism shifts entirely to the boundaries themselves. At this scale, the sheer volume of grain boundaries allows the grains to slide past one another under stress—a process known as grain boundary sliding. The rigid walls that once blocked deformation become the very avenues that facilitate it.[3][4]

This shift in physics means that the material actually becomes softer and more ductile as the grains continue to shrink, creating an inverse Hall-Petch effect. The discovery of this threshold has profound implications for the development of advanced nanomaterials, proving that there is a fundamental, physical limit to how much a metal can be strengthened purely through grain refinement. To push beyond this limit, materials scientists must now look to entirely different strengthening mechanisms, such as introducing nanoscale precipitates or engineering complex multi-phase microstructures.[4][8]
