The GroEL/GroES Double-Chambered Barrel: How ATP Hydrolysis Folds Misfolded Polypeptides

For years, structural biologists and biochemists have debated the exact role of the GroEL/GroES chaperonin complex in rescuing misfolded proteins. One camp, championed by researchers studying the thermodynamics of the system, argues that GroEL acts as an active annealing machine. In this view, the energy derived from ATP hydrolysis is directly used to forcibly unfold trapped, misfolded intermediates, giving them another chance to reach their native state. Conversely, another faction contends that the chaperonin is merely a passive "Anfinsen cage." According to this model, the complex simply provides a sequestered, hydrophilic environment where a polypeptide can fold spontaneously without the risk of aggregating with other cellular proteins, and ATP hydrolysis merely acts as a mechanical timer to eject the substrate.[1][4]

The stakes of this debate extend far beyond bacterial biochemistry. The GroEL/GroES system, a highly conserved molecular machine found in bacteria and structurally mirrored by the HSP60/HSP10 complex in human mitochondria, is the cell's primary defense against protein aggregation. When proteins misfold, they expose sticky hydrophobic regions that clump together, a process implicated in severe human pathologies including Alzheimer's and Parkinson's diseases. Understanding whether the cell's dedicated rescue machinery actively remolds these toxic shapes or simply quarantines them dictates how future therapeutics might be designed to enhance this natural defense.[9][10]

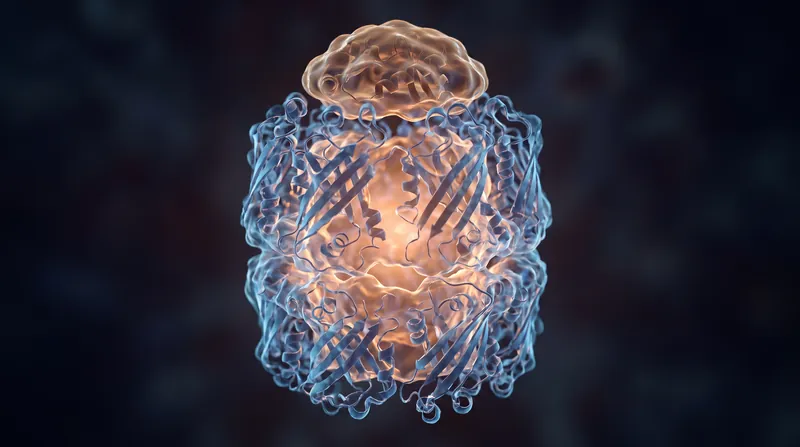

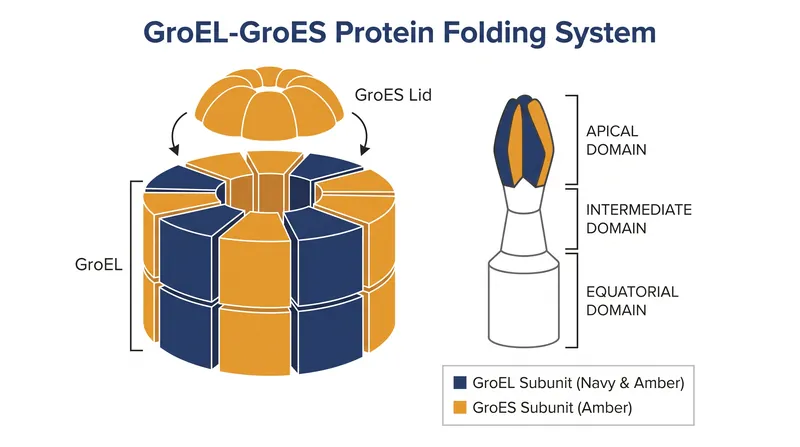

The physical structure of the GroEL/GroES complex is a marvel of nanoscale engineering. As determined by Paul Sigler and co-workers in their landmark 1997 crystal structure, GroEL forms a massive, 14-subunit double-ring cylinder. Each of the two heptameric rings stacks back-to-back, creating a central cavity. Each individual subunit is divided into three distinct domains: an equatorial domain that binds ATP, an intermediate hinge region, and an apical domain that captures the misfolded protein. The entire barrel stands ready to receive a substrate, but it cannot complete its folding cycle without its lid, the seven-subunit GroES co-chaperonin.[3][9]

The cycle begins when a misfolded or partially folded polypeptide enters the open ring of GroEL. The apical domains of the GroEL ring expose a continuous rim of hydrophobic amino acid residues. Because misfolded proteins inappropriately expose their own hydrophobic cores, they are immediately captured by this sticky rim. This initial binding is remarkably tight; biochemical analyses by F.U. Hartl and colleagues demonstrated that free GroEL can retard the spontaneous folding of the model protein barnase by a factor of 400. At this stage, the substrate is firmly anchored, preventing it from interacting with other proteins and forming irreversible aggregates.[4][7]

The critical transition occurs with the binding of ATP and the GroES lid. Seven molecules of ATP bind to the equatorial domains of the substrate-containing cis ring. This nucleotide binding triggers a dramatic allosteric shift. The intermediate domains act as hinges, swinging the apical domains upward and outward by 60 degrees and twisting them by 90 degrees. This massive conformational change, which doubles the volume of the central cavity, simultaneously hides the hydrophobic binding patches and exposes a highly hydrophilic interior lining.[2][3]

"GroES binding is accompanied by a large conformational change at the apical domain of the cis ring leading to a 2-fold enlargement of the central binding cavity," notes a detailed 2001 structural analysis published in Chemical Reviews. As the hydrophobic grips are removed, the misfolded protein is forcibly ejected from the rim and dropped into the newly formed, water-friendly chamber. Now encapsulated beneath the GroES lid, the protein finds itself in a solitary confinement cell optimized for folding.[3]

Inside this Anfinsen cage, the polypeptide has approximately 10 to 15 seconds to fold. This duration is strictly governed by the ATPase activity of the GroEL equatorial domains. The hydrolysis of the seven ATP molecules into ADP acts as a molecular timer. Once the ATP is consumed, the structural affinity of the cis ring for the GroES lid weakens. However, the lid does not immediately pop off. It requires a signal from the opposite trans ring to initiate the release.[5][6]

The allosteric communication between the two rings ensures that the machine operates efficiently. When a new misfolded protein and seven new ATP molecules bind to the trans ring, a structural signal is transmitted across the equatorial interface. This signal prompts the cis ring to release its ADP and the GroES lid. The chamber opens, and the encapsulated protein—whether successfully folded into its native state or still partially misfolded—is ejected back into the cellular environment. If the protein remains misfolded, it will rapidly rebind to an open GroEL ring to undergo another cycle.[3][8]

Returning to the core disagreement, evidence has mounted supporting nuanced versions of both the active and passive models. Researchers advocating for the active annealing mechanism point to the mechanical forces exerted during the conformational shift. When the apical domains twist and elevate upon GroES binding, they physically stretch the bound polypeptide before releasing it into the chamber. This stretching action can untangle kinetically trapped intermediates, effectively using the energy of ATP binding to overcome energy barriers that the protein could not surmount on its own.[4][7]

"The molecular chaperone acts as a combination of folding cage and an annealing machine," concluded a pivotal study by M.K. Hayer-Hartl and colleagues. They observed that slow-folding proteins enter cycles of annealing and folding, where the transient release and rebinding of GroES pump successive transitions from weaker-binding states to tighter-binding states. This iterative process suggests that the machine actively works on the substrate, rather than merely waiting for it to fold.[4]

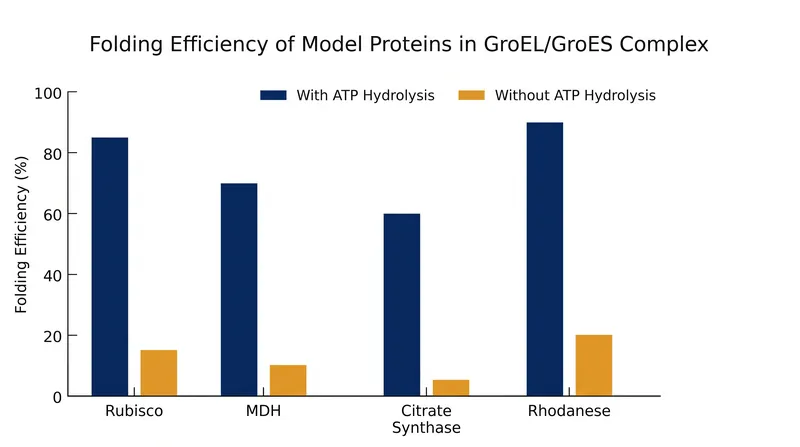

Conversely, proponents of the passive cage model emphasize that the actual folding process occurs while the protein is free-floating inside the hydrophilic chamber, disconnected from the GroEL walls. They argue that the energy of ATP hydrolysis is not transferred to the folding protein but is solely expended on the conformational changes required to cycle the GroES lid. In fact, experiments have shown that under certain artificial conditions, GroES binding and release can drive GroEL-mediated folding even in the absence of ATP hydrolysis, provided ADP is present to facilitate the structural shifts.[1][2]

"We conclude that neither the energy of ATP hydrolysis nor the allosteric coupling of the two GroEL rings is directly required for GroEL/GroES-mediated protein folding," researchers reported in The EMBO Journal. "The minimal mechanism of the reaction is the binding and release of GroES to a polypeptide-containing ring of GroEL, thereby closing and opening the GroEL folding cage." In this view, ATP hydrolysis is an evolutionary optimization that ensures the cycle proceeds at a physiologically relevant rate, rather than a thermodynamic requirement for the folding event itself.[1]

The synthesis of these views suggests that GroEL/GroES is a highly adaptable machine that scales its intervention based on the substrate. For small, fast-folding proteins, the complex may indeed act primarily as a passive aggregation shield. But for larger, more complex proteins prone to deep kinetic traps, the mechanical stretching during encapsulation and the iterative cycles of binding and release provide an active, energy-driven rescue mechanism. This dual capability makes the chaperonin an indispensable component of cellular homeostasis.[6][10]

As structural biology advances with tools like cryo-electron microscopy, the dynamic fluctuations of the GroEL/GroES complex are coming into sharper focus. The ability to visualize these machines in motion, rather than just in static crystal states, promises to resolve the remaining ambiguities about how mechanical force and chemical environment synergize to solve the protein folding problem. The exact parameters of this nanoscale engine will ultimately dictate how scientists engineer synthetic chaperones for medical interventions.[5][10]
