The 50-Foot Rule: How the National Electrical Code Governs EV Charging Station Placement and Wiring

The transition to electric mobility is fundamentally reshaping residential and commercial electrical infrastructure, turning the garage into a high-draw power center. At the heart of this shift is the National Electrical Code (NEC), published by the National Fire Protection Association (NFPA) as NFPA 70. The NEC governs the safe installation of electrical wiring across the United States, and its Article 625 specifically regulates Electric Vehicle Power Transfer Systems.

As drivers adopt higher-capacity Level 2 chargers to replenish larger battery packs overnight, the physical placement of these chargers has become a critical engineering constraint. The code imposes strict spatial limits on these installations, most notably through a 50-foot threshold that dictates both safety hardware and conductor sizing.[1][3]

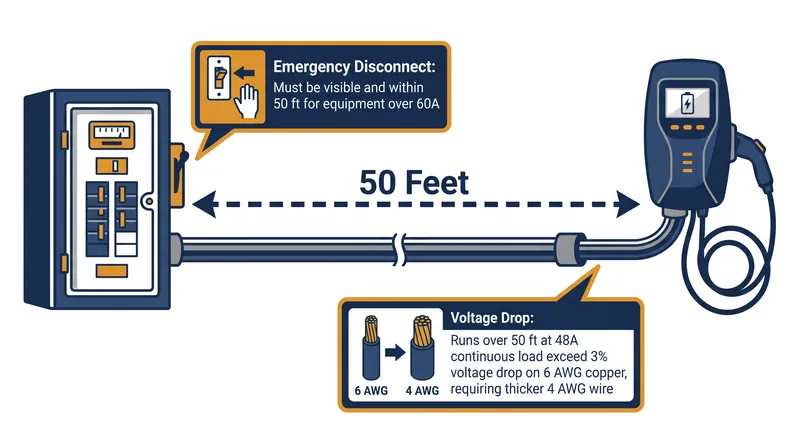

The first application of the 50-foot rule involves emergency shutoff capabilities. Under NEC Section 625.43, any permanently installed electric vehicle supply equipment (EVSE) rated over 60 amps or 150 volts to ground must have a dedicated disconnecting means. Crucially, this disconnect must be installed "in sight from" the charging equipment.

Article 100 of the NEC strictly defines "in sight from" as being visible and not more than 50 feet distant from the equipment it controls. If a commercial or high-powered residential charger is installed 55 feet away from the main electrical panel, or around a corner where the panel is obscured, the installer must mount a separate, lockable disconnect switch within that 50-foot radius to allow first responders to safely cut power during an emergency.[1][3]

The second, and often more costly, application of the 50-foot threshold relates to voltage drop. The NEC classifies electric vehicle charging as a continuous load, defined as any load expected to operate for three hours or more.

Because EV batteries take hours to replenish, Section 625.42 mandates that the branch circuit conductors and overcurrent protection devices be sized at 125 percent of the charger's maximum continuous output. A standard 48-amp Level 2 charger, which can deliver roughly 42 miles of range per hour, therefore requires a 60-amp circuit breaker and wiring rated for at least 60 amps of continuous duty.[1][2][4]

While 6 AWG copper wire is legally rated to carry 65 amps at standard 75°C terminations—comfortably clearing the 60-amp requirement for a 48-amp charger—its performance degrades over distance. The NEC includes an informational note in Section 210.19(A) recommending that branch circuits be sized to prevent a voltage drop exceeding 3 percent at the farthest outlet.

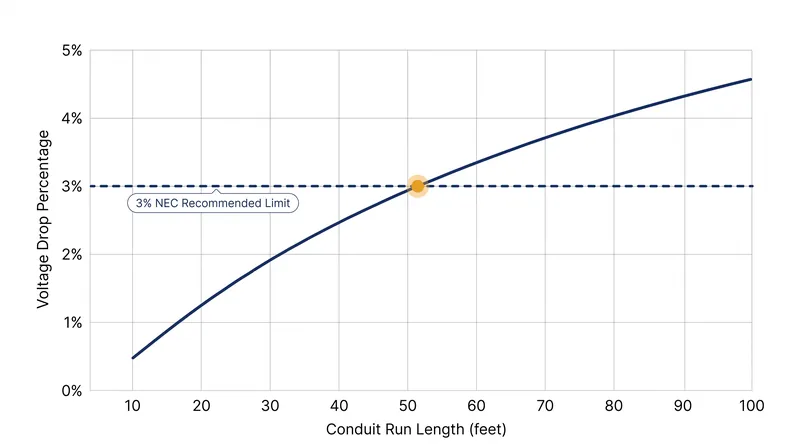

When a 48-amp continuous load is pulled through 6 AWG copper at 240 volts, the resistance of the wire causes the voltage to drop. At exactly 52 feet of one-way run length, that voltage drop breaches the 3 percent threshold.[1][5]

Crossing this 50-foot boundary forces a cascade of design changes. To maintain acceptable voltage at the charger terminals and prevent the vehicle's onboard management system from throttling the charge rate due to voltage sag, electricians must upsize the conductors to 4 AWG copper.

This heavier gauge wire is significantly more expensive per foot, is harder to pull through conduit, and often requires larger conduit diameters. For homeowners with detached garages or commercial fleet operators installing chargers across expansive parking lots, a run of 100 or 150 feet can easily double the material costs of the installation.[1][5]

The interaction between the continuous load multiplier and the distance limit creates a rigid design envelope. Installers cannot simply swap in a larger breaker to push more power down a long, thin wire; the breaker protects the wire from melting, and the wire must be thick enough to deliver the voltage without excessive thermal loss.

As the U.S. Department of Energy notes, most EV charging happens at home, making these residential electrical upgrades a widespread necessity. Understanding the 50-foot rule allows property owners to strategically place their charging stations closer to existing electrical panels, minimizing conduit runs, avoiding mandatory wire upsizing, and keeping installation costs manageable.[2][5]

Beyond the immediate cost of copper, the 50-foot rule influences the broader architecture of charging networks. In multi-family dwellings and commercial parking structures, centralized electrical rooms are rarely within 50 feet of every parking space.

This geographic reality forces developers to install distributed subpanels closer to the charging pedestals, effectively resetting the distance measurement and keeping branch circuits short. By moving the high-voltage distribution closer to the vehicles, engineers can use standard 6 AWG wire for the final run to the charger, satisfying both the ampacity requirements and the voltage drop recommendations.[1][4]

The enforcement of these rules falls to local authorities having jurisdiction, who inspect installations against the NEC standards adopted by their state or municipality. While the 3 percent voltage drop is technically an informational note rather than a hard mandate in some jurisdictions, inspectors frequently enforce it to ensure the equipment operates as designed.

A charger starved of voltage draws more current to compensate, generating excess heat at the terminals and risking premature failure. By adhering to the 50-foot threshold, the electrical industry ensures that the rapid expansion of EV infrastructure remains fundamentally safe and reliable.[1][3]
